Açıklama

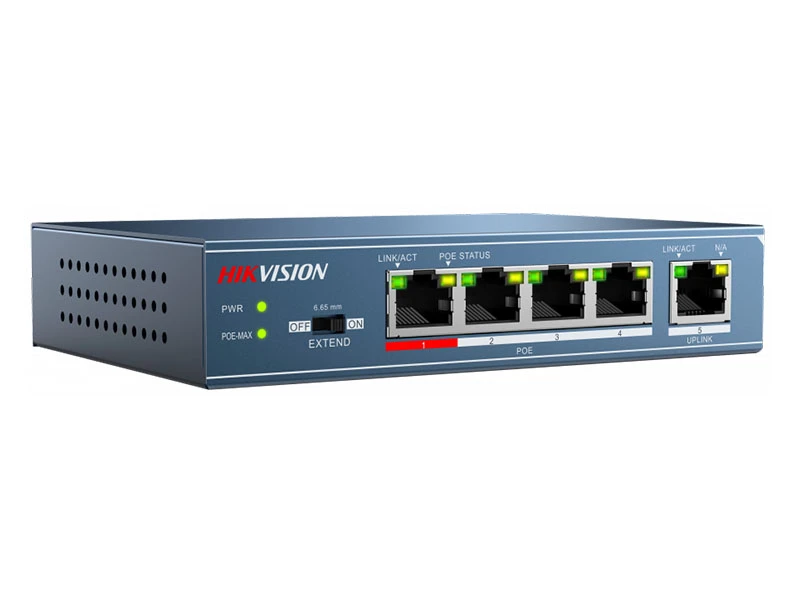

Hikvision DS 3E0105P E/M PoE Switch

Ports 1 to 4 support IEEE 802.3af standard.
When the switch is in EXTEND mode and the data rate is 10 Mbps, ports 1 to 4 support long-distance data transmission up to 250 meters.
All ports support 6 kV lightning protection.
This switch supports Auto MDI/MDIX.
This switch supports store-and-forward.
This switch supports MAC address auto learning and auto aging.
This switch supports smart cache optimization.
This switch supports desktop / wall mounting.

PoE : PoE

Port Hızı : 100 Mbps

Yönetilebilirlik : Yönetilemez

Aktarım Port Sayısı : 1

Aktarım Türü : Rj45

Montaj Tipi : Wall Mount

PoE Port Sayısı : Tooltip

4 Port

PoE Güç Bütçesi : 50-130 Watt

Port
Port amount	5
Port type	RJ45, 10/100 Base-T(X)
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding method	Store-and-forward
Flow control	Back-pressure flow control in IEEE 802.3x full duplex
Priority queue	2
MAC address table	1 K
QoS	Supported on ports 1 and 2.
Switching capacity	1 Gbps
Packet forwarding rate	0.744 Mpps
Physical appearance/structure
Appearance	0.6 mm sheet of galvanized metal without electric fan
Weight	0.141 kg
Dimension	100 mm × 100 mm × 26 mm
Mounting type	Desktop / wall mounting
Environment
Operating temperature	(0 - 40) °C
Storage temperature	(-40 - 70) °C
Operating humidity	(10 – 90) % RH, non-condensing
Storage humidity	(5 – 90) % RH, non-condensing
Power supply
Power input	48 V DC, 0.8 A
Reverse connection protection	Supported
Power consumption	< 38 W
Other parameters
LED indicator	Link/Act LED indicators, PoE LED indicator,
	Power LED indicator
