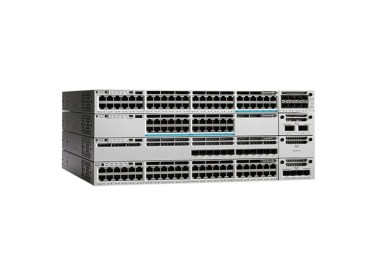

Cisco WS-C3850-48F-E PoE+ Switch
Teknik Özellikler
| model info: | WS-C3850-48F-E |
| enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 (POE+) |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
| ● Management console port: RJ-45-to-DB9 cable for PC connections | |
| Available PoE Power | 800W |
| Switching Capacity | 176Gbps |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 130.95Mpps |
| FNF (Flexible NetFlow) entries | 48,000 flows |
| Maximum VLANs IDs | 4 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Wireless | |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 40Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | ● C3850-NM-4-1G: 4 x 1G uplinks network module |
| ● C3850-NM-4-10G: 4 x 10G uplinks network module | |
| ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module | |
| Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
| ●STACK-T1-1M StackWise stacking cable with a 1.0 m length | |
| ●STACK-T1-3M StackWise stacking cable with a 3.0 m length | |
| Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length |
| ●CAB-SPWR-150CM stack power cable with a 150CM length | |
| Power supply | PWR-C1-1100WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 143.77 (Max) |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 Cm) |
| Depth | 19.2 Inches (48.8 Cm) |
| Height | 1.75 Inches (4.45 Cm) |
| Weight | 17.6 Pounds (8.0Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 241,05 |
| Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco |
| ● IEEE 802.1p CoS Prioritization | |
| ● IEEE 802.1Q VLAN | |
| ● IEEE 802.1s | |
| ● IEEE 802.1w | |
| ● IEEE 802.1X | |
| ● IEEE 802.1X-Rev | |
| ●IEEE 802.11 | |
| ● IEEE 802.1ab (LLDP) | |
| ● IEEE 802.3ad | |
| ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports | |
| ● IEEE 802.3 10BASE-T | |
| ● IEEE 802.3u 100BASE-TX | |
| ● IEEE 802.3ab 1000BASE-T | |
| ● IEEE 802.3z 1000BASE-X | |
| ● RMON I and II standards | |
| ● SNMP v1, v2c, and v3 | |
| ●IEEE 802.3af and IEEE 802.3at | |
| System software / license | |
| System software | IOS IP Services |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Access Point Licenses | ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) |
| ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) | |
| ●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license) | |
| ●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) | |
| features | ●EEM ● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols |
| ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ | |
| ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override | |
| ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues | |
| ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues | |
| ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and | |
| DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency | |
| ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite | |
| ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow | |
| Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard |
| ●The Unicast Reverse Path Forwarding (uRPF) | |
| ● Bidirectional data support on a SPAN ● User authentication | |
| ● Private VLAN ●Router and VLAN ACLs ● complete identity and security | |
| ● Multidomain authentication ● MAC address notification | |
| ● IGMP filtering ● Cisco security VLAN ACL | |
| ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) | |
| ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae | |
| ● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs | |
| ● Bridge protocol data unit (BPDU) Guard | |
| ● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security | |
| Management | ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB |
| ●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB | |
| ●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB | |
| ●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB | |
| ●CISCO-CIRCUIT-INTERFACE-MIB | |
| ●CISCO-ENTITY-VENDORTYPE-OID-MIB | |
| ●CISCO-CONTEXT-MAPPING-MIB | |
| ●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB | |
| ●CISCO-EIGRP-MIB | |
| ●CISCO-EMBEDDED-EVENT-MGR-MIB | |
| ●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB | |
| ●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB | |
| ●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB | |
| ●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB | |
| ●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB | |
| ●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB | |
| ●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB | |
| ●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB | |
| ●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB | |
| ●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB | |
| ●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB | |
| ●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB | |
| ●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB | |
| ●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB | |
| ●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB | |
| ●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB | |
| ●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB | |
| ●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB | |
| ●CISCO-SMART-INSTALL-MIB | |
| ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB | |
| ●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB | |
| ●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB | |
| ●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB | |
| ●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB | |
| ●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB | |
| ●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB | |
| ●LLDP-MIB ●NOTIFICATION-LOG-MIB | |
| ●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB | |
| ●POWER-ETHERNET-MIB ●RMON2-MIB | |
| ●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB | |
| ●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB | |
| ●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB | |
| ●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB | |
| ●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB | |
| ●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB | |
| ●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB | |
| ●CISCO-LWAPP-CLIENT-ROAMING-MIB | |
| ●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB | |
| ●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB | |
| ●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB | |
| ●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB | |
| ●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB | |
| ●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB | |
| ●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB | |
| ●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB | |
| ●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB | |
| ●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB | |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
| Environmental Ranges | |
| With AC power supply Operating environment and altitude | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| With DC power supply Operating environment and altitude (NEBS) | |
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
| Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 800 Watt >
