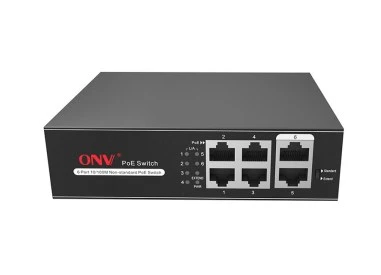

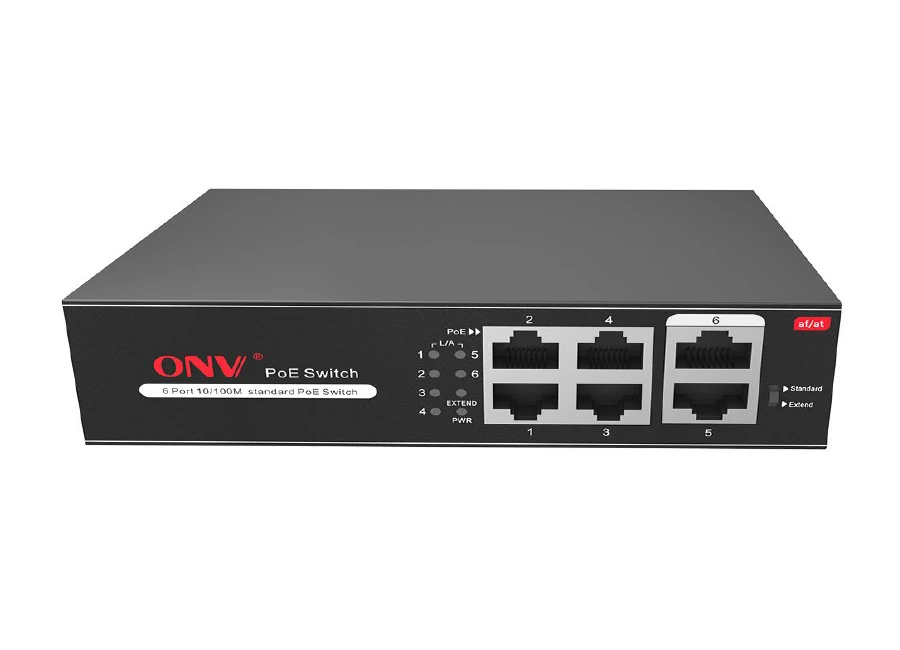

ONV ONV-H1064PL PoE Switch
Özellikler
- Unmanaged PoE switch with 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports.
- Port 1-4 can support IEEE802.3af/at PoE standard. Adjust function switch, Port 1-4 can support 10M/250m transmission.
- Built-in 65W power supply.Unmanaged PoE switch with 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports.
- Port 1-4 can support IEEE802.3af/at PoE standard.
- Adjust function switch, Port 1-4 can support 10M/250m transmission.
- Built-in 65W power supply.
Teknik Özellikler
| Model | ONV-H1064PL |
| Interface Characteristics | |
| Fixed Port | 4*10/100Base-TX PoE ports (Data/Power) |
| 2*10/100Base-TX uplink RJ45 ports (Data) | |
| Ethernet Port | Port 1-6/1-10 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
| Functional Switch | 1*(Extend+VLAN) |
| Note: when the switch state changes, it must be restarted before the PoE switch function can take effect | |
| Twisted Pair Transmission | 10BASE-TX: Cat5 or later UTP(≤250 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
| IEEE802.3u 100Base-TX, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 1.6Gbps (Non-blocking) |
Forwarding Rate@64byte | 0.98Mpps |
| MAC | 1K |
| Buffer Memory | 768K |
| Jumbo Frame | 9.6K |
| LED Indicator | Power:PWR (Green), network : L/A(Yellow), PoE : PoE (Green) |
| Functional switch: EXTEND (Green) | |
| PoE & Power Supply | |
| PoE Port | Port 1 to 4 |
| Power Supply Pin | Default 1/2(+), 3/6(-) |
| Max Power Per Port | 30W, IEEE802.3af/at |
| Total PWR / Input Voltage | 65W/ (AC100-240V) |
| Power Consumption | Standby<3W, Full load <65W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz 1A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing |
| Dimension (L*W*H) | 140*115*40mm |
| Net /Gross Weight | <0.6kg / <1kg |
| Installation | Desktop, wall-mounted |
| Certification & Warranty | |
| Lightning Protection / Protection Level | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN60950 |
| FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
Çalışma Mesafesi : 250 Mt.
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
