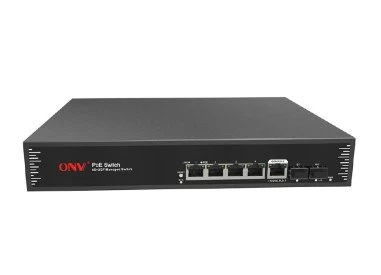

ONV ONV-POE33064P PoE Switch
Özellikler
Teknik Özellikler
| Model | ONV-POE33064P |
| Interface Characteristics | |
| Fixed Port | 4*10/100/1000Base-T PoE port (Data/Power) |
| 2*10/100/1000Base-T uplink RJ45 ports (Data) | |
| Ethernet Port | 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption. |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
| IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 16Gbps (Non-blocking) |
Forwarding Rate@64byte | 8.93Mpps |
| MAC | 8K |
| Buffer Memory | 2M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR (Green), Data:Link(Yellow), PoE: PoE (Green) |
| Reset Switch | Yes, One-button factory reset |
| PoE & Power Supply | |
| PoE Port | Port 1 to 4 IEEE802.3af/at @ POE |
| Power Supply Pin | Default 1/2(+),3/6(-), Optional 4/5(+),7/8(-) |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 65W/(DC52V) |
| Power Consumption | Standby<5W, Full Load<65W |
| Power Supply | External power supply |
| AC100~240V 50-60Hz 1.1A | |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 118*95*28mm |
| Net /Gross Weight | <0.35kg /<1.0kg |
| Installation | Desktop, Wall-mounted |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
| Warranty | 3 years, lifelong maintenance. |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Wall Mount
Desk Mount
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
