Açıklama

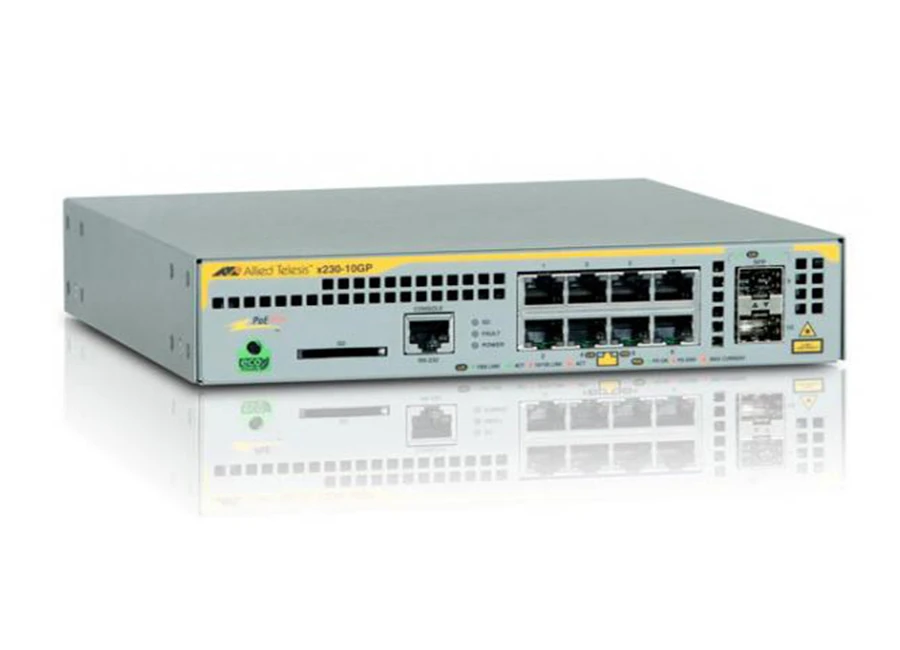

Allied Telesis AT x230 10GP 10/100/100 PoE Switch
Özellikler
- Allied Ware Plus feature-rich operating system
- CLI and Web Interface
- Allied Telesis Management Framework
- Ethernet Protection Switched Ring
- Power over Ethernet (PoE+)
- Access Control Lists (ACL)
- Industry-leading Quality of Service (QoS)
- sFlow
- Active Fiber Monitoring
- Network Access Control (NAC)
- Tri-Authentication
- Voice VLAN
- IPv6 management
- Energy Efficient Ethernet (EEE)
Teknik Özellikler
| Dimensions & Weight |
| Depth: |
| 10.8 in |
| Height: |
| 1.7 in |
| Weight: |
| 4.63 lbs |
| Width: |
| 8.3 in |
| Environmental Parameters |
| Humidity Range Operating: |
| 5 - 90% (non-condensing) |
| Humidity Range Storage: |
| 5 - 95% (non-condensing) |
| Max Operating Temperature: |
| 122 °F |
| Max Storage Temperature: |
| 158 °F |
| Min Operating Temperature: |
| 32 °F |
| Min Storage Temperature: |
| -13 °F |
| Flash Memory |
| Installed Size: |
| 64 MB |
| Header |
| Brand: |
| Allied Telesis |
| Compatibility: |
| PC |
| Manufacturer: |
| Allied Telesis |
| Model: |
| X230-10GP |
| Packaged Quantity: |
| 1 |
| Product Line: |
| Allied Telesis AT |
| Interface Provided |
| Comments: |
| 4 ports (PoE+) / 8 ports (PoE) |
| Connector Type: |
| RJ-45 |
| Qty: |
| 8 |
| Type: |
| 1000Base-T |
| Comments: |
| Management |
| Qty: |
| 1 |
| Type: |
| Console |
| Comments: |
| Uplink |
| Connector Type: |
| SFP |
| Qty: |
| 2 |
| Miscellaneous |
| Authentication Method: |
| Extensible Authentication Protocol (EAP) , RADIUS , Secure Shell (SSH) , Secure Shell v.2 (SSH2) , TACACS+ |
| Color Category: |
| Gray |
| Compliant Standards: |
| AS/NZS 60950-1 , CAN/CSA C22.2 No. 60950-1-03 , China RoHS , cUL , EN 60825-1 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC Class A certified , RoHS , UL , UL 60950-1 , VCCI Class A |
| Encryption Algorithm: |
| DES , MD5 , PEAP , RSA , SHA-1 , SSL 2.0 , SSL 3.0 , TLS 1.0 , Triple DES , TTLS |
| Height (Rack Units): |
| 1 |
| Rack Mounting Kit: |
| Optional |
| Networking |
| Advanced Switching: |
| Layer 2+ |
| Compliant Standards: |
| IEEE 802.1ab (LLDP) , IEEE 802.1AX , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1v , IEEE 802.1w , IEEE 802.1x , IEEE 802.2 , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ac , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3at , IEEE 802.3az , IEEE 802.3u , |
| IEEE 802.3x , IEEE 802.3z |
| Features: |
| 1.5MB packet buffer , Access Control List (ACL) support , ARP support , DHCP client , DHCP snooping , DiffServ support , Dynamic ARP Inspection (DAI) , Energy Efficient Ethernet , Enviromental monitoring , Flow control , Full duplex capability , IGMP snooping , IPv6 support , |
| Loop prevention , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , Network Access Control (NAC) , Packet storm protection , Per-VLAN Spanning Tree Plus (PVST+) , Port mirroring , Quality of Service (QoS) , Rapid Spanning Tree Protocol (RSTP) support , sFlow |
| SNMP trap , SNTP support , Storm Control , STP Root Guard , Strict Priority Queuing (SPQ) , Syslog support , Tagged VLAN , Trivial File Transfer Protocol (TFTP) support , VLAN support , Weighted Round Robin (WRR) queuing |
| Form Factor: |
| Desktop , Rack-mountable , Wall-mountable |
| Jumbo Frame Support: |
| 10KB |
| MAC Address Table Size: |
| 16K entries |
| Manageable: |
| Yes |
| PoE Budget: |
| 120 W |
| Ports Qty: |
| 8 |
| Power Over Ethernet (PoE): |
| PoE+ |
| Remote Management Protocol: |
| CLI , HTTP , HTTPS , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , SSH , Telnet |
| Routing Protocol: |
| CIDR |
| Subcategory: |
| Network hubs and switches |
| Subtype: |
| Gigabit Ethernet |
| Type: |
| Switch |
| Performance |
| Type: |
| Switching capacity |
| Value: |
| 20 Gbps |
| Type: |
| Forwarding performance |
| Value: |
| 14.9 Mpps |
| Ports |
| Qty: |
| 8 |
| Type: |
| 10/100/1000 (PoE+) |
| Ports (2nd) |
| Qty: |
| 2 |
| Type: |
| SFP (mini-GBIC) |
| Power Device |
| Frequency Required: |
| 50/60 Hz |
| Nominal Voltage: |
| AC 120/230 V |
| Type: |
| Internal power supply |
| RAM |
| Installed Size: |
| 256 MB |
| Technology: |
| DDR SDRAM |
| Service |
| Support Details Full Contract Period: |
| Lifetime |
| Support Details Type: |
| Limited warranty |
| Support Details Full Contract Period: |
| 5 years |
| Service & Support |
| Type: |
| Limited lifetime warranty |
| Service & Support Details |
| Component (Networking): |
| Power supply and fans |
| Slot Provided |
| Free Qty: |
| 1 |
| Total Qty: |
| 1 |
| Type: |
| SD Memory Card |
Allied Telesis AT x230 10GP 10/100/100 PoE Switch PDF Dosyası1.79 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2 Plus
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
