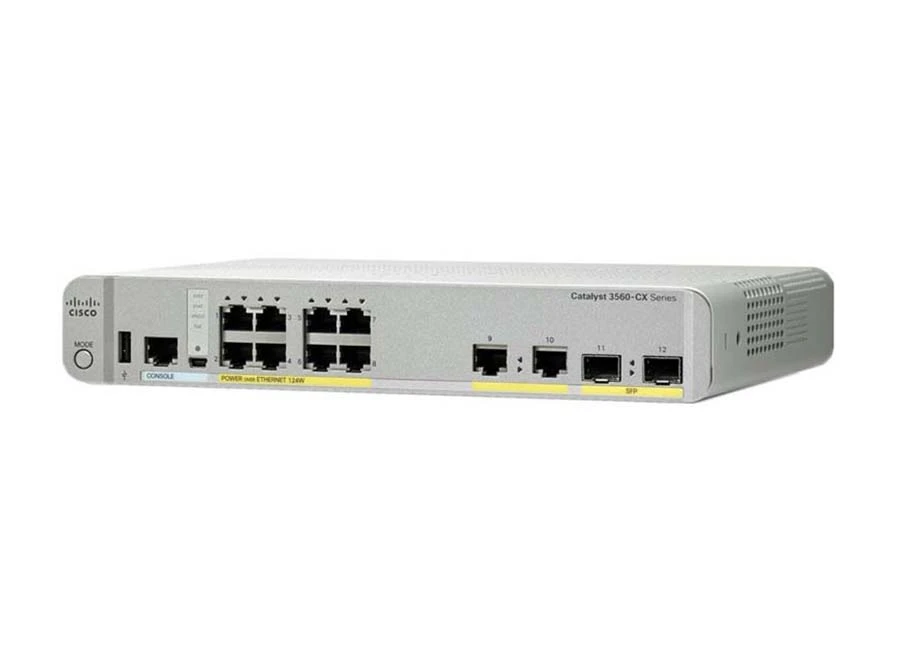

Cisco Catalyst 3560CX 8PC S PoE Switch

Teknik Özellikler

WS-C3560CX-8PC-S
Ethernet Ports 8 x 10/100/1000 Gigabit Ethernet
PoE  8 PoE+
Output Ports
Available  240W
PoE Power
Uplinks 2 x 1G copper plus
2 x 1G SFP
Default Software IP Base (IP Services with RTU License)
Powering Option Internal power supply
Available PoE Power (W) 240W
Can Switch Be Powered with Uplinks? No
Forwarding Bandwidth 16 Gbps
Switching Bandwidth (full-duplex capacity) 32 Gbps
Flash memory 128 MB
Memory DRAM 512 MB
Max VLANs 1023
VLAN IDs 4000
Maximum transmission unit (MTU) Up to 9000 bytes
Jumbo frames 9198 bytes
Forwarding rate 64 Byte Packet  17.9 mpps
Dimensions 1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3cm)
(H x W x D)
Weight 5.0 lb (2.27 Kg)
Operating* temperature up to 5000 ft (1524 m) -5°C to +45°C (+23°F to +113°F)
Operating* temperature up to 10,000 ft (3048 m) -5°C to +45°C (+23°F to +113°F)
Storage temperature up to 15,000 ft (4572 m) -25°C to +70°C (-13°F to +158°F)
Operating altitude Up to 3048 m (Up to 10,000 ft)
Storage altitude Up to 4000 m (Up to 15,000 ft)
Operating relative humidity 5% to 95% noncondensing
Storage relative humidity 5% to 95% noncondensing
MTBF 569,53
Environmental Reduction of Hazardous Substances (ROHS) 6
Telco Common Language Equipment Identifier (CLEI) code

pdfCisco Catalyst 3560CX 8PC S PoE Switch Pdf Dosyası870.98 KB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : Tooltip 8 Port
PoE Güç Bütçesi : 200-400 Watt
