Açıklama

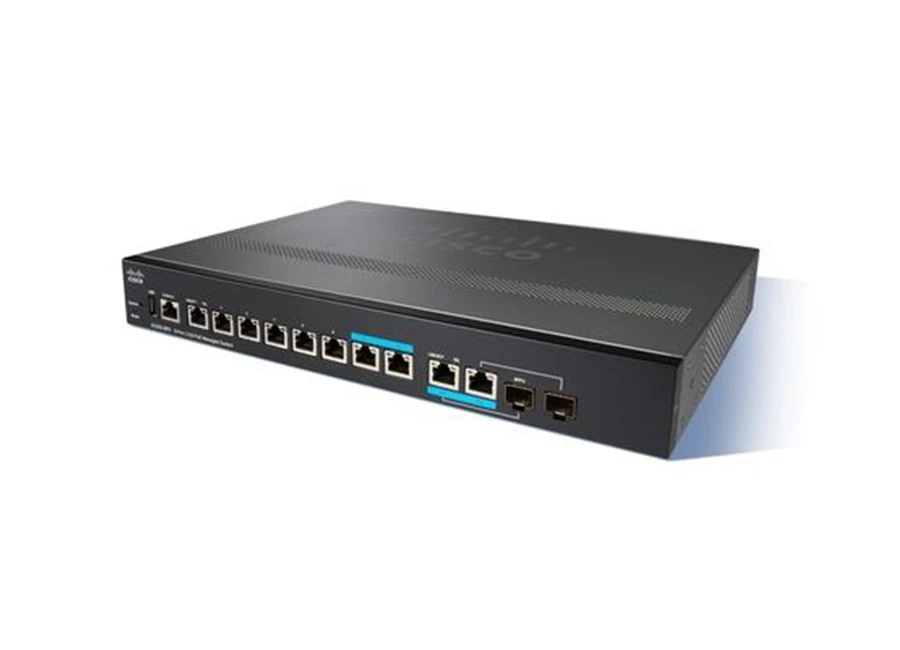

Cisco SG350 8PD PoE Switch

Özellikler

6 Port 10/100/1000 Gigabit Switch
2 x 2.5G ports
2 combo mini-GBIC ports
8 Ports Support 802.3af PoE, 802.3at PoE+, and 802.3xx 60W PoE.
PoE Budget of 124 Watts
External Power Supply

Teknik Özellikler

General
Device Type	Switch - 8 ports - L3 - Managed
Enclosure Type	Desktop 1U
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE) + 2 x combo Gigabit GBIC
Performance	Switching capacity (64-byte packet size): 46.13 Mpps ¦ Switching capacity: 62 Gbps
Capacity	MSTP instances: 16 ¦ Active VLANs: 4096 ¦ IPv4 routes (static): up to 8000 ¦ ACL entries: up to 2000
MAC Address Table Size	16K entries
Jumbo Frame Support	9216 bytes
Routing Protocol	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Encryption Algorithm	MD5, SSL
Authentication Method	RADIUS, TACACS, TACACS+
Features	Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor	X ARM: 800 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	System, link/speed, master, stack
Expansion / Connectivity
Interfaces	8 x 1000Base-T RJ-45 124 W ¦ 2 x 2.5Gbit LAN RJ-45 ¦ 2 x 1000Base-T RJ-45/SFP ¦ 1 x USB management ¦ 1 x console RJ-45
Power
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
Electric Current Required	700 mA
Miscellaneous
Cables Included	1 x console cable
Rack Mounting Kit	Included
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2, USGv6
Localisation	Kuwait, Qatar, Saudi Arabia, Hong Kong, Malaysia, Singapore, United Kingdom
Dimensions & Weight
Width	34.44 cm
Depth	25.25 cm
Height	4.4 cm
Weight	2.5 kg
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	10 - 90% (non-condensing)
