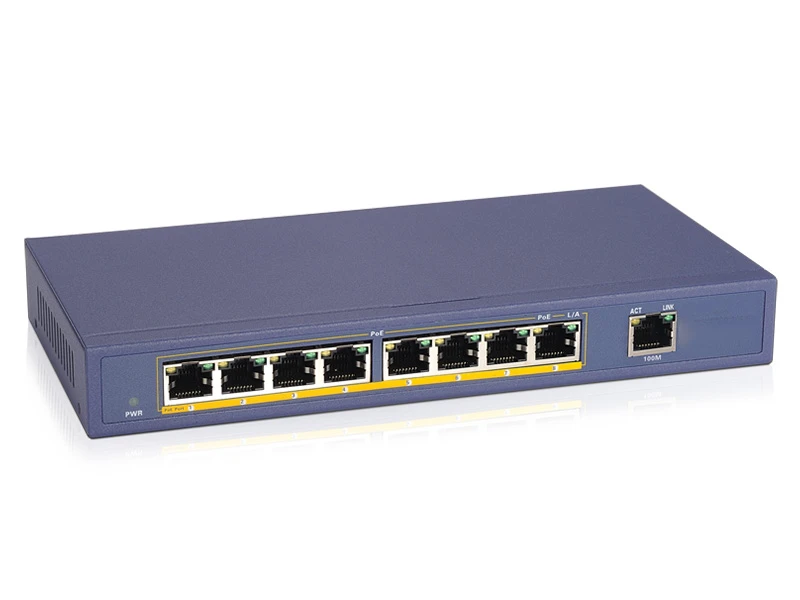

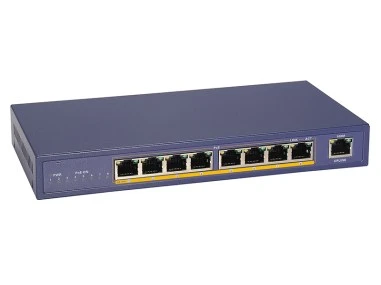

Dynacom DS5008P PoE Switch
Özellikler
Teknik Özellikler
| Technology |
| Network Standards |
| IEEE802.3i l0BASE-T |
| IEEE802.3u l00BASE-TX |
| IEEE802.3x Flow Control |
| PoE power |
| 15.4W per port(IEEE802.3af) |
| Wiring: Data & power provided over pairs l/2 and 3/6 or 4/5(+) and 7/8 |
| Cable:UPT cat.5 or higher |
| Processing types |
| Store-and-forward |
| Half-duplex back pressure and IEEE |
| 802.3x full- duplex flow control |
| Buffer memory |
| 48Kb embedded memory per unit |
| Network latency |
| Less than 20us for 64-byte frames in Store-and- forward mode |
| Power Input |
| 48VDC |
| PoE power consumption |
| 15.4W /port |
| Mechanical |
| Casing |
| Metal case |
| Dimension |
| 217 x 105 x 28mm(LxWxH) |
| Weight |
| 0.63KG |
| Installation |
| Desktop |
| LED Indicators |
| System:Power,PoE Maximum power |
| Per port: Link Activity Speed |
| PoE active,PoE error |
| Environment specifications |
| Operating Temperature |
| 0~55°C (32~104°C) |
| Storage Temperature |
| -10~70°C (14~158°C) |
| Operating Humidity |
| 90% max relative humidity on-condensing |
| Storage Humidity |
| 90% max relative humidity on-condensing |
| Safety |
| CE/ROHs/FCC |
| Warranty |
| 1 year |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 200-400 Watt
Çalışma Mesafesi : 100Mt.
