Açıklama

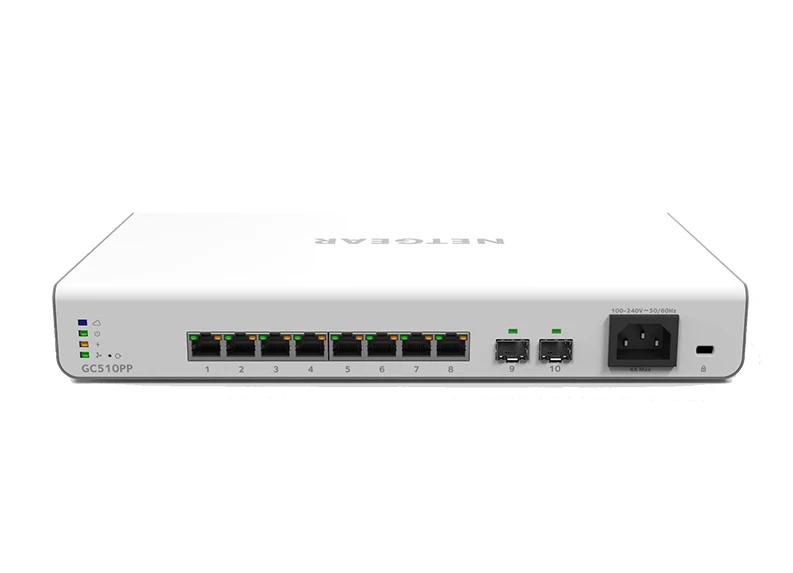

Netgear GC510PP PoE Switch
Teknik Özellikler
| Model Description |
| Insight Managed 8-Port Gigabit Ethernet High-Power PoE+ Smart Cloud Desktop/Rackmount Switch w/2 SFP Fiber Ports (195W) |
| Gigabit copper ports |
| 8 |
| Gigabit SFP ports |
| 2 (dedicated) |
| Number of PoE/PoE+ ports |
| 8 PoE+ (802.3at) |
| Total PoE power budget (watts) |
| 195W |
| Bandwidth (full-duplex) |
| 20 Gbps |
| Buffer size (dynamically shared across ports in use) |
| 1.5 MB |
| MAC address database size (48-bit MAC addresses) |
| 16K |
| VLAN (number supported) |
| 256 |
| VLAN routing |
| Yes |
| Dynamic VLAN assignment |
| Yes |
| MLD Snooping |
| Yes |
| Static routes |
| 32 (IPv4) / 31 (IPv6) |
| Link Aggregation / Port Trunking |
| LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG |
| Number of LAGs & number of members |
| 5 LAGS with max 8 members in each LAG |
| Number of priority queues |
| 8 |
| Supported multicast groups |
| 512 |
| DoS prevention |
| Yes |
| Loop detection/prevention |
| Yes |
| Jumbo frame support |
| Up to 9,216 packets |
| EEE (IEEE 802.3az) |
| Yes |
| Power supply |
| Internal: 100-240VAC, 50-60Hz, 4A max (power cord localized to country of sale) |
| Max power consumption (Watts) |
| 10.3 W (no PoE) |
| 200.0 W (with PoE max) |
| Fan(s) |
| 1 |
| Acoustic noise level @ 25°C (dBA) |
| 28 dBA |
| Operating temperature |
| ° to 45°C (32° to 113°F) |
| MTBF (@ 25°C) |
| 381,503 hours (44 years) |
| Electromagnetic compliance (A or B) |
| Class A |
| Dimensions (W x D x H) |
| 314 x 188 x 44 mm (12.4 x 7.4 x 1.7 in) |
| Weight |
| 2.23 kg (4.92 lb) |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
Wall Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
