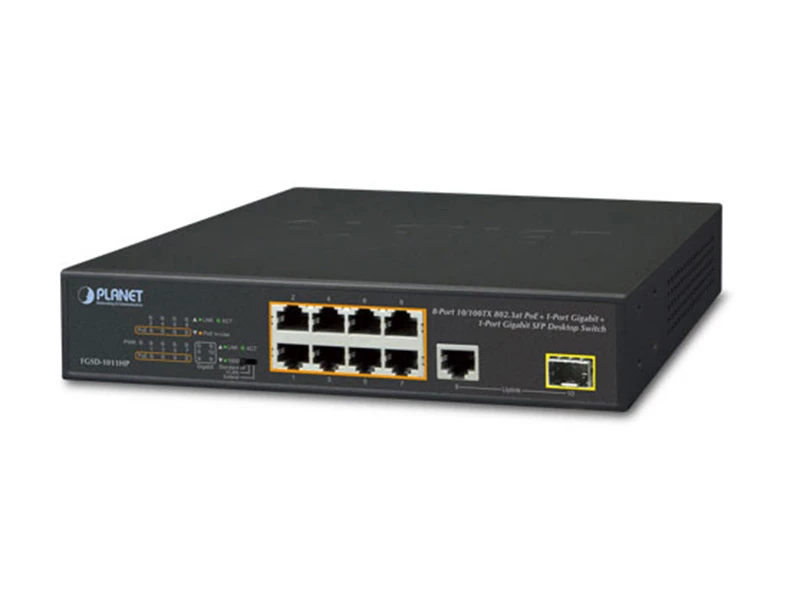

Planet FGSD 1011HP PoE Switch

Özellikler

Physical Port

8 10/100Mbps Fast Ethernet ports
1 10/100/1000BASE-T Gigabit Ethernet port
1 1000BASE-X mini-GBIC SFP interface

Power over Ethernet

Complies with IEEE 802.3af/at Power over Ethernet end-span
Up to 8 IEEE 802.3af/2 IEEE 802.3at devices powered
Supports PoE power up to 30 watts for each PoE port
120-watt PoE budget
8 ports supporting 52V DC power to PoE powered device (Ports 1 to 8)
Hardware DIP switch for "Standard", "VLAN' and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in the standard mode

Switching

Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 4K absolute MAC addresses
Automatic address learning and address aging
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

Hardware

9-inch desktop size, 1U height, mountable
LED indicators for PoE ready/activity and LINK/ACT
Fanless design
Internal AC power supply
Support Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Teknik Özellikler

Hardware Specifications
10/100Mbps Ports	8 10/100BASE-TX MDI/MDI-X RJ45 ports
Gigabit Ports	1 10/100/1000BASE-T MDI/MDI-X RJ45 port
SFP Slot	1 100/1000BASE-X SFP/mini-GBIC interface
PoE Inject Port	8-port with 802.3af/at PoE injector function (Ports 1 to 8)
LED Display	System:
	Power (Green)
	10/100BASE-TX RJ45 Interface:
	PoE (Orange, Ports 1 to 8)
	LNK/ACT (Green, Ports 1 to 8)
	10/100/1000BASE-T RJ45 Interface:
	1000Mbps LNK/ACT (Green, Port 9)
	100/1000BASE-X SFP Interface:
	1000Mbps LNK/ACT (Green, Port 10)
DIP Switch	100m distance in standard mode
	250m distance in extend mode (based on the cable category)
Switch Architecture	Store and Forward switch architecture
MAC Address Table	4K MAC address table with auto learning function
Switch Fabric	5.6Gbps
Switch Throughput	4.16Mpps @64bytes
Maximum Packet Size	9K bytes
Flow Control	Back pressure for half duplex; IEEE 802.3x pause frame for full duplex
Power Requirements	AC 100~240V, 2.5A max.
Power Consumption	135 watts, 463.2 BTU
Dimensions (W x D x H)	220 x 150 x 44 mm
Weight	1220g
ESD Protection	Contact discharge of ±6KV DC
	Air discharge of ±8KV DC
Surge Immunity	±4KV
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE
	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Output	Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
	Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
PoE Power Budget	120 watts
Number of PDs, 7 watts	8
Number of PDs, 15.4 watts	8
Number of PDs, 30 watts	4
Standard Conformance
EMI Safety	CE, FCC
Standard Compliance	IEEE 802.3	Ethernet
	IEEE 802.3u	Fast Ethernet
	IEEE 802.3ab	Gigabit 1000BASE-T
	IEEE 802.3z	Gigabit SX/LX
	IEEE 802.3x	Flow Control
	IEEE 802.3af	Power over Ethernet
	IEEE 802.3at	Power over Ethernet Plus
Environment
Operating Environment	0 ~ 50 degrees C
Storage Environment	-10 ~ 70 degrees C
Operating Humidity	5 ~ 95%, relative humidity, non-condensing
Storage Humidity	5 ~ 95%, relative humidity, non-condensing
Ordering Information
FGSD-1011HP	8-Port 10/100TX 802.3at/af PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Desktop Switch
