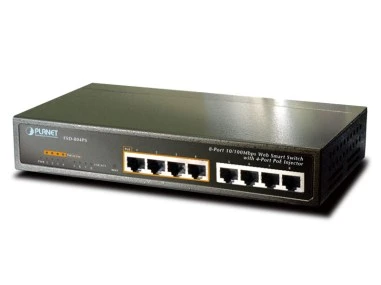

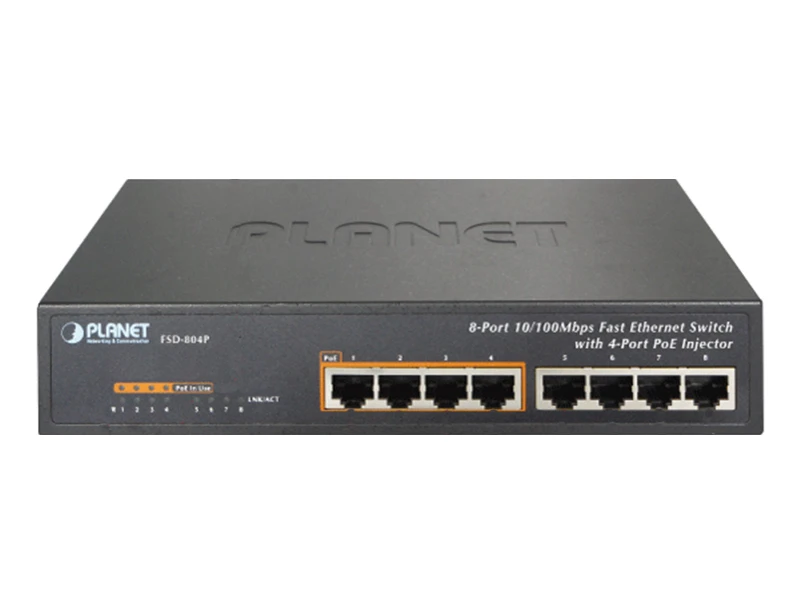

Planet FSD 804P 10/100 PoE Switch
Özellikler
Physical Port
- 8-port 10/100BASE-T Fast Ethernet RJ45 copper
- 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- Up to 4 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Each port supports 53V DC power to PoE powered device
- 60-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m with standard mode, 200m with extended mode
Switching
- Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 200m at speed of 10Mbps (Only for Port1 – Port4)
Hardware
- 8.5-inch desktop size, 1U height, rack mountable
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- Fanless design
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
- Supports 4000VDC Ethernet ESD protection
Teknik Özellikler
| Hardware Specifications | |
| Hardware Version | 4 |
| 10/100BASE-TX MDI/MDIX Ports | 8 |
| PoE Injector Port | 4 ports with 802.3at/af PoE injector function with Port-1 to Port-4 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1.6Gbps/non-blocking |
| Switch Throughput@64 bytes | 1.19Mpps@64 bytes |
| MAC Address Table | 1K entries, automatic source address learning and aging |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| LED | System: |
| Power (Green) | |
| PoE max. (Green) | |
| 10/100BASE-T RJ45 Interfaces: | |
| 10/100Mbps LNK/ACT(Green) | |
| PoE Interfaces: | |
| PoE-in-Use (Orange) | |
| ESD Protection 4KV DC | |
| ESD Protection | 4KV DC |
| DIP Switch | Selectable operation mode |
| Standard | |
| Extended | |
| Dimensions (W x D x H) | 215 x 133 x 42 mm (1U height) |
| Enclosure | Metal |
| Weight | 880g |
| Power Requirements | AC 100~240V, 50/60Hz, 2A max. |
| Power Consumption/Dissipation | Max. 65 watts/223 BTU |
| Thermal Fan | Fanless |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE | |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 53V DC, 600mA. max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 60 watts |
| Max. Number of Class 2 PDs | 4 |
| Max. Number of Class 3 PDs | 4 |
| Max. Number of Class 4 PDs | 2 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3x Flow control and back pressure | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
Planet FSD 804P 10/100 PoE Switch Pdf Dosyası1.04 MBTeknik Kısa
PoE : Hibrid
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Montaj Tipi : Rack Mount
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
Çalışma Mesafesi : 100Mt.
