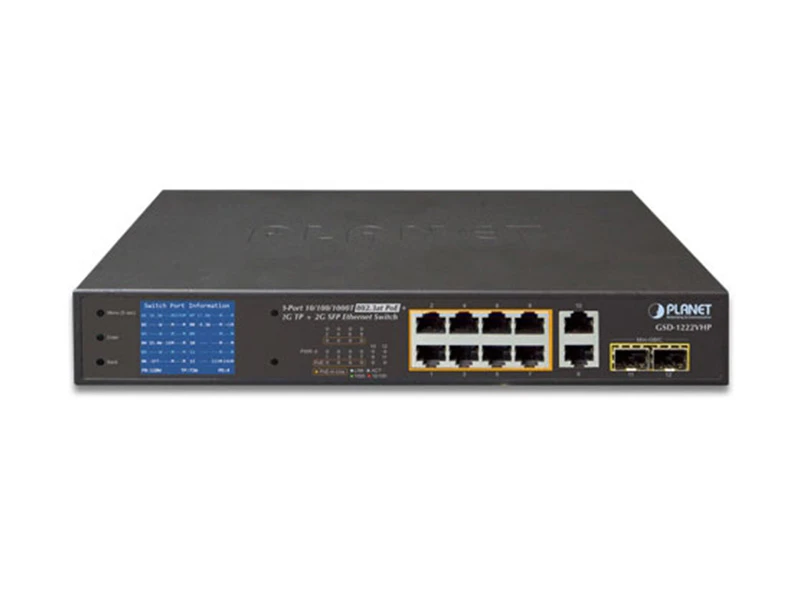

Planet GSD 1222VHP PoE Switch

Özellikler

Physical Port

8-port 10/100/1000BASE-T Gigabit RJ45 copper
2 1000BASE-X mini-GBIC SFP interfaces
2 10/100/1000BASE-T TP interfaces

Power over Ethernet

Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
Up to 8 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 32 watts for each PoE port
Each port supports 54V DC power to PoE powered device
120-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode and 250m in extend mode

Smart LCD

The LCD switch features “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
Power low-voltage, power over-voltage and PSE over-temperature protection
Screen saver, fan control, factory default and save configuration
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD alive check

Switching

Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
9216bytes packet size
Integrates address look-up engine, supporting 8K absolute MAC addresses
IEEE 802.1Q VLAN transparency
Automatic address learning and address aging

Hardware

12-inch desktop size, 1U height, rack mountable
2-inch color LCD with smart management functions
LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
1 silent fan to provide stable and efficient power performance
Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
Supports ±6KV surge immunity

Teknik Özellikler

Hardware Specifications
802.3af/802.3at PoE Injector Port	8
10/100/1000BASE-T MDI/MDIX Ports	8
10/100/1000BASE-T MDI/MDIX Ports	2
1000BASE-X SFP/mini-GBIC Slots	2
Switch Architecture	Store-and-Forward
Switch Fabric	24Gbps/non-blocking
Switch Throughput@64 bytes	18Mpps@64 bytes
MAC Address Table	8K entries
Maximum Frame Size	9216 bytes
Flow Control	IEEE 802.3x pause frame for full duplex; back pressure for half duplex
LED	System:
	Power (Green)
	PoE interfaces:
	PoE-in-Use (Orange)
	10/100/1000BASE-T RJ45 Interfaces:
	10/100Mbps LNK/ACT (Red)
	1000Mbps LNK/ACT (Green)
	1000BASE-X SFP Interfaces:
	LNK/ACT (Green)
LCD Monitor (W x D)	40.6mm x 30.5mm, 2-inch
Buttons	Menu, Enter, Back, Up and Down
Dimensions (W x D x H)	180 x 280 x 44mm (1U height)
Enclosure	Metal
Weight	1.8kg
Power Requirements	100~240V AC, 50/60Hz, 2.5A max.
Power Consumption/Dissipation	Max. 130watts/446 BTU
Thermal Fan	1
ESD Protection	Contact discharge of ±6KV DC
	Air discharge of ±8KV DC
Surge Protection	±6KV
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
PoE Power Output	Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Budget	120 watts
Max. Number of Class 2 PDs	8
Max. Number of Class 3 PDs	8
Max. Number of Class 4 PDs	4
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3x Flow control and back pressure
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating	Temperature: -10 ~ 60 degrees C
	Relative Humidity: 10 ~ 90% (non-condensing)
	* Temperature<40 degrees="" c="" humidity="" 90="" td="">
	Temperature>40 degrees C; Humidity<50%
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 90% (non-condensing)
