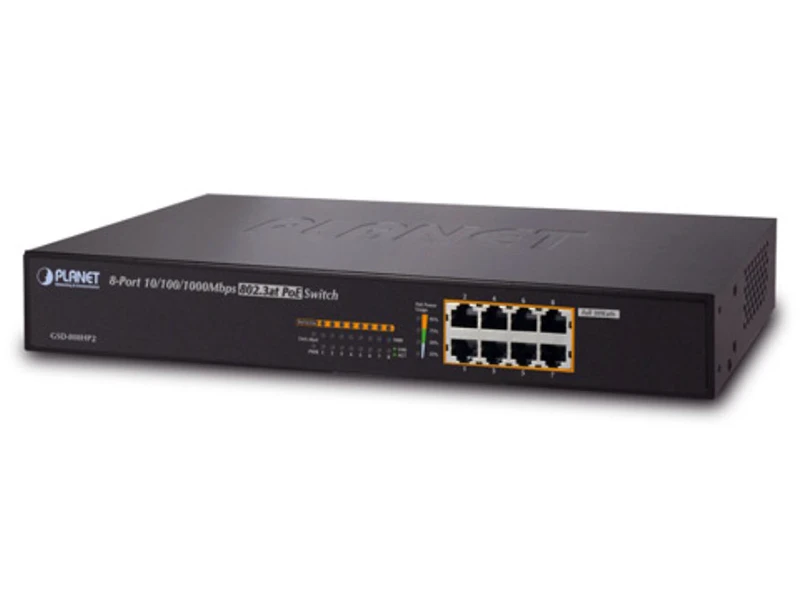

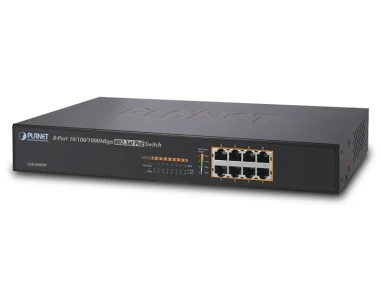

1000 PoE Switch

Donanım Özellikleri
Network Konnektörü	8-Port RJ-45 for 10/100/1000Base-T
PoE Inject Port	8-Port with 802.3af / 802.3at PoE injector function
LED Ekran	System: Power x1 (Green), Fan Alert x1 (Orange), PoE Power Usage x4 (Orange)
	Per Port: PoE In-use (Orange), Speed (Green), LNK/ACT (Green)
Switch Architecture	Store and Forward switch architecture
MAC Adres Tablosu	8K MAC address table with auto learning function
Switch Fabric	16Gbps
Switch Throughput	11.9Mpps
Jumbo Packet Size	9K Bytes
Akış Kontrolü	Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex
Güç Gereksinimi	AC 100~240V, 50/60Hz, 1.25A
Güç Tüketimi	250 watts / 853BTU
Ölçüler (W x D x H)	330 x 155 x 43.5 mm
Ağırlık	1.66 Kg
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)
	Per Port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	240 Watts
Max. number of Class 2 PD	8
Max. number of Class 3 PD	8
Max. number of Class 4 PD	8
Standart Uygunluğu
EMI Safety	FCC Class A, CE
Çalışma Sıcaklığı	0 ~ 50 degrees C
Saklama Sıcaklığı	-40 ~ 70 degrees C
Çalışma Nem Oranı	5 ~ 95%, relative humidity, non-condensing
Saklama Nem Oranı	5 ~ 95%, relative humidity, non-condensing
Standartlar	IEEE 802.3	Ethernet
	IEEE 802.3u	Fast Ethernet
	IEEE 802.3ab	Gigabit Ethernet
	IEEE 802.3x	Flow Control
	IEEE 802.3af	Power over Ethernet
	IEEE 802.3at	High Power over Ethernet
