Açıklama

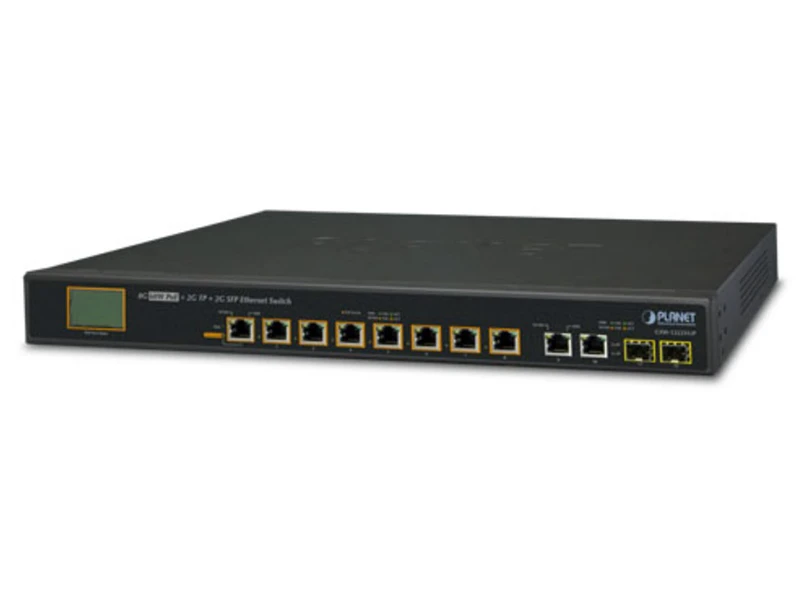

1000 PoE Switch

Özellikler

Physical Port

8 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
2 10/100/1000BASE-T TP ports
2 1000BASE-X mini-GBIC SFP interfaces

Power over Ethernet

Ultra Power over Ethernet end-span/mid-span PSE
Up to 60 watts of power on 4-pair UTP
Backward compatible with IEEE 802.3at/af PD device
Up to 8 ports of IEEE 802.3af/IEEE 802.3at/Ultra PoE devices powered
54V DC, 60-watt PoE power output at maximum on each port
380-watt PoE budget
Auto-detection of IEEE 802.3at/af PoE equipment and device to avoid possible damage by incorrect installation
Circuit protection prevents power interference between ports
Remote power feeding up to 100m

Hardware

19-inch size, 1U height, rack mounting
LED indicators for system power, per port PoE ready and PoE activity, speed Link/Act
LCD monitor for system status and PoE usage status display
3 silent smart fans designed to provide stable and efficient power performance

Teknik Özellikler

Hardware Specifications
PoE Copper Ports	10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP/mini-GBIC Slots	2 x 1000BASE-X SFP interface
PoE Injector Ports	8 ports with Ultra PoE/802.3at/af PoE injector function with Port-1 to Port-8
Switch Architecture	Store-and-Forward
Switch Fabric	24Gbps/non-blocking
Switch Throughput@64 bytes	17.8 mpps@64 bytes
MAC Address Table	8K entries
Jumbo Packet Size	10K bytes
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
LED	System:
	Power (Green)
	Ultra PoE 10/100/1000BASE-T RJ45 Interfaces (port 1 to port 8):
	1000Mbps LNK/ACT (Green)
	10/100Mbps LNK/ACT (Orange)
	PoE-in-Use (Orange)
	10/100/1000BASE-T RJ45 Interfaces (port 9 to port 10):
	1000Mbps LNK/ACT (Green)
	10/100Mbps LNK/ACT (Orange)
	1000BASE-X SFP Interfaces (port 11 to port 12):
	1000Mbps LNK/ACT (Green)
LCD Monitor (W x D)	39.5mm x 24.8mm
LCD Monitor (W x D)	System status and PoE usage port status
Dimensions (W x D x H)	440 x 233 x 44 mm, 1U height
Enclosure	metal
Weight	3.3kg
Power Requirements	100~240V AC, 50/60Hz, 6A max.
Power Consumption/Dissipation	Max. 420 watts/1433 BTU
Ventilation	Smart fan x 3
Ventilation	(Fans will activate once the PoE budget reaches 126 watts)
ESD Protection	Contact discharge of ±4KV DC
ESD Protection	Air discharge of ±6KV DC
Surge Immunity	±4KV
Power over Ethernet
PoE Standard	IEEE 802.3af/802.3at/Ultra PoE PSE
PoE Power Supply Type	End-span + Mid-span
PoE Power Output	Per port 54VDC, 600mA. max. 60 watts (Ultra PoE)
	Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
	Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Power Pin Assignment	Ultra PoE: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
	End-span: 1/2 (+), 3/6 (-)
	Mid-span: 4/5 (+), 7/8 (-)
PoE Power Budget	380 watts (max.)
PoE Ability PD @ 15 watts	8 units
PoE Ability PD @ 30 watts	8 units
PoE Ability PD @ 60 watts	6 units
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3x Flow control and back pressure
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
