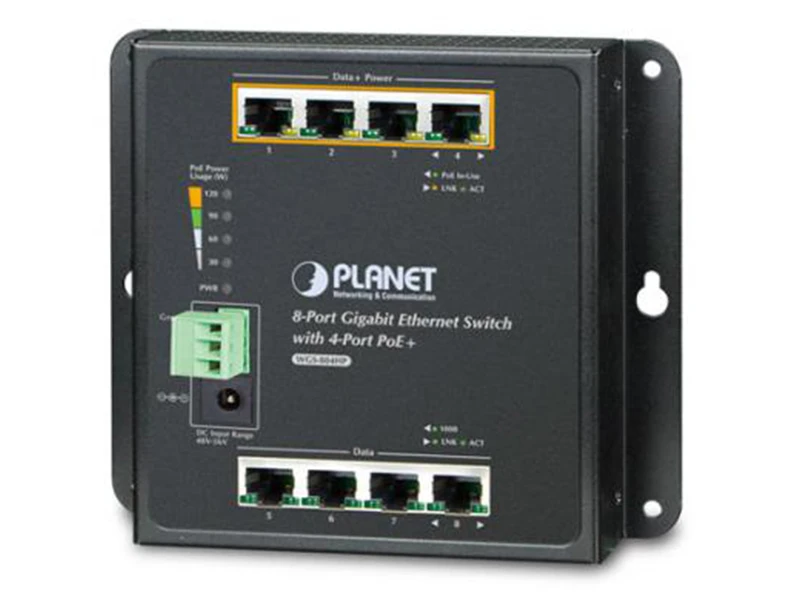

Planet PL WGS 804HP 10/100/1000 PoE Switch
Teknik Özellikler
| Hardware Specifications |
| Network Connector |
| 8-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port |
| 4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4) |
| Switch Architecture |
| Store and forward |
| MAC Address Table |
| 8K MAC address table with auto learning function |
| Data Buffer |
| 1Mbit |
| Switch Fabric |
| 16Gbps / non-blocking |
| Switch Throughput |
| 11.9Mpps @ 64Bytes |
| Jumbo Frame |
| 9Kbytes |
| Flow Control |
| IEEE 802.3x pause frame for full duplex |
| Back pressure for half duplex |
| LED Indicators |
| Power LED: Power (Green) |
| PoE Power Usage LED: 30W, 60W, 90W, 120W (Green) |
| PoE Port(Port-1 to Port-4): PoE-in-Use (Orange) LNK/ACT (Green) |
| 10/100/1000BASE-TX Port (Port-5 to Port-8): 1000 (Green) LNK/ACT (Green) |
| Connector |
| Removable 3-pin terminal block for power input |
| - Pin 1/2 for DC Power |
| - Pin 3 for earth ground |
| DC power jack with 2.0mm central pole |
| Power Requirements |
| 48~56V DC, 3A (max.) |
| Power Consumption |
| 140 watts / 478BTU |
| ESD Protection |
| 6KV DC |
| EFT Protection |
| 6KV DC |
| Enclosure |
| IP30 metal |
| Dimensions (W x D x H) |
| 148 x 24.2 x 134 mm |
| Weight |
| 510g |
| Installation |
| Wall mount, magnetic wall mount and DIN-rail kit |
| Power over Ethernet |
| PoE Standard |
| IEEE 802.3af / 802.3at Power over Ethernet PSE |
| PoE Power Supply Type |
| End-span |
| PoE Power Output |
| IEEE 802.3af Standard |
| - Per port 48V~56V DC (depending on the power supply), max. 30 watts |
| IEEE 802.3at Standard |
| - Per port 50V~56V DC (depending on the power supply), max. 30 watts |
| Power Pin Assignment |
| 1/2(+), 3/6(-) |
| * PoE Power Budget |
| 120 watts (depends on power input) |
| Max. Number of Class 2 PD |
| 4 |
| Max. Number of Class 3 PD |
| 4 |
| Max. Number of Class 4 PD |
| 4 |
| Standard Conformance |
| Standard Compliance |
| IEEE 802.3: Ethernet |
| IEEE 802.3u: Fast Ethernet |
| IEEE 802.3ab: Gigabit Ethernet |
| IEEE 802.3x: Flow Control |
| IEEE 802.3af: Power over Ethernet |
| IEEE 802.3at: High Power over Ethernet |
| Regulation Compliance |
| FCC Part 15 Class A, CE |
| Stability Testing |
| IEC 60068-2-32 (Free fall) |
| IEC 60068-2-27 (Shock) |
| IEC 60068-2-6 (Vibration) |
| Environment |
| Operating |
| Temperature: -10 ~ 60 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
| Temperature: -20 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
Planet PL WGS 804HP 10/100/1000 PoE Switch Pdf Dosyası1.18 MB
Teknik Kısa
PoE : PoE Plus
Hibrid
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Montaj Tipi : Wall Mount
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
