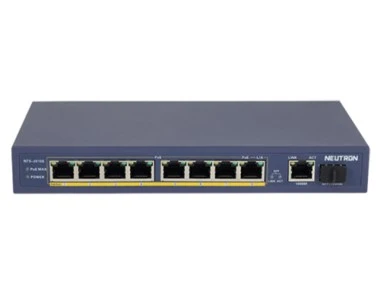

Ttec PSG08 2DF PoE Switch
Teknik Özellikler
| Standartlar |
| Ethernet: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3az EEE |
| PoE: IEEE 802.3at PoE+ |
| Protocol: IEEE 802.3x – Flow Control, IEEE 802.1Q – VLAN, IEEE 802.1p – |
| Class of Service, IEEE 802.1D – Spanning Tree, IEEE 802.1w – |
| Rapid Spanning Tree, IEEE 802.1s – Multiple Spanning Tree, IEEE 802.3ad – |
| Link Aggregation Control Protocol (LACP), IEEE802.1v – |
| Protocol VLAN, IEEE 802.1AB – LLDP (Link Layer Discovery Protocol), |
| IEEE 802.1X – Access Control |
| Özellikler |
| Port Sayısı: 8 adet GE-RJ 45 (PoE) |
| SFP Port Sayısı: 2 adet SFP |
| MAC Adresi: 8K |
| Tampon Paket: 4Mb |
| Jumbo Paketler: 9K |
| Performans |
| Anahtarlama Kapasitesi : 52 Gbps |
| İletim Oranı : 38.7 Mpps |
| Poe Özellikleri |
| 802.3af/at Compliant |
| Max. Power Output Per Port: 30W |
| PoE Power Budge: 130W |
| PoE Management: |
| Enable/Disable per-port |
| Priority Setting per-port |
| Maximum Power per-port/system |
| PoE Mode Setting per-port |
| PD Classification, PoE Status |
| L2 Özellikleri |
| Flow Control: 802.3x (Full-duplex)ort/ Back-Pressure (Half-duplex) |
| Spanning Tree: |
| IEEE 802.1D-2004(Includes IEEE 802.1w): Rapid Spanning Tree Protocol |
| 802.1s Multiple Spanning Tree Protocol |
| Loop Detection |
| VLAN: |
| IEEE 802.1Q Tagged Based, Max. VLAN Group: 4K |
| QinQ |
| Port-based VLAN |
| Voice VLAN |
| Private VLAN |
| MVR |
| MAC-Based VLAN |
| Protocol-Based VAN |
| Link Aggregation: |
| Static Trunk & IEEE 802.3ad with LACP |
| Max. Group: 5 |
| Max. Ports/Group: 8 |
| IGMP Snooping: |
| IGMP Snooping v1/v2/v3 |
| IPv6 MLD Snooping v1/v2 |
| Querier support/ IGMP Filtering, IGMP Leave Proxy, Immediate Leave |
| Storm Control: Broadcast/ Multi-cast/ Un-known Unicast |
| Jumbo Frame Support: 9K |
| QoS |
| Number of Priority queue: 8 queues/ port |
| Scheduling for priority queue : WRR/Strict Priority scheduling/Hybrid |
| 802.1p/ IP Precedence/ IP TOS Precedence |
| IP DSCP/ Port based Priority |
| Rate Limiting: Ingress/Egress: 1Kbps/ 1pps granularity |
| DiffServ (RFC2474) remarking |
| Güvenlik |
| User Name / Password Protection |
| User Privilege: up to 15 levels |
| IEEE 802.1x: Port-based Access Control |
| IP Source Guard |
| MAC Based Authentication |
| Web-based Authentication |
| HTTPS |
| SSHv2 |
| RADIUS: Authentication/ Accounting |
| TACACS+: Authentication |
| ACL (Access control list) |
| Yönetim |
| Command Line Interface (CLI) |
| Web Based Management |
| Telnet |
| Access Management Filtering: SNMP/WEB/SSH/TELNET |
| SNMP: v1/v2c/v3 |
| RMON: RMON (1,2,3, & 9 groups) |
| DHCP: Client/ Relay/ Option82/ Snooping |
| Event/Error Log |
| Software Download/ Upgrade: HTTP |
| Configuration Download / Upload |
| sFlow |
| Port Mirroring: One to One/ Many to One |
| Remote Ping |
| NTP/LLDP |
| UPnP |
| EEE Configuration |
| Cable Diagnostics |
| IPv6 Configuration |
| Güç Girişi : 100~240VAC |
| Güç Tüketimi : PoE: max. 130W |
| Sistem: 15W |
| Mekanik Özellikler |
| Boyutlar (Y*G*D) : 44*330*220mm |
| Ağırlık : 2.5 kg |
| Çalışma Sıcaklığı : 0~45℃ |
| Nem : 5~90% (yoğuşmasız) |
| Sertifikalar : CE, FCC Class A |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2 Plus
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
