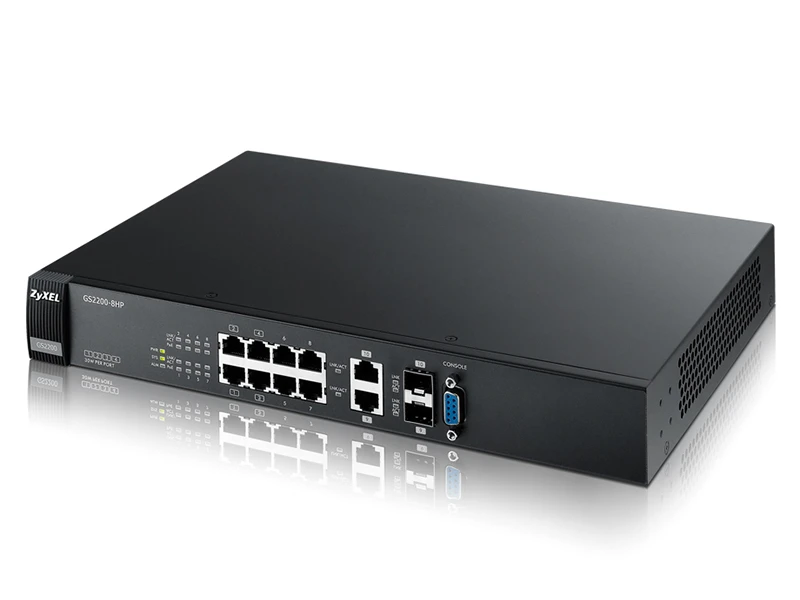

ZyXEL GS2200 8HP 8Port 100/1000 2xDual SFP L2 Yönetilebilir PoE Switch
Özellikler
- Tipi: Sabit Portlu
- Modül Desteği: Yok
- Yönetilme Durumu: Yönetilebilir
- Türü: Layer 2
- Port sayısı: 8
- Yoğunluklu Port tipi: 1Gbps
- Ek özellikler: IPv6 Desteği, Stack Desteği, PoE
- Uplink Port Tipi: 10/100/1000 Bakır, 1000Mbps Fiber
- L2 Managed 10/100/1000 PoE Switch, 8x10/100/1000 BaseT
- PoE Port+2xDual Personality GbE Port, 20 Gbps Switching Kapasitesi
- 14,9 Mpps İletim Hızı, 16K Mac Adres, 802.3x, 802.1p CoS, 802.1d, 802.1w
- 802.1Q, 802.1x, 802.3ad, 802.3at, 802.1s, 802.3az, iStacking, IGMP Snooping v1, v2, v3
- 4K Dynamic VLAN, MAC Filtering, MAC Freeze, Intrusion Lock, Specific MAC Forwarding
- 448K Packet Buffer, SNMP v1, v2c, v3, IPv6 Desteği
- 180W PoE Power Budget
Teknik Özellikler
| Performance |
| 10/100/1000BASE-T Ports |
| 8 |
| Dual Personality GbE Ports |
| 2 |
| Switching Capacity |
| 20 |
| Switching Forwarding Rate |
| 14.9 |
| Packet Buffer |
| 448 KB |
| MAC Address |
| 16 K |
| Standard Compliance |
| IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Ethernet |
| IEEE 802.ab 1000BASE-T Ethernet |
| IEEE 802.3z 1000BASE-X Ethernet |
| IEEE 802.3x flow control |
| IEEE 802.1D spanning tree protocol |
| IEEE 802.1w rapid spanning tree protocol |
| IEEE 802.1s multiple spanning tree protocol |
| IEEE 802.1p class of service, priority protocols |
| IEEE 802.1X port authentication |
| IEEE 802.3ad LACP aggregation |
| Power |
| Input Voltage |
| 100 to 240 V AC, 50/60 Hz |
| Power Consumption |
| Max: 230 W |
| Additional Features |
| Traffic Management and QoS |
| Rate Limiting: Rule-based/port-based bandwidth control, 64 kb/s granularity |
| Port-based egress traffic shaping |
| Broadcast storm control |
| IEEE 802.1p with 8 priority queues per port for different traffic types |
| Weighted Round Robin (WRR) /SPQ/WFQ scheduling algorithm |
| Supports DSCP |
| Supports DSCP to 802.1p priority mapping |
| Supports IGMP/IGMP snooping v1, v2, v3 |
| Congestion control on all ports |
| Link Aggregation |
| IEEE 802.3ad LACP link aggregation compliant |
| Support static manually port trunking |
| Up to 8 aggregation groups, 8 ports/per group randomly selected |
| Resilient Network |
| IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) |
| IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| User Security and Authentication |
| MAC filtering per port secures access to each port IEEE 802.1Q tag-based and port-based VLAN |
| Guest VLAN (Port based/MAC based) |
| 9 MAC per port (Exclusive with protocol-based & IP subnet-based VLAN, for 8 port devices) |
| Support GVRP, automatic VLAN member registration |
| 1K static VLAN, up to 4K dynamic VLAN Full range 4K PVID support |
| Port-base VLAN & VLAN isolation |
| Intrusion lock |
| MAC freeze |
| Specific MAC forwarding per port: only specified MAC addresses can access the network (Port security) |
| Limited MAC number per port |
| IP source guard |
| Loop guard |
| RADIUS MAC login |
| IP filtering |
| TCP/UDP socket filtering |
| BPDU transparency |
| 802.1X port-based authentication, compensated assignment over VLAN and bandwidth for valid access |
| TACACS+ Password encryption |
| Network Administration Security |
| User name/password required for Web/Telnet/local console administrators |
| Two-level security by specific SNMP read/write community |
| Multiple login session |
| Multiple access permission management |
| SSH v1/v2 |
| SSL |
| IPv6 |
| IPv6 over Ethernet |
| IPv6 Addressing |
| IPv6 Path MTU |
| ICMPv6 |
| DualStack |
| Neighbor discovery |
| DHCPv6 client |
| DHCPv6 relay |
| Network Management |
| Supports ZyXEL iStacking, up to 24 switches can be managed by one IP address |
| Web-based management |
| Telnet CLI |
| SNMP v1, v2c, v3 |
| RS-232c local console |
| IP management: Static IP or DHCP client |
| RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis |
| Port mirroring: supports source/destination/both port mirroring |
| Intelligent ACL |
| L2/L3/L4 Access List Control |
| Based on MAC address |
| Based on VLAN |
| Based on IP address |
| Based on protocol type |
| Based on TCP/UDP type |
| Based on DSCP |
| MIB Information |
| RFC 1066 TCP/IP-based MIB |
| RFC 1213, 1157 SNMP v2c/v3 MIB |
| RFC 2011, 2012, 2013 SNMP v2 MIB |
| RFC 1493 bridge MIB |
| RFC 2674 bridge MIB extension |
| RFC 1643 Ethernet MIB |
| RFC 2358 Ethernet-like MIB |
| RFC 1757 RMON group 1, 2, 3, 9 |
| RFC 2819, 2925 Remote Management MIB |
| RFC 3621 - Power Ethernet MIB |
| ZyXEL private MIB |
| General |
| Temperature |
| Operating: |
| 32 to 122°F (0 to 50°C) |
| Storage: |
| -40 to 158°F (-40 to 70°C) |
| Humidity |
| Operating: 10 to 95% (non-condensing) |
| Certification |
| CE-LVD, FCC, CE, BSMI, EU RoHS |
| Dimensions (W x H x D) |
| 12.9 x 1.7 x 9.0" (330.0 x 44.0 x 230.0 mm) |
| Weight |
| 5.86 lb (2.66 kg) |
ZyXEL GS2200 8HP 8Port 100/1000 2xDual SFP L2 Yönetilebilir PoE Switch PDF Dosyası1.1 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
