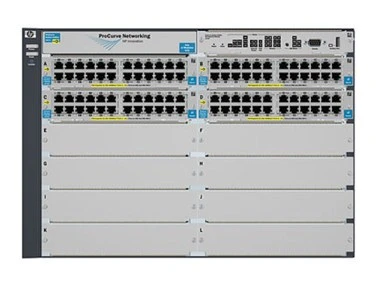

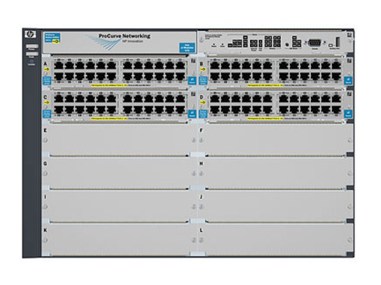

HP 5412 92G PoE Plus 4G v2 zl J9540A 10/100/1000 PoE Switch
Teknik Özellikler
| General |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 92 x 10/100/1000 (PoE) + 4 x SFP |
| Power Over Ethernet (PoE) |
| PoE |
| Authentication Method |
| RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+ |
| Flash Memory |
| 4 MB |
| MAC Address Table Size |
| 64K entries |
| Authentication Method |
| Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Power Over Ethernet (PoE) |
| PoE |
| Encryption Algorithm |
| SSL |
| Routing Protocol |
| RIP-1, RIP-2, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv6 routing |
| Manufacturer |
| HP |
| Camera |
| Installed Size |
| 4 MB |
| Expansion / Connectivity |
| Installed Modules Qty (Max) |
| 4 (installed) / 12 (max) |
| Power Device |
| Nominal Voltage |
| AC 120/230 V |
| Frequency Required |
| 50/60 Hz |
| Type |
| internal power supply |
| Hot-Plug |
| hot-plug |
| Networking |
| Cabling Type |
| Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T |
| MAC Address Table Size |
| 64K entries |
| Subcategory |
| network hubs and switches |
| Subtype |
| Gigabit Ethernet |
| Form Factor |
| rack-mountable |
| Type |
| switch |
| Connectivity Technology |
| wired |
| Advanced Switching |
| Layer 4 |
| Features |
| ARP support, Spanning Tree Protocol (STP) support, VLAN support, auto-uplink (auto MDI/MDI-X), flow control, manageable, power over Ethernet (PoE), routing, BOOTP support, DiffServ support, Jumbo Frames support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) |
| support, PoE+, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support |
| Compliant Standards |
| IEEE 801.1p, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab |
| Ports Qty |
| 92 |
| Manageable |
| Yes |
| Routing Protocol |
| IGMPv3, OSPFv2, OSPFv3, RIP-1, RIP-2, static IP routing, static IPv6 routing |
| Switching Protocol |
| Ethernet |
| Remote Management Protocol |
| HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Telnet |
| Communication Mode |
| full-duplex, half-duplex |
| Power Over Ethernet (PoE) |
| PoE |
| Interface Provided |
| Interface |
| RS-232C |
| Qty |
| 1, 4, 92 |
| Connector Type |
| SFP (mini-GBIC) |
| Comments |
| PoE, management |
| Chassis |
| Installed Devices / Modules Qty |
| 4 |
| Supported Devices / Modules Qty |
| 12 |
| Miscellaneous |
| Rack Mounting Kit |
| included |
| Encryption Algorithm |
| SSL |
| Height (Rack Units) |
| 7 m |
| Power |
| Installed Qty |
| 2 |
| Power Redundancy |
| yes |
| Processor |
| Type |
| PowerPC 8540 |
| Installed Qty |
| 1 |
| Manufacturer |
| Freescale |
| Clock Speed |
| 666 MHz |
| RAM |
| Technology |
| DDR SDRAM |
| Environmental Parameters |
| Humidity Range Storage |
| 15 - 95% (non-condensing) |
| Min Operating Temperature |
| 32 °F |
| Max Operating Temperature |
| 131 °F |
| Min Storage Temperature |
| -40 °F |
| Max Storage Temperature |
| 158 °F |
| Humidity Range Operating |
| 15 - 95% (non-condensing) |
| Header |
| Brand |
| HP |
| Product Line |
| HP |
| Model |
| 5412-92G-PoE+-4G v2 zl Switch |
| Packaged Quantity |
| 1 |
| Compatibility |
| PC |
| Dimensions & Weight |
| Depth |
| 17.8 in |
| Width |
| 17.5 in |
| Height |
| 12.1 in |
| Weight |
| 74.96 lbs |
| Expansion Slots |
| Type |
| Compact Flash Card, expansion slot |
| Total Qty |
| 1, 12 |
| Free Qty |
| 1, 8 |
| Ports |
| Type |
| 10/100/1000 (PoE) |
| Qty |
| 92 |
| Ports (2nd) |
| Type |
| SFP (mini-GBIC) |
| Qty |
| 4 |
| Performance |
| Type |
| switching capacity |
| Value |
| 758.4 Gbps |
| Slot Required |
| Type |
| none |
| General |
| Manufacturer |
| HP |
HP 5412 zl J9540A 10/100/1000 PoE Switch Pdf Dosyası276.31 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 4
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
92 Port
92 Port
