| Hardware |
| CPU | • Vitesse VSC7425 (416 MHz) |
| RAM | • 128 MB |
| Flash Memory | • 32 MB |
| Interfaces | • 10 10/100 / 1000Base-T ports |
| • 2 ports of 1000Base-X SFP |
| • Console port with RJ-45 connector |
| • Relay output 1 A / 24 V for power failure notification |
| Indicators | • PWR 1/2/3 |
| • ALM |
| • SYS |
| • Link / Activity / Speed (per port) |
| Buttons | • Reset button |
| Power connector | • DC: terminal block for connecting up to two independent power supplies 1 (12 V to 48 V DC) |
| • AC: 4 pin power mini-DIN PD-40VS (for connecting the power adapter 1 with the PDP-40 plug) |
| Housing | • Metal housing (IP30 standard) |
| Functional |
| Standards and functions | • IEEE 802.3 10Base-T (copper twisted pair) |
| • IEEE 802.3u 100Base-TX (copper twisted pair) |
| • IEEE 802.3ab 1000Base-T (copper twisted pair) |
| • IEEE 802.3z 1000Base-X |
| • IEEE 802.3az Energy Efficient Ethernet |
| • IEEE 802.3x Flow Control |
| • Automatic detection of MDI / MDIX on all copper ports |
| Performance |
| Switching matrix | • 24 Gb / s |
| Switching Method | • Store-and-forward |
| MAC address table size | • 8K entries |
| Max. the speed of redirection of 64-byte packets | • 17.85 Mpps |
| Package Buffer | • 4 MB |
| Jumbo frame | • 9,216 bytes |
| Software |
| Layer 2 functions | • Flow control |
| - 802.3x |
| - Preventing HOL locks |
| • IGMP Snooping |
| - IGMP v1 / v2 |
| - IGMP v3 2 |
| - Support for 64 groups |
| - IGMP Snooping Querier |
| • MLD Snooping |
| - MLD v1 |
| - MLD v2 2 |
| - Support for 64 groups |
| - MLD Snooping Querier |
| • Link aggregation |
| - 802.3ad |
| - Max. 6 groups per device / 8 ports per group |
| • Support for Ethernet Ring Protection Switching (ERPS 2 , ITU-T G.8032) |
| • Loopback Detection |
| • LLDP |
| • Port mirroring |
| - Support for 1 group of mirroring |
| - Modes: One-to-One, Many-to-One |
| • Statistics |
| - Tx Ok |
| - Tx Error |
| - Rx Ok |
| - Rx Error |
| • Spanning Tree Protocol |
| - 802.1D STP |
| - 802.1w RSTP |
| - 802.1s MSTP 2 |
| VLAN | • 802.1Q Tagged VLAN |
| • Port-based VLANs |
| • Auto Surveillance VLAN 2.0 (ASV2.0) 2 |
| • Voice VLAN |
| • Asymmetric VLAN |
| • VLAN Groups |
| - 128 VLAN groups |
| - Max. 4094 VLANs |
| • GVRP 2 |
| Quality of Service (QoS) | • CoS based on: |
| - Switch Ports |
| - 802.1p priority queues |
| - ToS |
| - IP Precedence |
| • Bandwidth management |
| - Based on the port (incoming, with a minimum step of up to 64 Kbps) |
| • Queue processing |
| - Strict Priority |
| - Weighted Round Robin (WRR) |
| • 4 queues per port |
| AAA | • Web-based access control (WAC) 2 |
| • 802.1X authentication 2 |
| • RADIUS 2 |
| Security | • D-Link Safeguard Engine |
| • Segmentation of traffic |
| • Broadcast / Multicast / Unicast Storm Protection |
| • Preventing DoS attacks |
| • SSL |
| • Port Security |
| OAM | • Cable Diagnostics |
| • Dying Gasp 2 |
| • DDM digital monitoring function (Digital Diagnosics Monitoring) 2 |
| Control | • Web interface (support for IPv4 / IPv6) |
| • D-Link Network Assistant (DNA) |
| • Command line interface (CLI) |
| • SNTP |
| • SNMP v1 / v2c |
| • SNMP v3 2 |
| • SNMP Trap |
| • Telnet server |
| • System log |
| • DHCP client |
| • TFTP client |
| • LLDP |
| • D-Link Discovery Protocol (DDP) |
| • Support for multiple software versions |
| • Support for multiple versions of configurations |
| Technology Green | • Energy saving due to: |
| - Connection Status Definitions |
| - Turn off indicators |
| - Turn off the ports |
| - Using sleep mode |
| MIB / RFC | • RFC768 UDP |
| • RFC791 IP |
| • RFC792 ICMP |
| • RFC793 TCP |
| • RFC826 ARP |
| • RFC1213 MIB II |
| • RFC1493 Bridage MIB |
| • RFC1907 SNMPv2 MIB |
| • RFC2668 802.3 MAU MIB |
| • RFC4133 Entity MIB |
| • RFC4363 IEEE 802.1p MIB |
| • ZoneDefense MIB |
| • Private MIB |
| Physical parameters |
| Dimensions (L x W x H) | • 210 x 171.2 x 48 mm |
| The weight | • 2.5 kg |
| terms of Use |
| Food | • 12-48 VDC (with the ability to connect up to two power sources (not included in the scope of delivery)) |
| • Power adapter (not included): |
| - Input: 100-240 V AC, 50/60 Hz |
| - Output: 12 V, 3.33 A |
| Noise level | • 0 dB |
| Protection against static electricity | • Support of static electricity protection on copper ports (IEC61000-4-5 standard) |
| Ventilation system | • Passive |
| Temperature | • Operating: -40 to 65 ° C |
| • Storage: -40 to 85 ° C |
| Humidity | • Operating: 0% to 95% non-condensing |
| • When stored: 0% to 95% non-condensing |
| Contents of delivery |

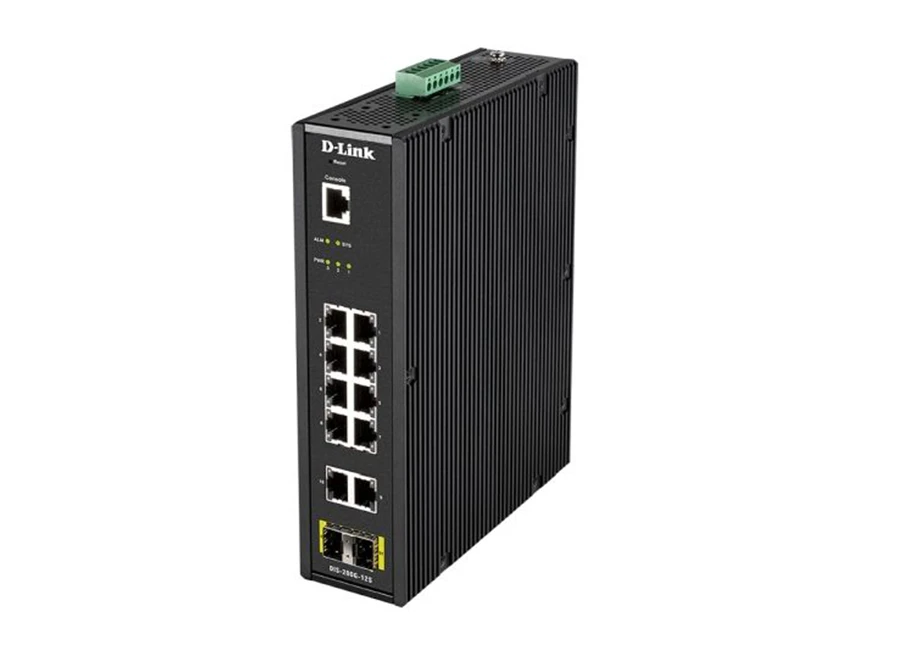

| • Switch DIS-200G-12S |
| • Console cable with RJ-45 connector |
| • Wall mounting kit |
| • DIN rail mounting kit |
| • Quick Installation Guide |
| • CD |
| Other |
| EMI | • CE |
| • FCC |
| • BSMI |
| • C-Tick |
| Security | • UL |
