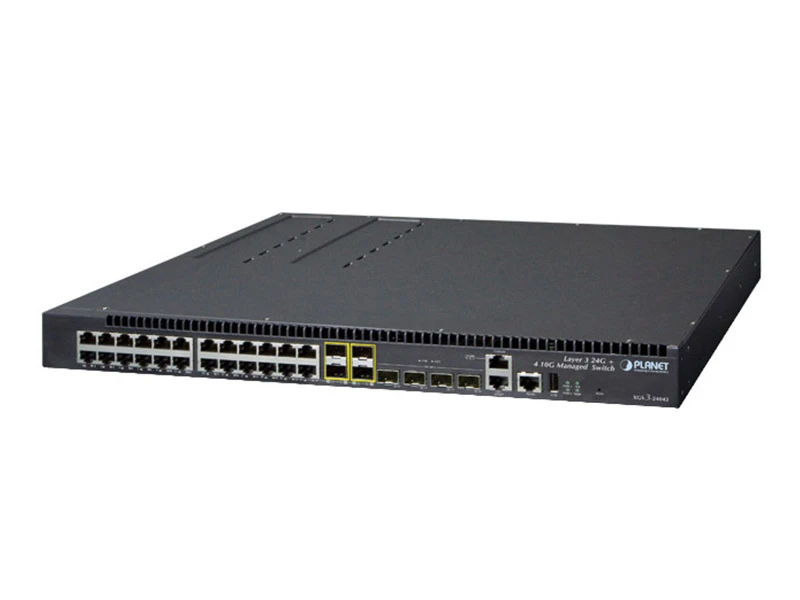

Planet XGS3-24042 Layer 3 Ethernet Switch

Teknik Özellikler

Hardware Specifications
Hardware Version 3
Copper Ports 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/Mini-GBIC Slots 4 100/1000BASE-X SFP combo interfaces with Port-21 to Port-24
Supports 100/1000Mbps dual mode and DDM
SFP+ Slots 4 10GBASE-SR/LR SFP+ interface (port-25 to port-28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 128Gbps/non-blocking
Switch Throughput 95.23Mpps
Address Table 16K MAC address table with auto learning function
Shared Data Buffer 1.5MB
Flow Control Back pressure for half -duplex
IEEE 802.3x pause frame for full -duplex
Jumbo Frame 10K
LED System:
 PWR/MGMT/SYS
Ports:
 10/100/1000T RJ45 Port: LNK/ACT
 1/10G SFP+ slot: LNK/ACT
Dimensions (W x D x H) 440 x 320 x 43.6 mm, 1U height
Weight 4503g
Power Consumption 12 watts/41.17 BTU (System)
27 watts/92.64 BTU (Ethernet full loading)
Power Requirements AC 100~240V, 50/60Hz
IPv4 Layer 3 Functions
IP Routing Protocol ■ Static Routing
■ RIPv1/v2
■ OSPFv2
■ BGP4
■ Policy-based Routing(PBR)
■ LPM Routing
Multicast Routing Protocol IGMP v1/v2/v3
IGMP Proxy
■ DVMRP
■ PIM-DM
■ PIM-SM
■ PIM-SSM
■ Any Cast RP
■ MSDP
■ Illegal Multicast Source Detect
Layer 3 Protocol ■ VRRP
■ URPF
■ ECMP
■ BFD
Routing Interface Per VLAN
IPv6 Layer 3 Functions
IP Routing Protocol ■ RIPng
■ OSPFv3
■ BGP4+
■ IPv6 LPM Routing
■ IPv6 Policy-based Routing(PBR)
Multicast Routing Protocol ■ MLD Snooping
■ IPv6 Muticast VLAN
■ MLDv1/v2
■ PIM-SM/DM for IPv6
■ IPv6 Any Cast RP
■ IPv6 ACL
■ IPv6 QoS
Layer 3 Protocol ■ IPv6 VRRPv3
■ IPv6 URPF
■ IPv6 RA
■ 6to4 Tunnel
■ Configured Tunnel
■ ISATAP Tunnel
■ GRE Tunnel
■ ICMPv6
■ ND,DNSv6
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port Status Display each port’s speed duplex mode, link status, flow control status and
auto negotiation status
VLAN 802.1Q tagged based VLAN, up to 4096 VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN
Bandwidth Control TX/RX/Both
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 12 groups with 8 ports per trunk group
QoS 8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
 - IEEE 802.1p CoS/ToS
 - IPv4/IPv6 DSCP
 - Port-based WRR
Multicast IGMP v1/v2/v3 snooping
Querier mode support
MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Access Control List Supports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 512 entries
Bandwidth Control At least 64Kbps step
Security Supports MAC + port binding
IPv4/IPv6 + MAC + port binding
IPv4/IPv6 + port binding
Supports MAC filter
ARP scanning prevention
Authentication IEEE 802.1x port-based network access control
  AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
Management Function
System Configuration Console, Telnet, SSH, Web browser, SNMP v1, v2c and v3
Management Supports both IPv4 and IPv6 addressing
Supports the user IP security inspection for IPv4/IPv6 SNMP
Supports MIB and TRAP
Supports IPv4/IPv6 FTP/TFTP
Supports IPv4/IPv6 NTP
Supports RMON 1, 2, 3, 9 four groups
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
Supports IPv4/IPv6 SSH
The right configuration for users to adopt RADIUS server’s shell management
Supports CLI, console, Telnet
Supports SNMP v1, v2c and v3
Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Supports Syslog server for IPv4 and IPv6
Supports TACACS+
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Ordering Information
XGS3-24042 Layer 3 24-Port 10/100/1000T + 4-Port 10G SFP+ Stackable Managed Switch

pdfPlanet XGS3-24042 Layer 3 Ethernet Switch Pdf Dosyası4.66 MB
