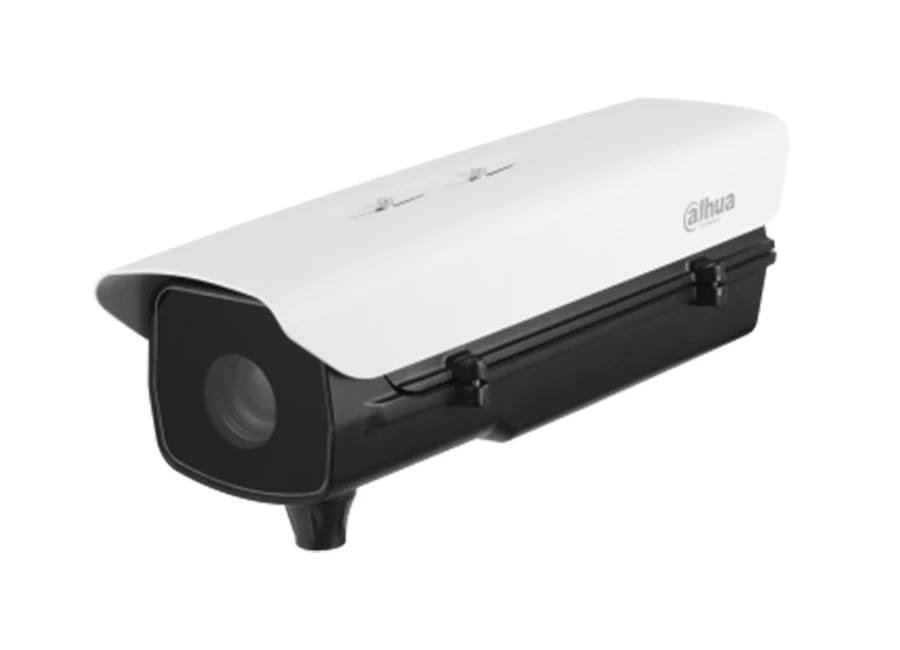

Dahua ITC352 RU2D (IR)L Trafik Bullet Kamera
Özellikler
- Adopting high-performance multi-core processor
- Adopting high-performance image sensor
- Adopting ISP function
- Adopting deep-learning intelligent algorithm
- Multiple signals,data and communicant port
- Precisely sychronizing signal input & output
- Innovative and creative on the ITS concept & implementation·
- All-in-one integrated design (trigger detection, behaviour analysis & information recognition)
- Impeccable low-energy comsumption AIO design
- Build-in HD camera,interface connector,easy to install and debug.
Teknik Özellikler
| Technical Data | |
| Image Sensor | 1/1.8 inch Global Shutter CMOS |
| Max. Resolution | 3 MP, 2048 (H)×1536 (V) |
| Lenses | Motorized/ Auto Iris(DC) |
| Focal Length | 10 ~ 40mm |
| ANPR Distance | 18 ~ 25 m |
| Video Frame | Up to 25 fps |
| Camera Speed Shutter | 1/50 ~ 1/100000 |
| Day/Night | Auto ICR (with polarized lens and infrared filter) |
| Lamp | White /IR light |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Network | |
| Interoperability | CGI, SDK, Onvif |
| Web Viewer | IE8,IE9,IE10,IE11,Chrome V33, V41 |
| Protocol | IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS |
| Intelligence | |
| License Plate Recognition (LPR) | Embedded |
| Vehicle Detection | Supports vehicle video detection with high detection rate; supports vehicle direction detection |
| Detection Model | Supports Video detection or radar detection |
| Vehicle Data Structuring | vehicle brand, vehicle size, vehicle color detection and etc. |
| Vehicle Size Detection | Supports 11 vehicle sizes detection:large bus, heavy truck, medium truck, sedan, minivan, light truck, SUV, MPV, medium bus, pick-up and minicar. |
| Vehicle Color Detection | Supports 11 colors detection(daytime):white, black, blue, red, yellow, green, pinkish purple, gray, brown, orange and silver. |
| Violation Detection | Overspeed, red light running, etc. |
| Flow Detection | Statistical data of each lane: time, date, statistical period, lane, traffic flow, occupancy, headway, average speed, queue length, vehicle type |
| Video Tamper-proofing | Video/Image with watermark tech and check function |
| Power,Size,Environment | |
| Power | AC110~220V, Max. 30W |
| Working Environment | Temperature -40°C~+80°C, Humidity 10%~90% |
| Dimensions | 544mm × 195.5mm × 171.5mm |
| Ingress Protection | IP67 |
| Weight | 8kg |
| Certifications | |
| Certifications | CE |
| FCC | |
| Interface | |
| Ethernet | 2 × 100/1000M Ethernet port |
| Extra Interface | 2 × USB and 1 ×FD Card |
| RS485 | 2 |
| RS232 | 4 |
| Alarm I/O | 2 × Alarm out / 4 × Alarm in |
| 7 × Optical coupling output | |
Dahua ITC352 RU2D (IR)L Trafik Bullet Kamera Pdf Dosyası319.91 KB
Teknik Kısa
Çözünürlük : 3MP
Ses : Var
Irled : Var
