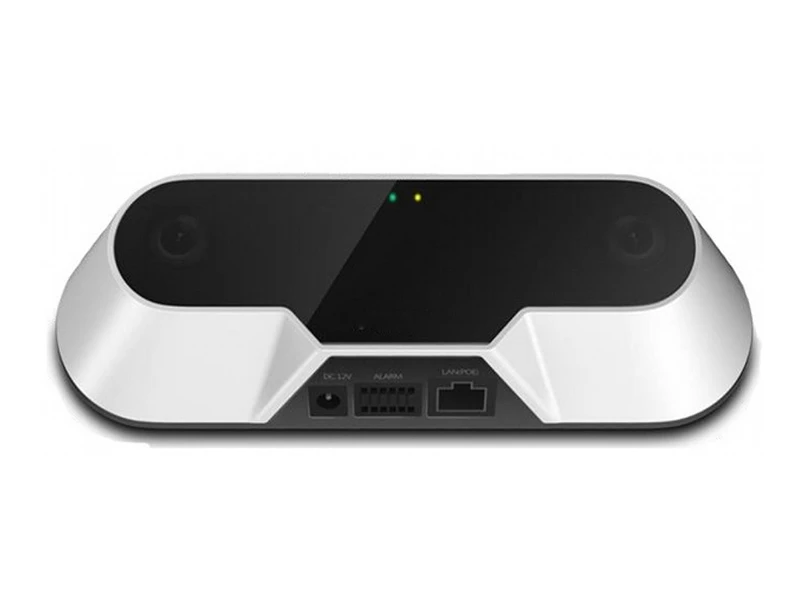

Hikvision iDS 2CD6810F/C Analitik Ip Kamera
Özellikler
- Support real-time people entering/exiting/passing by data.
- Support statistical traffic report based on configurable time interval (day/week/month/year).
- Flash memory storing people counting data
- 1/3'' progressive scan CMOS sensor
- Support Smart Codec, high bandwidth efficiency, low time delay and optimized bit rate.
- Support 3D DNR.
- Black and white image
- Support teo video streams
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Shutter time | 1/25 s – 1/10,000 s |
| Lens | 2.0/2.8mm optional |
| Lens Mount | M12 |
| Adjustment Range | 2.0 mm, horizontal field of view: 100° |
| 2.8 mm, horizontal field of view: 82° | |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264 |
| H.264 code profile | Baseline Profile/Main Profile |
| Video bit rate | 32Kbps~8Mbps |
| Dual Stream | Yes |
| Image | |
| Max. Image Resolution | 640 × 960 |
| Frame Rate | Main stream: |
| 50Hz: 25fps (640 × 480) | |
| 60Hz: 24fps (640 × 480) | |
| Sub Stream | 50Hz: 25fps (640 × 960) |
| 60Hz: 24fps (640 × 960) | |
| Image Settings | Brightness is adjustable by client software or web browser |
| 3D DNR | Support |
| ROI | Support 1 fixed region for each stream |
| Network | |
| Alarm Trigger | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Intelligent | |
| People Counting | Support separate counting of people entering, exiting, and passing by |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port, 1 RS-485 interface |
| Alarm | 1 input, 1 output (up to DC 24 V, 1A or AC 110 V, 500mA ) |
| Reset Button | Yes |
| General | |
| Operation Condition | -10 °C to + 40 °C (+14 °F to +104 °F), Humidity 10% to 90%, no condensing |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | Max. 7 W |
| Dimensions | 194 × 70.2 × 35.8 mm (7.64″ × 2.76″ × 1.4″) |
| Weight | 271 g (0.6 lb) |
Hikvision iDS 2CD6810F C Analitik Ip Kamera Pdf Dosyası891.18 KB
Hikvision iDS 2CD6810F/C Analitik Ip Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası2.59 MB
Teknik Kısa
Depolama : Var
Ses : Var
