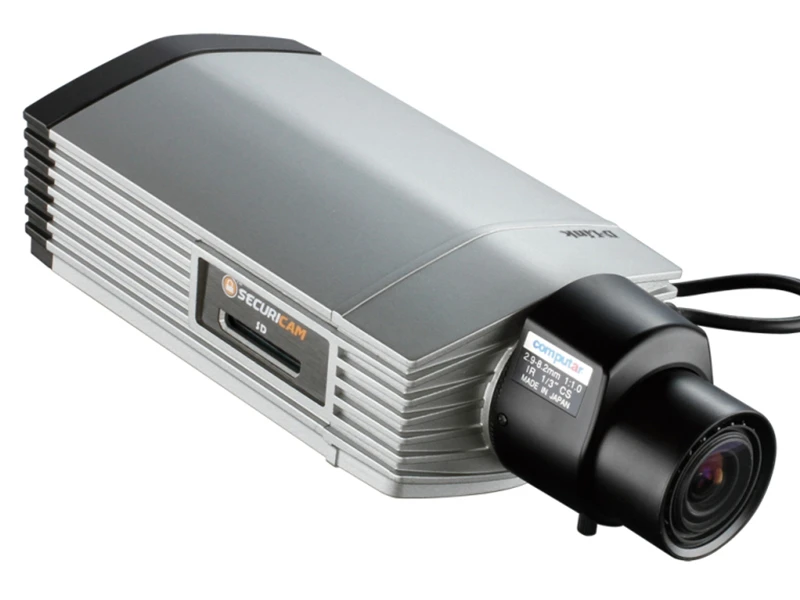

D-Link DCS 3714 IP HD Box Kamera
Teknik Özellikler
| General features: |
| Camera Hardware Profile |
| 1/3” HD Resolution Progressive CMOS sensor |
| Minimum illumination: 0.1 lux (Color); 0.02 lux (B/W) |
| Built-in Infrared-Cut Removable (ICR) Filter module |
| DC iris varifocal length: 2.9 mm to 8.2 mm |
| Aperture: F1.0 |
| Angle of view: |
| (H) 95° to 35.6° |
| (V) 50.9° to 20° |
| (D) 112.3° to 41° |
| Minimum object distance: 0.5 M |
| Image Features |
| Configurable image size, quality, frame rate, and bit rate |
| Time stamp and text overlays |
| Configurable motion detection windows |
| Configurable privacy mask zones |
| Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, and sharpness |
| Video Compression |
| Simultaneous H.264/MPEG-4/MJPEG format compression |
| JPEG for still images |
| H.264/MPEG-4 multicast streaming |
| Video Resolution |
| 16:9 - 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176 up to 30 fps |
| 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240 up to 30 fps |
| Audio Support |
| AAC |
| G.711 |
| External Device Interfaces |
| 2 DI / 1 DO interface |
| 12 V DC, 100 mA Output |
| RS-485 |
| Audio input / output |
| Video output |
| SD/SDHC/SDXC card Slot, accepts cards up to 64 GB |
| Network Protocols |
| IPv6 |
| IPv4 |
| TCP/IP |
| UDP |
| ICMP |
| DHCP client |
| NTP client (D-Link) |
| DNS client |
| DDNS client (D-Link) |
| SMTP client |
| FTP client |
| HTTP / HTTPS |
| Samba client |
| PPPoE |
| UPnP port forwarding |
| RTP / RTSP/ RTCP |
| IP filtering |
| QoS |
| CoS |
| Multicast |
| ONVIF compliant |
| SNMP |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP authentication |
| System Requirements |
| Operating System: Microsoft Windows 8/7/Vista/XP, iOS or Android |
| Web Browser: Internet Explorer 7 or higher, Firefox, Chrome, Safari |
| Event Management |
| Motion detection |
| Event notification and uploading of snapshots/video clips via e-mail or FTP |
| Supports multiple SMTP, and FTP servers |
| Multiple event notifications |
| Multiple recording methods for easy backup |
| Remote Management |
| Configuration accessible via web browser |
| Take snapshots/video clips and save to local hard drive |
| D-ViewCam™ System Requirements |
| Operating System: Microsoft Windows 8/7/Vista/XP |
| Web Browser: Internet Explorer 7 or higher |
| Protocol: Standard TCP/IP |
| D-ViewCam™ Software Functions |
| Remote management/control of up to 32 cameras |
| Supports all management functions provided in web interface |
| Viewing of up to 32 cameras on one screen |
| Scheduled motion-triggered or manual recording options |
Fiziksel Özellikler
| Physical & Enviromental |
| Dimensions |
| 187.1 x 79.7 x 52.9 mm |
| Weight |
| 545 +/-5% grams |
| Power |
| Input: 100 to 240 V AC, 50/60 Hz , 802.3af PoE (class 2) |
| Output: 12 V DC, 1.5 A |
| Maximum Power Consumption |
| 4.8 +-5% Watt |
| Temperature |
| Operating: 0° to 40°C |
| Storage: -20° to 70°C |
| Humidity |
| Operating: 20% to 80% non-condensing |
| Storage: 5% to 95% non-condensing |
| Certifications |
| CE (Class A) |
| CE LVD (EN60950-1) |
| FCC (Class A) |
| CTICK (Class A) |
D-Link DCS 3714 IP HD Box Kamera Pdf Dosyası552.42 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1MP (720P)
