Açıklama

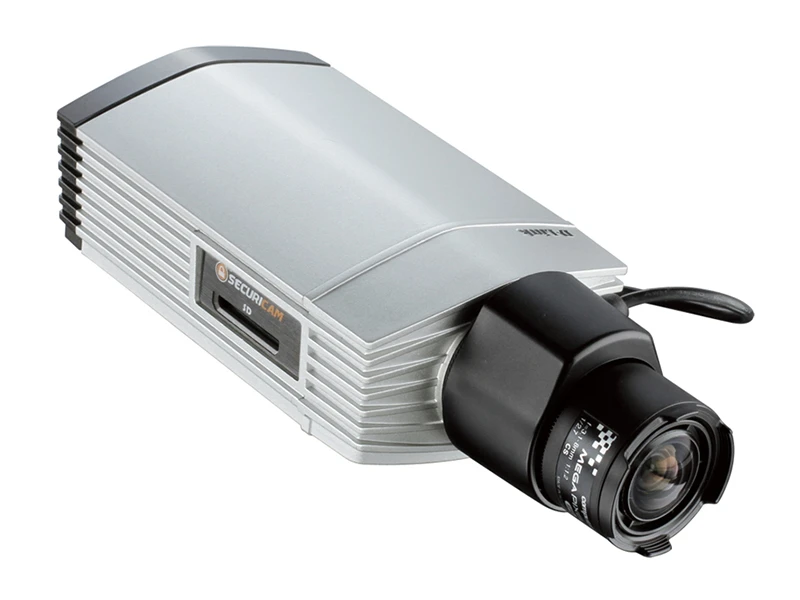

D-Link DCS 3716 IP Box Kamera
Teknik Özellikler
| Genel Özellikler |
| Camera Hardware Profile |
| • Sony Exmor 1/2.8” 3 Megapixel progressive CMOS sensor |
| • Minimum Illumination: 0.5 lux (Color); 0.05 lux (B/W) |
| • Built-in Infrared-Cut Removable (ICR) Filter module |
| • WDR SN ratio : 100 dB |
| • 10X digital zoom |
| • DC iris Varifocal length: 3.1 mm to 8.0 mm |
| • Aperture: F1.2 |
| • Angle of view: |
| (H) 38.7° to 95.9° |
| (V) 29.1° to 71.0° |
| (D) 48.3° to 123.1° |
| Image Features |
| • Configurable image size, quality, frame rate, and bit rate |
| • Time stamp and text overlays |
| • Configurable motion detection windows |
| • 3 Configurable privacy masks zone |
| • Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness |
| Video Compression |
| • Simultaneous H.264/MPEG-4/MJPEG format compression |
| • JPEG for still images |
| Video Resolution |
| • 16:9 - 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 |
| • 4:3 - 2048 x 1536, 1600 x 1200, 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 |
| • 3M (2048x1536) resolution up to 15 fps, and other resolutions support frame rates up to 30 fps |
| Audio Support |
| G.726 |
| External Device Interfaces |
| • 2 DI / 1 DO |
| • 12 V DC, 200 mA Output |
| • RS-485 |
| • SD card slot |
| • Audio input / output |
| • Video output |
| Network Protocols |
| IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, IGMP, ONVIF compliant |
| Security |
| • Administrator and user group protection |
| • Password authentication |
| System Requirements for Web Interface |
| • Operating System: Microsoft Windows 7/Vista/XP/2000 |
| • Browser: Internet Explorer, Firefox, Netscape, Opera |
| Event Management |
| • Motion detection |
| • Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP |
| • Supports multiple HTTP, SMTP, and FTP servers |
| • Multiple event notifications |
| • Multiple recording methods for easy backup |
| Remote Management |
| • Configuration accessible via web browser |
| • Take snapshots/video clips and save to local hard drive or NAS via web browser |
| Mobile Support |
| • Windows 7/Vista/XP system, Pocket PC, or mobile phone with 3GPP playback support |
| • D-ViewCam™ |
| System Requirements |
| • Operating System: Microsoft Windows 7/Vista/XP |
| • Web Browser: Internet Explorer 6 or higher |
| • Protocol: Standard TCP/IP |
| D-ViewCam™ Software Functions |
| • Remote management/control of up to 32 cameras |
| • Viewing of up to 32 cameras on one screen |
| • Supports all management functions provided in web interface |
| • Scheduled motion triggered, or manual recording options |
| Power Input |
| 12 V DC 1.25 A, 50/60 Hz, 802.3af PoE |
| Max. Power Consumption |
| 4 watts |
| Operating Temperature |
| 0 to 40 ˚C (32 to 104 ˚F) |
| Storage Temperature |
| -20 to 70 °C (-4 to 158 °F) |
| Humidity |
| 20% to 80% non-condensing |
| Weight |
| 580 g |
| Certifications |
| CE (Class A), CE LVD (EN60965-1), FCC (Class A), ICES-003, C-Tick |
Teknik Kısa
Çözünürlük : 3MP
