Açıklama

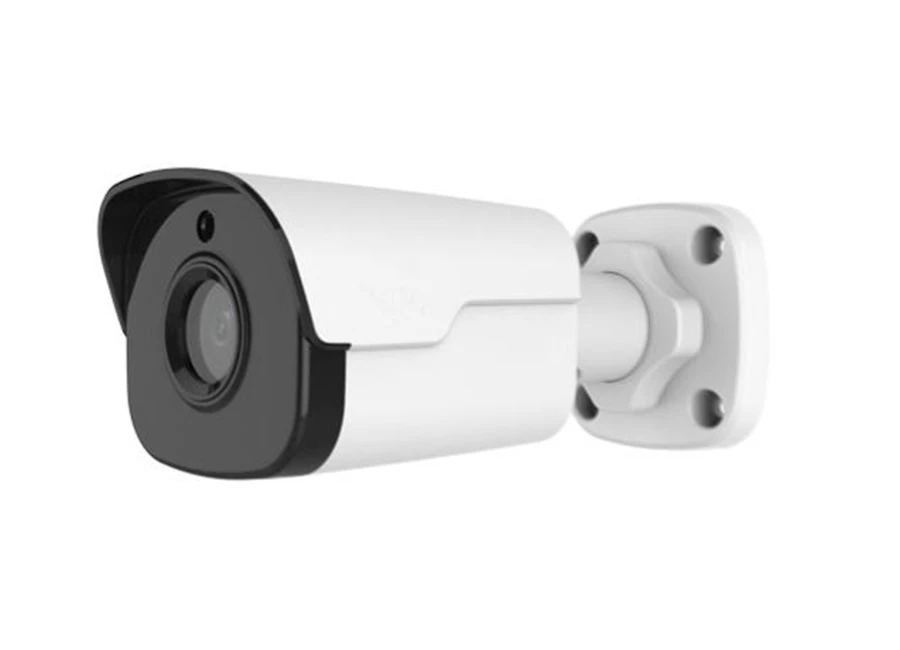

DCODE Exclusive DEC3124ER3 DPF60 IP Mini Bullet Kamera

Özellikler

Day/night functionality
SmartIR ,up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
SD Card
Ultra 265,H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor format
ONVIF Conformance
Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP67
3-Axis

Teknik Özellikler

DEC3124ER3-DPF40					DEC3124ER3-DPF60
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F2.0				6.0mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	4mm	90		5.2	18.1		9.1
	6mm	135		54	27		13.5
Angle of View(H)	78.9°				49.9°
Angle of View (V)	39.6°				27°
Angle of View (O)	97.1°				61.4°
Adjustmentangle	Pan: 0°~360°		Tilt: 0°~90°			Rotate:0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour:0.03Lux (F2.0, AGC ON)
	0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps;
	Sub Stream:2MP (1920×1080): Max. 30 fps;
	Third Stream:D1(720×576) : Max. 30fps
9:16 Corridor Mode	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge Storage	Micro SD, Up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC±25%,PoE (IEEE802.3 af)
	Power consumption: Max 6.5W
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm(6.2” × 2.5” × 2.5”)
Weight	0.45 kg (0.99lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection	IP67
Reset Button	Supported
