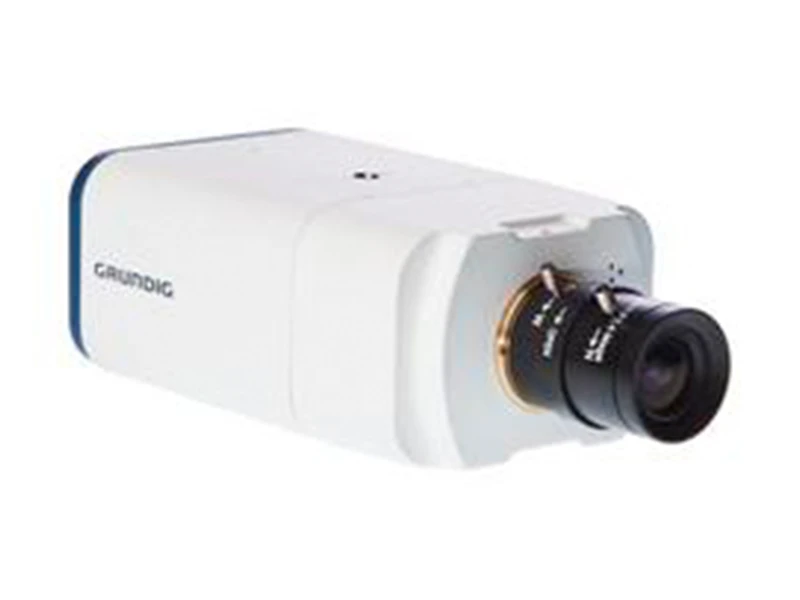

Grundig GCI F0505B IP HD Box Kamera
Teknik Özellikler
| Image Sensor : 1/2.8" Progressive Scan CMOS, 3 Megapixels |
| Pixels - Total : 2048 (H) x 1536 (V) |
| Col/B&W : On/Off/Auto, IR-cut filter : removable (ICR) |
| Sensitivity Colour : 0.5 Lux @ F1.2 (IRE50), 0.2 Lux @ F1.2 (IRE30) |
| Sensitivity : B&W 0.1 Lux @ F1.2 (IRE50), 0.02 Lux @ F1.2 (IRE30) |
| Lens Mount : C/CS mount |
| Lens Drive : Type Auto iris (DC) |
| Shutter Speed : 1 sec to 1/10,000 sec |
| BLC : On/Off |
| WDR : Off/Low/Middle/High |
| Digital Noise Reduction (DNR) : On/off 2D/3D Noise Filter |
| Motion Detection : On/ Off/ Sensitivity/ Area setting |
| Tampering Alarm : On/Off |
| Privacy zones : 5 zones, rectangle |
| White Balance : ATW, AWB, Manual |
| Digital Zoom : Yes |
| Camera ID : 20 character |
| Alarm Inputs : 1 |
| Alarm Outputs : 1 |
| Web Browser : MS Internet Explorer 6.0 (or higher), Firefox, Google Chrome, Safari |
| Number of Clients : Up to 20 user |
| Video Compression : H.264, MJPEG |
| Video Resolution : 2048x1536 (10fps), 1920x1080p(25fps), 1280x1024(25fps), 1280x720(25fps), 1024x768(25fps),etc. |
| Video Streaming Quad stream: max.: H.264+H.264+H.264+H.264 or H.264+H.264+H.264+MJPEG |
| Network Protocol : IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, DHCP, PPPoE, UPnP, SMTP, ICMP, IGMP, SNMP, IEEE802.1x, QoS, ONVIF, FTP |
| SD memory : supports up to 32 GB capacity of micro SD/SDHC memory |
| Alarm Event : Alarm Input, Motion Detection or Schedule: Image transfer or alarm message by FTP, Image transfer or alarm message by E-mail, recording on SD-card and enable alarm output |
| Audio Compression : G.726, G.711 |
| LED Indicator : Power, link, active |
| Video Outputs : 1Vpp, BNC |
| Input/Output sockets : Video OUT(BNC), Power(DC Jack), RJ-45, Micro SD Card Slot, Alarm Terminal 4-Pin(Alarm In 2-Pin, Alarm Out 2-Pin), Audio (2 mini Jack 3.5mm) |
| Firmware Upgrade : Firmware upgrade by Web Browser |
| Configuration : Upload & Download configuration on remote PC |
| Operating Temperature : -10°C ~ +50°C |
| Humidity : 10 ~ 90% no condensation |
| Regulation : CE, FCC, RoHS Compliant |
| Supply Voltage : 12 VDC / PoE IEEE 802.3af |
| Power Consumption : 4 W |
| Weight : 0.36 kg |
| Dimensions w*h*d : 76 x 53 x 126 mm |
Teknik Kısa
Çözünürlük : 3MP
Depolama : Var
Ses : Var
Depolama : Var
