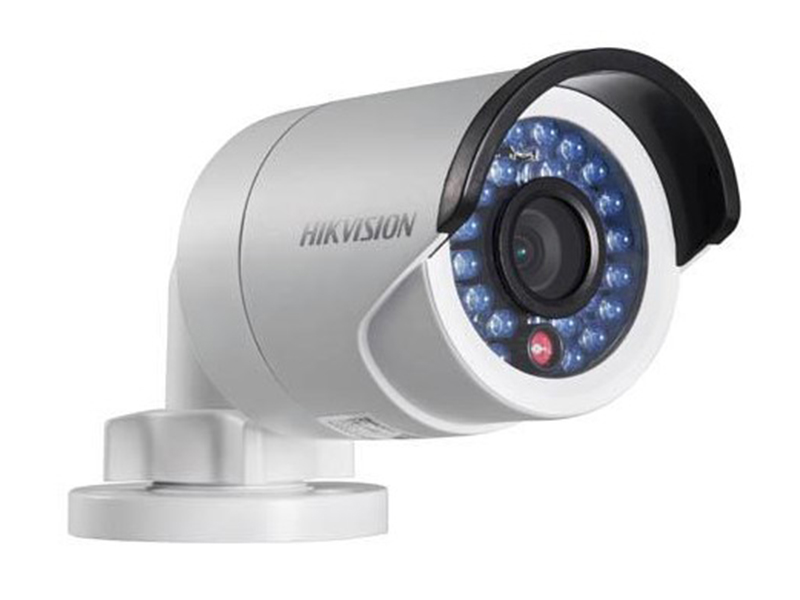

Haikon DS 2CD2022WD I IP HD Bullet Kamera
Özellikler
- Up to 2 Megapixel High Resolution
- Full HD1080p Video
- Dual Video Streams
- 4 mm or 6 mm Fixed Lens
- 120 dB Wide Dynamic Range
- 3D Digital Noise Reduction
- Smart Features
- PoE (802.3af)
- IR Range: 30 Meters (~100 feet)
- IP67 Protection
Teknik Özellikler
| Camera | |
| Image Sensor: | 1/2.8” CMOS progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | 0.028 lux @ (f/2.0, AGC on), lux with IR |
| Shutter time: | 1/3 s to 1/10,000 s |
| Lens: | 4 mm @ f/2.0 (6 mm optional) |
| Angle of view: 85°(4 mm), 52°(6 mm) | |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Compression Standard | |
| Video Compression: | H.264/MJPEG/H.264+ |
| H.264 Type: | Main profile |
| Video bit rate: | 32Kbps~16Mbps |
| Dual Stream: | Yes |
| Image | |
| Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 30 fps (1920 x 1080, 1280 x 960, 1280 x 720) |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Yes |
| 3D DNR: | Yes |
| Day/Night Switch: | IR cut filter with auto switch |
| Network | |
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI |
| Smart Feature-set | |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 5 W |
| Weather Proof: | IP67 |
| IR Range: | 30 meters |
| Dimensions: | 60.4×76.9×139.2 mm (2.4” × 3.0” × 5.5”) |
| Weight: | 500g (1.1 lbs) |
Haikon DS 2CD2022WD I IP HD Bullet Kamera PDF Dosyası213.78 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Irled : Var
