Açıklama

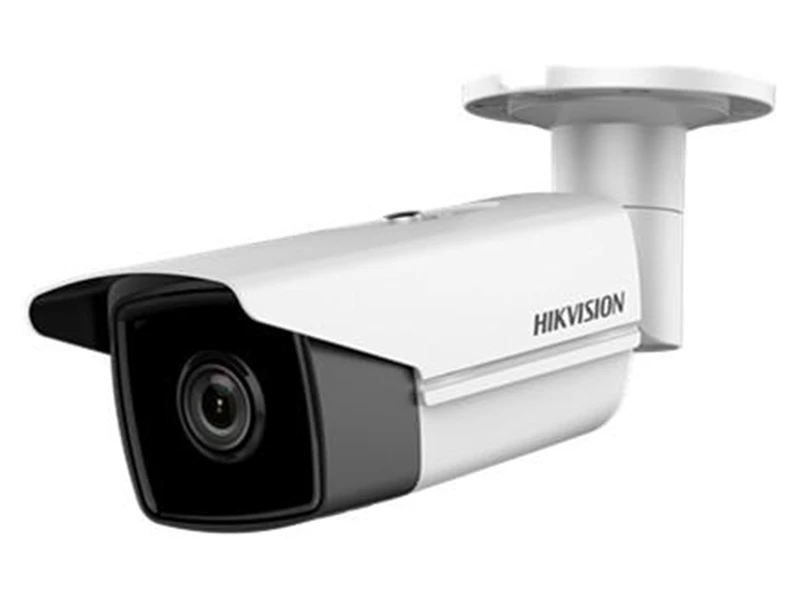

Haikon DS 2CD2T25FWD I5 IP HD Bullet Kamera

Özellikler

2 MP IR Bullet Kamera (Ultra Düşük Işık, 50mt) 1/2.8” PS CMOS
4mm sabit lens
Üçlü akış desteği (Third Stream)
Slowshutter
50mt IR
3D DNR, 120dB WDR
BLC, ROI, ICR, 0lux with IR
H.265+/H.265/H.264+/H.264/MJPEG
Analizler (Hat İhlali, Alan İhalali, Unutulan Eşya, Nesne Kaybolması)
maskeleme, 128GB mSD desteği
IP67, DC12V & PoE

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.005 lux @(F1.2, AGC ON), lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Support
Lens	2.8 mm, horizontal field of view: 108°
	4 mm, horizontal field of view: 86.4°
	6 mm, horizontal field of view: 52°
	8 mm, horizontal field of view: 40°
	12 mm, horizontal field of view: 25°
Lens Mount	M12
Adjustment Range	Pan: ° to 360°, tilt: ° to 90°, rotate: ° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video bit rate	32Kbps~16Mbps
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
Frame Rate	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Main Stream	50Hz: 25fps (640 × 360, 352 × 288)
Main Stream	60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
Third Stream	60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR
Regional Cropping	Support
ROI	Support 1 fixed region for each stream, and face dynamic tracking
Day/Night Switch	Auto/Scheduled
Network
System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Smart Feature-set
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Consumption	-I5: 12 VDC ± 25%, 7 W; PoE, 9 W
Power Consumption	-I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
Weather Proof	IP67
Dimensions	Camera: Φ105 × 299.7 mm (Φ4.13″ × 11.80″)
Dimensions	Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
Weight	Camera: 1200 g (2.65 lb.)
