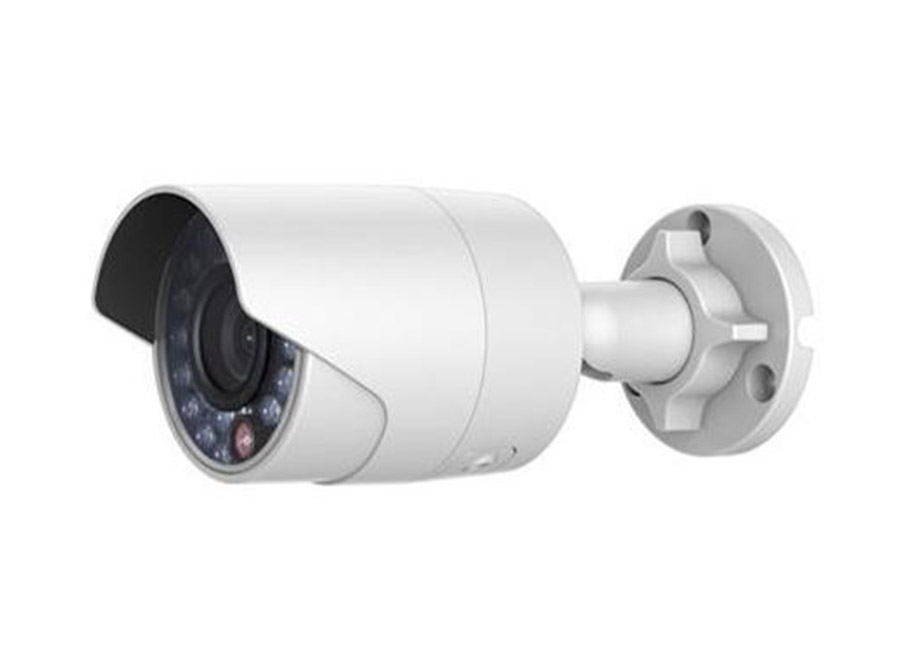

Hikvision DS 2CD201PF I IR IP Bullet Kamera
Özellikler
- 1.3MP high resolution
- HD real-time video
- 3D DNR & DWDR & BLC
- IR LEDs: up to 30m
- IP67
- PoE
- Built-in Micro SD/SDHC/SDXC card slot, up to 128G
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR | |
| Shutter time | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0, Angle of view: 85° |
| (6mm optional) | |
| Lens Mount | M12 |
| Auto Iris | DC drive |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| Video bit rate | 32Kbps~8Mbps |
| Dual Stream | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Frame Rate | 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480) |
| 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| 3D DNR | support |
| ROI | support |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Wi-Fi Specification (-W) | |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Modulation Mode | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Wireless Range | 50m(depend on environment) |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption | Max. 4.9W |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Dimensions | 70×157×62mm (2.8” × 6.1” × 2.4”) |
| Weight | 500g (1.1 lbs) |
Hikvision DS 2CD201PF I IR IP Bullet Kamera Pdf Dosyası468.15 KB
Teknik Kısa
Depolama : Var
Irled : Var
Çözünürlük : 1.3MP
