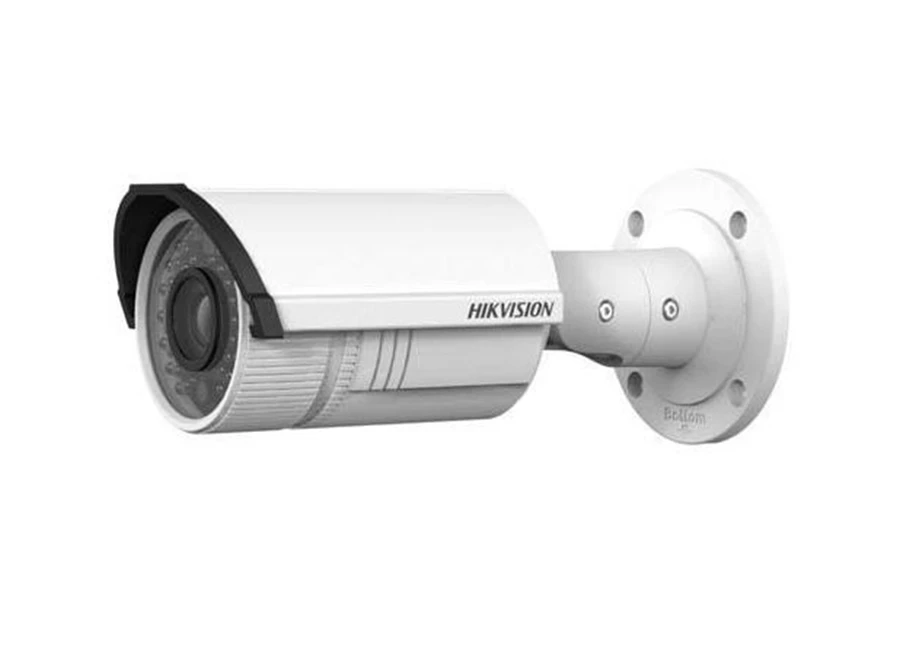

Hikvision DS 2CD2610F I IP Bullet Kamera
Özellikler
- 1.3 megapixel high resolution
- 2.8-12mm vari-focal lens
- 3D DNR & DWDR & BLC
- IP67 rating
- IR range: up to 30m
- Audio and alarm optional
- True day / night
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | 0.01lux @(F1.2,AGC ON) ,0 Lux with IR |
| 0.014lux @(F1.4,AGC ON), 0 Lux with IR | |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 2.8 - 12 mm @ F1.4,Angle of view: 113°-33.8° |
| Lens Mount | φ14 |
| Ayarlanan Aralık | Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| Video bit rate | 32Kbps~8Mbps |
| Audio Compression | -S: G.711/G.722.1/G.726/MP2L2 |
| Çift Akış | Yes |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Çerçeve Hızı | 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) |
| 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) | |
| Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
| BLC | Yes, zone configurable |
| ROI | Support |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu | Yes |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi | Max. 5.5W |
| Impact Protection | IEC60068-2-75Eh, 50J; EN50102, IK10 |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Boyutlar | Φ 140 × 99.9 mm (Φ 5.51” × 3.94”) |
| Ağırlık | 1000g |
| NOT | * “-S” series support 1-ch audio I/O and 1-ch alarm I/O |
Hikvision DS 2CD2610F I IP Bullet Kamera Pdf Dosyası485.88 KB
Teknik Kısa
Çözünürlük : 1.3MP
Irled : Var
