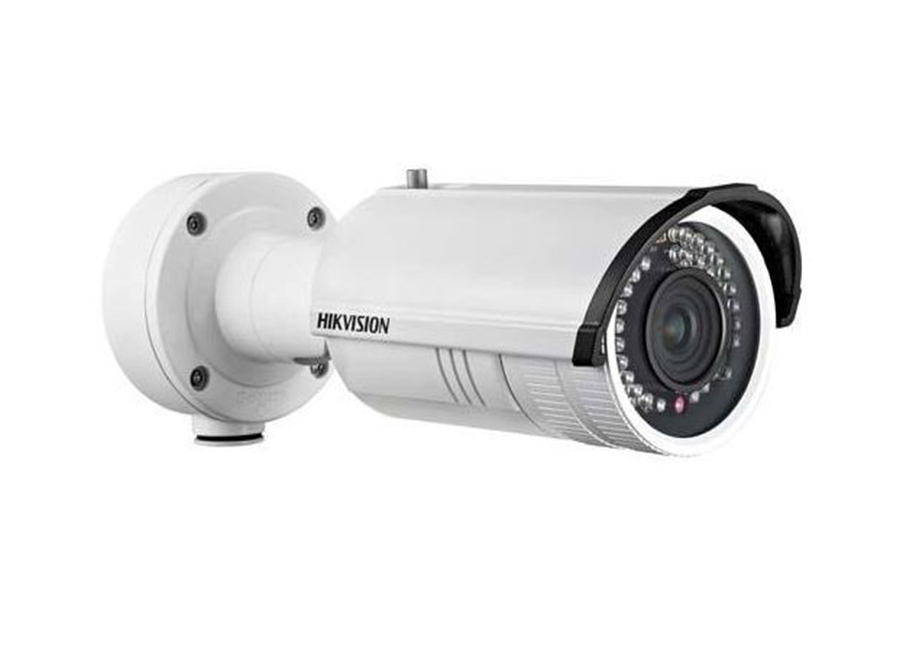

Hikvision DS 2CD4212FWD I IR IP Bullet Kamera

Özellikler

1/3" progressive scan CMOS
Up to 1280 × 960 resolution
120dB WDR, 3D DNR
Smart Codec
Smart IR
Smart Focus: Motorized VF lens(-Z)
Smart VQD
Smart Face Detection
Smart Audio Detection(-S)
Intrusion Detection
Defog, EIS, BLC
built-in heater(-H)

Teknik Özellikler

Camera
	Image Sensor	1/3" Progressive Scan CMOS
	İşaret Sistemi	PAL/NTSC
	Minimum Aydınlatma	0.01 Lux @ (F1.2, AGC ON), 0 lux with IR
	Minimum Aydınlatma	0.014 Lux @ (F1.4, AGC ON), 0 lux with IR
	Objektif Hızı	1 s to 1/100,000 s
	Lens	Non -Z:
		2.8-12mm @ F1.4, angle of view: 98.4°-30.2°
		8-20mm @ F1.6, angle of view: 35.5°-14.7°(optional)
		-Z:
		2.8-12mm @ F1.4, angle of view: 98.4°-30.2°
		8-32mm @ F1.4, angle of view: 27.8°-9.1°(optional)
	Lens Mount	φ14
	Auto Iris	DC drive
	Day& Night	IR cut filter with auto switch
	Wide Dynamic Range	120 dB
	Dijtal Gürültü Azaltma	3D DNR
	Focus	Motorized VF lens(-Z model)
Compression Standard
	Video Compression	H.264/MPEG4/MJPEG
	Video bit rate	32Kbps~16Mbps
	Audio Compression	-S: G.711/G.722.1/G.726/MP2L2
	Üçüncü Akım	Yes
	Max. Image Resolution	1280x960
	Çerçeve Hızı	WDR OFF:
		50Hz: 25fps (1280 × 960), 50fps (1280 × 720)
		60Hz: 30fps (1280 × 960), 60fps (1280 × 720)
		WDR ON:
		50Hz: 25fps (1280 × 960), 25fps (1280 × 720)
		60Hz: 30fps (1280 × 960), 30fps (1280 × 720)
	Üçüncül Akış	Independent with Main Stream and Sub Stream, up to
		50Hz: 25fps (1280 × 960)
		60Hz: 30fps (1280 × 960)
	Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
	BLC	Support
	Akıllı Buğu Giderme	Support
	EIS	Support
	ROI	Support
	Resim Yerleşimi	128 × 128, BMP 24bit, zone configurable
Network
	Network Storage	NAS (Support NFS,SMB/CIFS)
	Alarm Trigger	Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
	Protokoller	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
	Protokoller	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
	General Function	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
	System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
	Communication Interface	1 RJ45 10M / 100M Ethernet interface
	Dahili Depolama	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
General
	Operating Conditions	-30 °C – 60 °C (-22 °F – 140 °F)
		Humidity 95% or less (non-condensing)
		-H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on
	Power Supply	12 VDC ± 10%, PoE (802.3af)
	Güç Tüketimi	Max. 11 W
	Güç Tüketimi	-Z/-H: Max. 12W
	Weather Proof	IP66
	IR Range	2.8-12mm: Approx. 20 to 30 meters;
	IR Range	8-20mm/8-32mm: Approx. 50 to 80 meters
	Boyutlar	98 × 105 × 328.8 mm (3.86” × 4.13” × 12.94”)
	Ağırlık	2000 g (4.41 lbs)
	NOT	* "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
