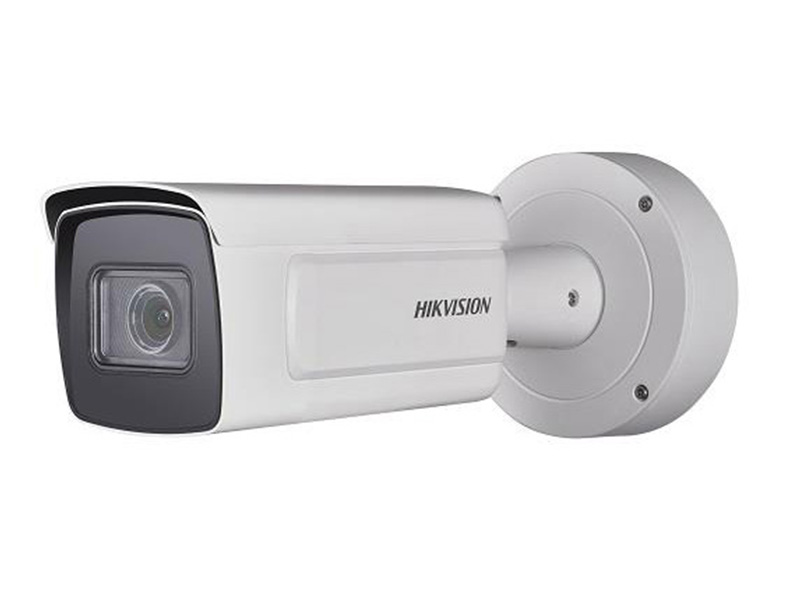

Hikvision DS 2CD7A26G0 IZHS IP Bullet Kamera

Özellikler

1/1.8" progressive scan CMOS
Full HD1080p video, up to 60fps
2.8 to 12 mm and 8 to 32 mm motor-driven lens optional
140dB WDR
Alarm I/O
Color: 0.002 Lux @(F1.2, ADC On)
H.265, H.265+. H.264, H.264+
IR range: up to 50 m for 2.8 to 12 mm lens and up to 100 m for 8 to 32 mm lens
IP67, IK10
High accuracy face detection and capture, which adopts new face detection, tracking and grading algorithms powered by deep-learning technology
Perimeter protection, based on deep learning powered target detection and classification algorithms, supports line crossing, intrusion, region entrance, and region exitFive defined streams and up to five custom streams
Built-in microSD/SDHC/SDXC card slot, up to 256 GB

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time	1 s to 1/100,000 s
Slow shutter	Yes
Lens	2.8 to 12 mm and 8 to 32 mm, Optional
Adjustment Range	Bracket, pan: 0° to 355°, tilt 0° to 90°, rotate: 0° to 360°
Wide Dynamic Range	140dB
Compression Standard
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Max. Image Resolution	1920 x 1080
Main Stream	50Hz: 25fps (704 × 576, 640 × 480)
Main Stream	60Hz: 30fps (704 × 480, 640 × 480)
Frame Rate	50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
Frame Rate	60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement	BLC, HLC, 3D DNR, Defog, EIS
Regional Cropping	Yes
BLC	Support
HLC	Support
Smart Defog	Support
EIS	Support
3D DNR	Support
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
Protocols	SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
Power Consumption	-IZS: 12 VDC, 1.2 A, 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Power Consumption	-IZHS: 12 VDC, 1.4 A, 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Impact Protection	IK10
Weather Proof	IP67
Dimensions	Camera: Φ144 × 347 mm (Φ5.7ʺ × 13.7ʺ)
Dimensions	With package: 405 × 190 × 180 mm (15.9ʺ × 7.5ʺ × 7.1ʺ)
Weight	Camera: approx. 2.45 kg (5.40 lb.)
Weight	With package: approx. 2.7 kg (5.95 lb.)
