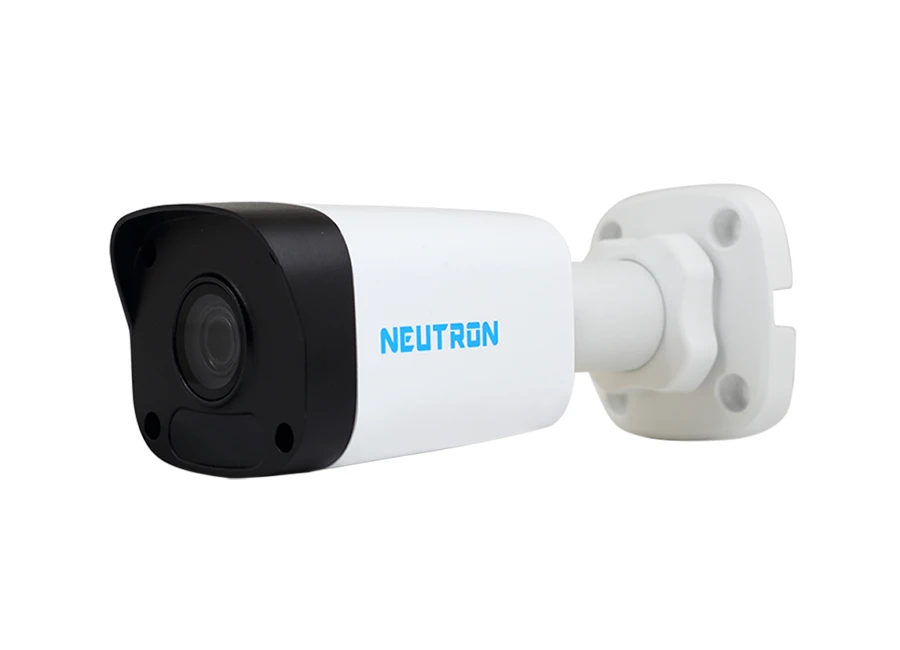

Neutron IPC2122LR3 PF60 E IR IP Bullet Kamera

Name: Neutron IPC2122LR3 PF60 E IR IP Bullet Kamera
Brand: Neutron

Depolama : Var

Çözünürlük : 2MP (1080P)

Irled : Var

IPC2122LR3-PF40-E				IPC2122LR3-PF60-E
Camera
Sensor	1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F2.0				6.0mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	4.0mm	66.7		26.7	13.3		6.7
	6.0mm	90		36	18		9
Angle of View (H)	86.5°				55.4°
Angle of View (V)	44.1°				30.2°
Angle of View (O)	106.4°				68.1°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~90°			Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.02 Lux (F2.0，AGC ON)
	0 Lux with IR on
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 1080P (1920*1080): Max. 30 fps;
	Sub Stream: 720P (1280*720): Max. 30 fps;
	Third Stream: CIF (352*288): Max. 30fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF(Profile S, Profile T), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE 802.3af)
	Power consumption: Max 4.5W
Dimensions (L × W × H)	167.3 × 62.9 × 62.7 mm (6.6” × 2.5” × 2.5”)
Weight	0.37kg (0.81lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity: 10%~90% RH(non-condensing)
Ingress Protection	IP66
Reset Button	Supported
