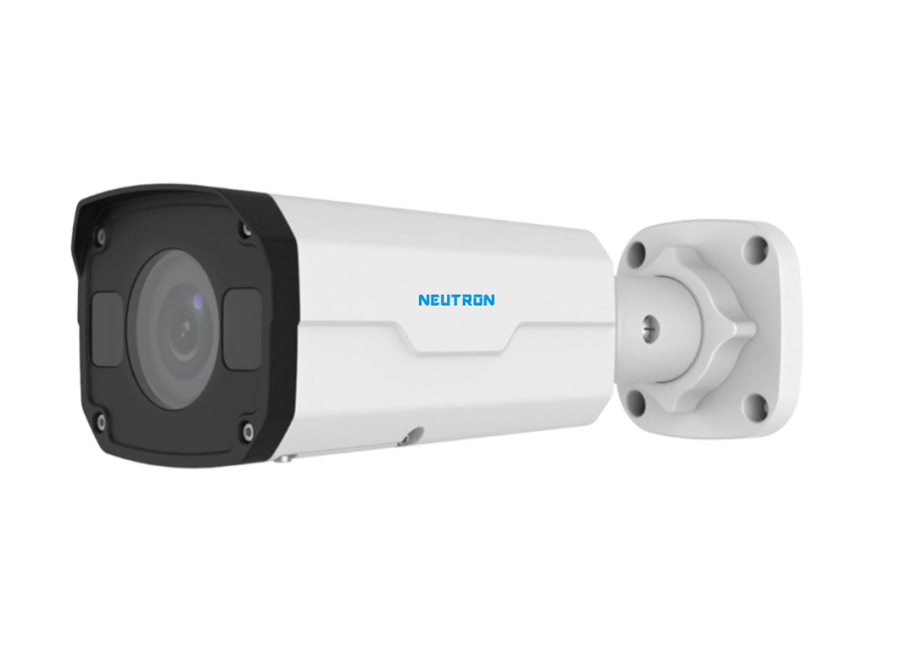

Neutron IPC2322LBR3 SPZ28 D IR IP Bullet Kamera
Özellikler
Teknik Özellikler
| IPC2322LBR3-SP-D | IPC2322LBR3-SPZ28-D | |||||||
| Camera | ||||||||
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8 ~ 12mm, manual zoom lens | 2.8 ~ 12mm, motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | ||||
| 12 | 180 | 72 | 36 | 18 | ||||
| Angle of View (H) | 112.7° ~ 28.1° | |||||||
| Angle of View (V) | 60.1° ~ 15.4° | |||||||
| Angle of View (O) | 146.5° ~ 33.2° | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.01Lux (F1.6, AGC ON) | |||||||
| 0Lux with IR on | ||||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; | |||||||
| Sub Stream: 720P (1280*720), Max 30fps; | ||||||||
| Third Stream: D1 (704*576), Max 30fps | ||||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, IPv6, 802.1X | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Interface | ||||||||
| Network | 1 RJ45 100M Base-TX Ethernet | |||||||
| Edge Storage | MicroSD, up to 256GB | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 6.5W | ||||||||
| Dimensions (L × W × H) | 240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”) | |||||||
| Weight | 1kg (2.2lb) | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
