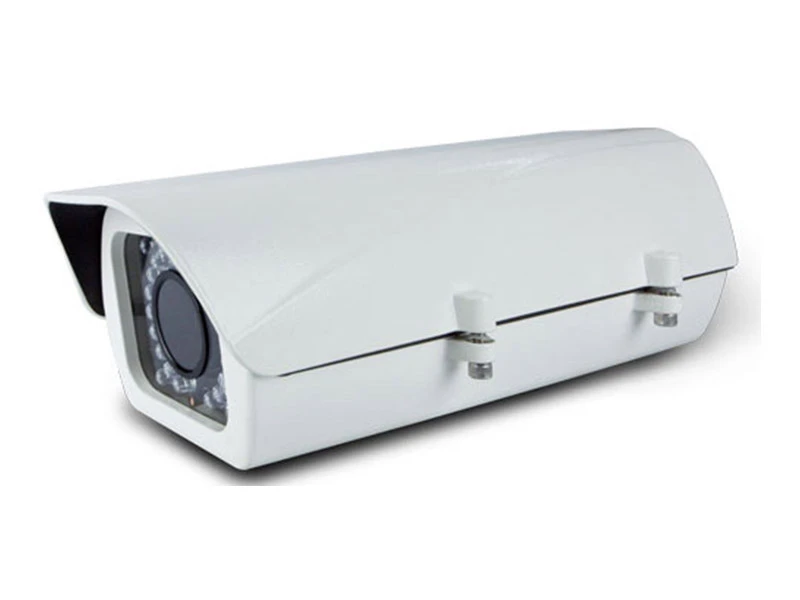

Planet ICA 2250VT Endüstriyel IP IR Dome Kamera

Özellikler

Camera

1 / 2.9” 2MP Sony Exmor image sensor
3.1~8 mm Vari-focal, Auto-iris Lens
0.5 lux minimum illumination at F1.4
Maximum resolution 1920 x 1080
Removable IR-cut Filter for day & night function
CS or C-mount Adjustment Ring for flexible Lens installation

Video / Audio

H.264 / MPEG-4 and M-JPEG video compression simultaneously
Simultaneous multi-stream support
H.264 high profile, main profile and baseline
Maxsimum resolution 1080P at 30fps
3DNR to improve picture quality at low Lux
WDR Enhancement to enhance visibility under extremely bright or dark environments
2-way audio support with enhanced audio quality

Network and Configuration

Compliant with IEEE 802.3at PoE Plus interface for flexible deployment
Auto MDI/MDI-X supported
Supports IPv6 protocol in addition to the standard IP protocol version 4 (IPv4)
RTSP / UPnP / 3GPP / HTTPS protocols selectable

Easy Installation & Management

ONVIF compliant
Built-in Samba client for NAS
SD Card local video recording supported
3GPP for 3G mobile remote applications
RS-485 interface for P/T scanner control
Digital Input / Output for integration with sensors and alarms
Cam Viewer 3 central management software supported
Built-in fan and heater with fully automatic intelligent control
Industrial design with -40 to 75 degrees C operating temperature
IP66 outdoor classifications with cable management bracket for rigorous environment

Teknik Özellikler

Camera
Image Device	2 Mega-pixel Sony Exmor image sensor
Lens	Vari-focal 3.1~8mm, F1.4 DC Auto-iris, CS mount
	Mechanical IR Cut Filter
	Angle of view (horizontal field): 79.3 x 29.8 degrees
Min. Illumination	0.5 lux @ F1.4
Effective Pixels	1920 x 1080 pixels
IR LED	24 pcs / distance up to 35 meters
Video Compression	H.264 / MPEG-4 / M-JPEG
Video Resolution	1080P mode
	H.264: 1080P / 1280 x 720 / 640 x 360 / 320 x 180
	M-JPEG: 1080P / 1280 x 720 / 640 x 360 / 320 x 180
	MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
	720P mode
	H.264: 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 80
	M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 80
	MPEG4: 640 x 360 / 320 x 180 / 160 x 80
Frame Rate	Up to 30fps for all resolutions
Image Setting	AE, AWB
	3D Noise reduction
	Digital WDR
	WDR
	Color, brightness, sharpness, contrast
	Mirror / Flip
	7 Privacy Masks
	Text, time and date overlay
	Overlay image on video
Streaming	Simultaneously multi-profile streaming
	Streaming over UDP, TCP, or HTTP
	M-JPEG streaming over HTTP (server push)
	Supports 3GPP mobile surveillance (MPEG4)
	Controllable frame rate and bandwidth
	Constant and variable bit rate (MPEG4 / H.264)
	ROI
Audio
Audio Streaming	2-way Audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps
Audio Compression	3GPP: AMR
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10Base-T
	IEEE 802.3u 100Base-TX
	IEEE 802.3ab 1000Base-T
	IEEE 802.3at Power over Ethernet Plus
Protocol	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	20 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration
Application Programming Interface	ONVIF Compliant
Alarm Triggers	Intelligent video motion detection and external input
Alarm Events	File upload via FTP, Samba to NAS, SD card or email
	Notification via email, HTTP, and TCP
	External output activation
	Audio alerting output
	Pre and post-alarm buffering
General
Power Requirements	IEEE 802.3at Class 4
Fan / Heater Control Temperature	Heater: On: 15 / Off: 25 degrees C
Fan / Heater Control Temperature	Fan: On: 35 / Off: 25 degrees C
Power Consumption	19.8W max.
Protection Class	IP66 classification with weatherproof feature
Operating Temperature	-40 ~ 75 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight (include LENS)	2.89kg
Dimensions (W x D x H)	145 x 406 x 109 mm
Emission	CE, FCC
Connectors	10/100/1000Mbps Ethernet, RJ-45
	DC power jack
	Terminal block for 1 alarm input and 1 output
	RS-485 interface for pan/tilt scanners control
	External Mic input
	Audio output
	BNC video output
	Micro SD/SDHC card (Max 32GB, Class 6)
	Factory default reset
