Açıklama

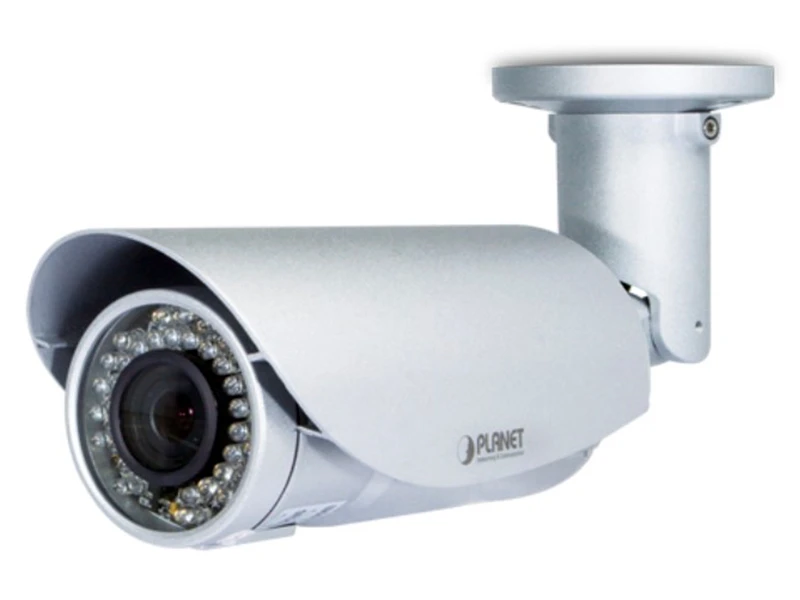

Planet ICA 3250V IP HD Bullet Kamera
Teknik Özellikler
| Camera |
| Image Device |
| 1/2.7" 2 mega-pixel CMOS sensor |
| Effective Pixels |
| 1920 x 1080 @ 30fps |
| Sensitivity |
| Color: 0.05 lux (AGC ON) |
| B / W: 0.01 lux (AGC ON) |
| Lens |
| 3 ~ 10.5mm vari-focal lens with auto iris and IR-cut filter/ F1.4 |
| View Angle |
| H: 34.89~106.72 degrees |
| V: 19.38~61.26 degrees |
| Video |
| Video Encoder |
| H.264 and Motion JPEG simultaneously |
| Video Profile |
| - H.264 1080P / 720P / VGA / QVGA / QCIF |
| - JPEG 1080P / 720P / VGA / QVGA / QCIF |
| - 3GPP VGA / QVGA / QCIF |
| Frame Rate |
| HD-1080P / 720P / VGA / QVGA / QCIF up to 30fps |
| Image Setting |
| Brightness, Contrast, Hue, Saturation, Sharpness, |
| AGC, Shutter Time, Sense-Up, WDR, Anti Fog, Lens Distortion Correction, Flip, Mirror, Noise reduction, White Balance, Day & Night adjustable |
| Streaming |
| Simultaneously multi-profile streaming |
| M-JPEG streaming over HTTP |
| Supports 3GPP mobile surveillance |
| Controllable frame rate and bandwidth |
| Constant and variable bit rate (H.264) |
| Audio |
| Audio Encoder |
| RTSP: G.711 / G.726 |
| 3GPP: AMR |
| Audio Streaming |
| Two-way |
| Microphone |
| Phone jack |
| Audio Output |
| Phone jack |
| Network and Configuration |
| Network Standard |
| IEEE 802.3 / IEEE 802.3u |
| Supported Protocols |
| IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, 802.1x, SNMP, DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP |
| Security |
| Password protection, user access log |
| Users |
| 10 simultaneous unicast users |
| Ethernet |
| 10/100M auto negotiation |
| System Integration |
| Application Programming Interface |
| Open API for software integration |
| SDK |
| Alarm Triggers |
| Intelligent video motion detection and external input |
| Motion Detection |
| 3-zone video motion detection |
| Alarm Events |
| File upload via FTP, email and SAMBA. |
| External output activation |
| Configurable pre/post alarm buffering |
| Video Buffer |
| Pre- 5sec and post- 10 sec alarm buffering |
| General |
| Power Supply |
| 12V DC external power adapter |
| PoE |
| IEEE 802.3af |
| PoE Consumption |
| 12V DC: 2.76W (IR Off); 4.80W (IR On) |
| PoE: 3.84W (IR Off); 6.72W (IR On) |
| Illumination LED |
| IR LEDs |
| IR LED |
| Infrared LED × 35pcs |
| IR Wavelength |
| 850nm |
| IR Distance |
| 25m |
| Power Consumption |
| IR on: 5.76W |
| IR off: 3.84W |
| Protection Class |
| IP-66 classification |
| Operating Temperature |
| -20 ~ 50 degrees C |
| Viewing System |
| OS |
| Windows® XP, Vista 32bit, Win7 32bit, Server 2003 |
| Browser |
| IE 8.0 or latter |
| Cell Phone |
| With 3GPP player |
| Video Player |
| VLC, Quick Time, Real Player |
| Software |
| Monitor/ Recording / Management |
| PLANET CV3P (2-ch Cam Viewer Three Pro Trail Version) |
| PLANET CV3L (64-ch Cam Viewer Three Lite Bundled Version) |
| Search & Installation |
| PLANET IP Installer |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
