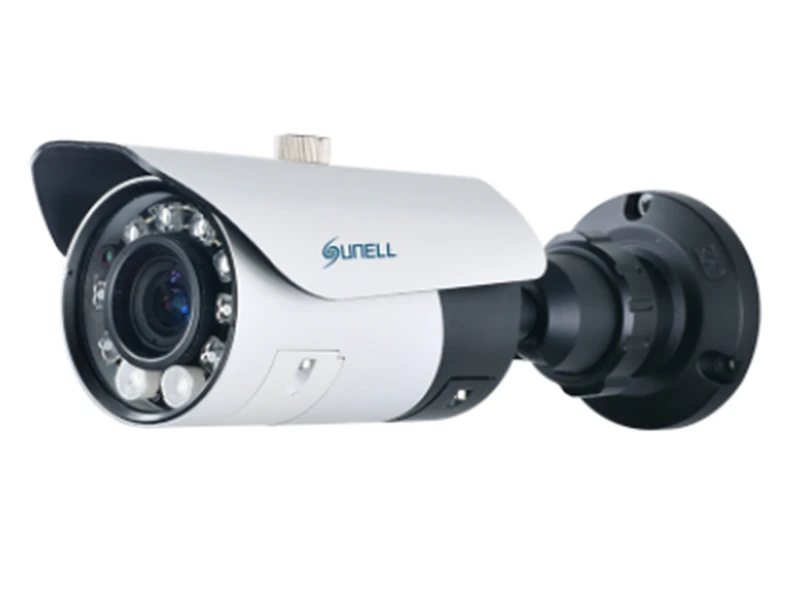

Sunell IPR56/40APDN IP Bullet Kamera

Özellikler

1/3" Progressive Scan CMOS
VF Lens 3.0-12mm
4MP Resolution
Triple Streams
Smart IR Up to 30m
Low bitrate ,Excellent low light performance
3D DNR, dWDR, ICR
ROI, Defog, HLC, Corridor mode, DIS
Multiple Video Analytics
IP67

Teknik Özellikler

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Min. illumination	Color:0.05Lux@(F1.2,AGC ON) ; B/W:0Lux@(IR LED ON)
Day & Night	ICR
Shutter Speed	1/5s-1/20000s
Auto Iris	Yes
Wide Dynamic Range	dWDR
Digital Noise Reduction	2D/3D
Lens	3.0-12mm
FOV	87°~ 35°
IR LED	10pcs
IR Range	Up to 30m
Video Compression	H.264 High/Main/Baseline Profile, MJPEG
Bit Rate (CBR/VBR)	Main stream:500kb-12000kb ;Sub stream 100kb-6000kb
Audio Compression	G.711 ,RAW_PCM
Max.Resolution	26881512/25601440/20fps,23041296/25fps,19201080/30fps
Stream	Stream1 26881512/25601440/23041296/19201080
Stream	Stream 2 720p to QVGA
Image Setting	Rotate Mode,Saturation,Brightness,Contrast,Sharpness
HLC	Yes
9/16 Corridor Mode	Yes
DIS	Auto
ROI	Yes
Defog	Yes
NETWORK
Network Protocols	IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast.
Alarm Trigger	Default Base:Motion Detection,Line Crossing,Tamper, Area Instrusion, Network disconnect,Disk alarm;
	Optional Advance: Motion Detection,Line Crossing,Tamper, Area Instrusion, Camera Move,Dwell,Multiple Dwell,Retrograde Detection,Object Left,Object Remove,Abnormal Speed,Illegal Parking,Network disconnect,Disk alarm
RTSP Video	Standard RFC2326, Support QuickTime / VLC Player.
Security	User security authentication, Reset, Hardware Watch Dog
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand)
System Compatibility	Onvif
INTERFACE
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio I/O	1ch Audio In,1ch Audio Out
Alarm I/O	N/A
RS485	N/A
BNC Output	Yes
Reset Button	Yes
Edge Storage	Micro SD/SDHC/SDXC slot ,Max 64GB
GENERAL
Power Supply	DC12V/POE
Power Consumption	3W(IR LED OFF)；5.5W（IR LED ON）
OperatingTemperature	Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
OperatingTemperature	Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F)
Operating Humidity	0% - 90% RH
Ingress Protection	IP67
Approvals	CE / FCC
Product Dimensions	φ80.3×264.5mm
