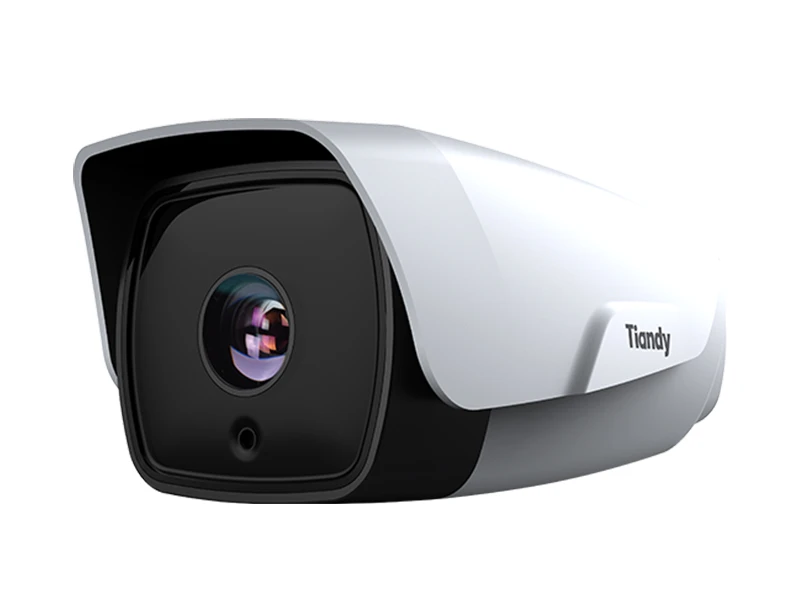

Tiandy TC NC294X IP Bullet Kamera
Özellikler
- Super Starlight Ultra Low Light 0.0004lux
- Up To 1080P, 1920×1080@30fps
- H.265/H.264 HP/MP/BP/M-JPEG Codec
- Min. Illumination Color: 0.0008 Lux; IR Free Design
- Mechanical WDR 140dB
- VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Crowd/Audio Abnormal Detection/Video Abnormal Detection
- NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
- Interface Audio in/out 1/1,Alarm in/out 1/0, MicroSD Card Slot, up to 128GB, USB Storage up to 128GB ,Reset Button
- TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V), IP67
- Operating Conditions -35℃～60℃, 0～95% RHG
- CE, FCC
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Core Processor | ARM9 Architecture |
| Operating System | Embedded Linux |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.5 Lux @(F1.2, AGC ON) |
| B/W: 0.25Lux @(F1.2, AGC ON); 0 Lux with IR | |
| Shutter Time | 1s to 1/100,000s |
| Lens | 4mm, Angle of View: 89.8° |
| Lens Mount | φ12 |
| Auto Iris | N/A |
| Day& Night | IR Cut Filter with Auto Switch |
| WDR | 100 dB |
| DNR | 3D DNR |
| S/N Ratio | >60dB |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM |
| Audio Bit Rate | G711 8KHz, 64kbps |
| ADPCM 8KHz, 32kbps | |
| Image | |
| Max. Image Resolution | 1920x1080 |
| Frame Rate | 50Hz: 25fps (1920 × 1080), 25fps (1280 × 720) |
| 60Hz: 30fps (1920 × 1080), 30fps (1280 × 720) | |
| Triple Stream | Mainstream:1080P(1920*1080) |
| Substream:D1(704*576) | |
| 3rd stream:CIF(352*288) | |
| Image Settings | Brightness, Saturation, Contrast,Flip Mode Adjustable by Client Software or Web Browser |
| HLC | Y |
| Smart Defog | Y |
| Corridor Format | Y, Available for 720P and Above |
| EIS | Y |
| ROI | 4 Zones |
| Privacy Mask | 4 Zones |
| Picture Overlay | 200 × 200, BMP 24bit, Zone Configurable |
| OSD | Size:16×16, 32×32, 24×24, 48×48, 64×64, 96×96 |
| Letters, Week, Date, Time, Total 5 Regions | |
| Network | |
| Browser | CHROME V45 or lower, IE, FIREFOX |
| Network Storage | FTP |
| NTP | Y |
| ANR | Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR) |
| Video Analytics | Tripwire/Perimeter |
| Alarm Trigger | Motion Detection/IP Conflict/MAC Conflict/Port Alarm/Mask Alarm |
| Protocols | IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/DNS/DDNS/NTP/RTSP |
| /TCP/UDP/DHCP/PPPoE/HTTPS/ARP/RTP/QoS/MULITCAST/ICMP/IGMP | |
| User Permission | 4 Level/8 Users |
| Remote Connection | 3 Users Access at the Same Time |
| NTP | Y |
| System Compatibility | ONVIF (Profile S), SDK |
| Interface | |
| Audio Input | N/A |
| Audio Output | N/A |
| Communication Interface | 1-ch RJ45 10M / 100M Ethernet Interface |
| Alarm Input | N/A |
| Alarm Output | N/A |
| Video Output | N/A |
| General | |
| Language | English,Simplified Chinese |
| Operating Conditions | -35℃～60℃(IR OFF) /-35℃～40℃(IR ON), 0～95% RHG |
| Power Supply | DC 12V±10%,PoE (802.3af) |
| Power Consumption | Max. 5W(IR OFF) (ICR Instant Switch 8.5W) |
| Max. 7W(IR ON) | |
| Circuit Protection | TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V) |
| Impact Protection | IP67 |
| IR Range | 20m |
| IR LEDs | 1pcs Array |
| Dimensions | 178mm×100mm×94mm |
| Weight | 0.5KG (IP Camera Only); 0.7KG (with Packing Box) |
| ANR: | Auto store video in SD card when NVR disconnected, and upload video to |
| NVR when resumed connection(Only Support Tiandy ANR NVR) | |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
