Açıklama

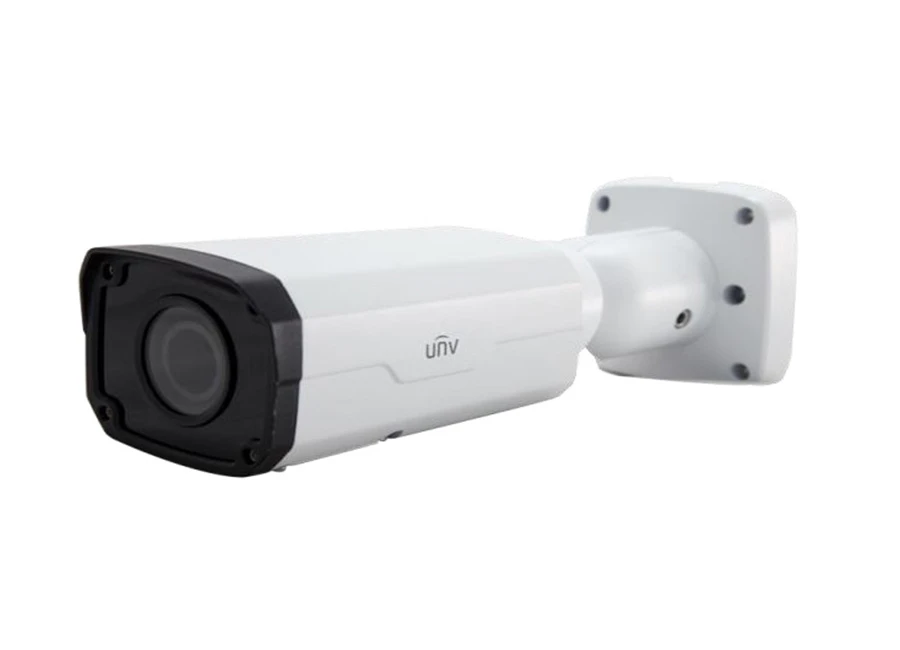

Uniview IPC2322EBR P IP HD Bullet Kamera

Name: Uniview IPC2322EBR P IP HD Bullet Kamera
Brand: Uniview

Çözünürlük : 2MP (1080P)

Irled : Var

Depolama : Var

Camera
Sensor	1/2.7", 2 Megapixel, progressive scan CMOS
Lens	2.8~12 mm@F1.4
Angle of View(H)	90° ~ 28°
Zoom/Focus	Manual
Shutter	Auto/Manual, 1/6~1/8000s
Min. Illumination	Colour: 0.06 Lux (F1.4, 50IRE)
Min. Illumination	Black & White: 0.03Lux (F1.4, 50IRE)
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
Video
Max. Resolution	1920 × 1080
Video Compression	H.264,MJPEG
Frame Rate	1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
Audio
Audio Compression	G.711
Two-way audio	Supported
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP
Compatible Integration	ONVIF, API
Interface
Audio I/O	Audio cable
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	1.Oca
Network	10M/100M Base-TX Ethernet
General
Power	12 V DC, or PoE (IEEE802.3 af)
Power	Power consumption: Max 8W
Dimensions (L × W × H)	253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)
Material	Cast aluminum
Weight	0.58kg (1.28lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP66
