Açıklama

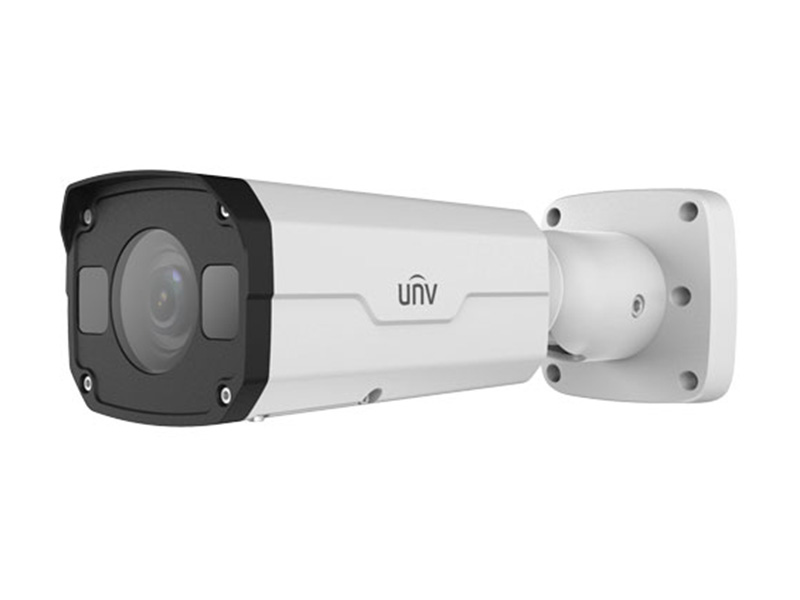

Uniview IPC2322EBR5 DUPZ C IP IR Bullet Kamera
Özellikler
- 1/2.8",progressive scan,CMOS
- 1920×1080 resolution, 30fps
- 2.7~13.5mm Optical Zoom & Auto Focus
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- Smart IR, up to 50m IR distance
- Ultra 265,H.265,2D/3D DNR, ROI,Corridor Mode,ONVIF
- DC12V,PoE.Wide voltage range of 25%
- IP67
Teknik Özellikler
| Camera | |
| Sensor | 1/2.8", progressive scan, 2.0megapixel, CMOS |
| Lens | 2.7~13.5mm, AF automatic focusing and motorized zoom lens |
| Angle of View(H) | 121.36°~ 33.51°(H) |
| Shutter | Auto/Manual, shutter time: 1~1/100000 s |
| Minimum Illumination | Colour: 0.0005 Lux (F1.2, AGC ON) |
| 0 Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52 dB |
| IR Range | Up to 50m (164 ft) IR range |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080):Max. 30 fps; |
| Sub Stream:2MP (1920×1080):Max. 30fps; | |
| Third Stream: D1(720×576):Max. 30fps | |
| 9:16 Corridor Mode | Supported |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection, Defocus ,Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1.Oca |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 10W | |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm(9.98” × 3.4” × 2.8”) |
| Weight | 1.0kg (2.2lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~ 90% RH(non-condensing) |
| Ingress Protection | IP67 |
Uniview IPC2322EBR5 DUPZ C IP IR Bullet Kamera Pdf Dosyası784.68 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
