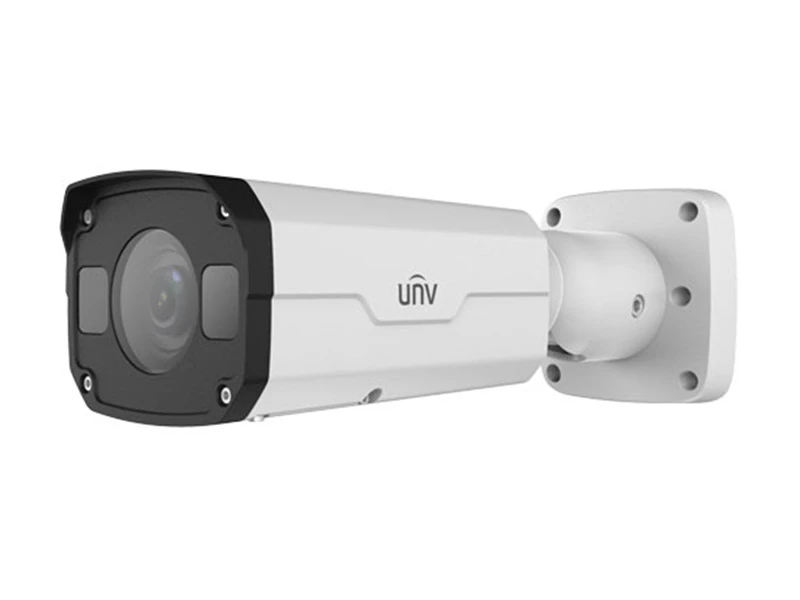

Uniview IPC2324LBR3 SP D IP IR Bullet Kamera

Name: Uniview IPC2324LBR3 SP D IP IR Bullet Kamera
Brand: Uniview

Optics

Compression

Network

Structure

Depolama : Var

Çözünürlük : 4MP

Irled : Var

	IPC2324LBR3-SP-D				IPC2324LBR3-SPZ28-D
Camera
Sensor	1/3", 4.0 megapixel,progressive scan, CMOS
Lens	2.8~12 mm, manual,zoom lens				2.8~12mm,motorized zoom lens
DORI Distance	Lens	Detect(m)		Observe(m)		Recognize(m)	Identify(m)
	2.8mm	63		25.2		12.6	6.4
	12mm	270		17.4		23.2	27.1
Angle of View (H)	91.0°~27°
Angle of View (V)	54.4°~13.7°
Angle of View (O)	118.3°~33.2°
Adjustment angle	Pan: °~360°		Tilt: °~90°			Rotate: 0°~360°
Shutter	Auto/Manual, 1/6~1/100000 s
Minimum Illumination	Colour: 0.02 Lux (F2.0, AGC ON)
	0 Lux with IR on
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile,High Profile
Frame Rate	Main Stream:4MP(2048*1520): Max. 20fps;
	Sub Stream: 720P(1280*720):Max. 30 fps;
	Third Stream: D1(704×576):Max. 30fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SL,SNMP
Compatible Integration	ONVIF(Profile S), API
Interface
Network	1 RJ45 100M Base-TXEthernet
General
Power	12 V DC±25%, PoE(IEEE802.3 af)
	Power consumption:Max 7.8W
Dimensions (L × W × H)	240.1 ×86.4 ×75.7 mm(9.4” × 3.4” × 3.0”)
Weight	0.58kg (1.28lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F),Humidity :10%~90% RH(non condensing)
Ingress Protection	IP67
