Açıklama

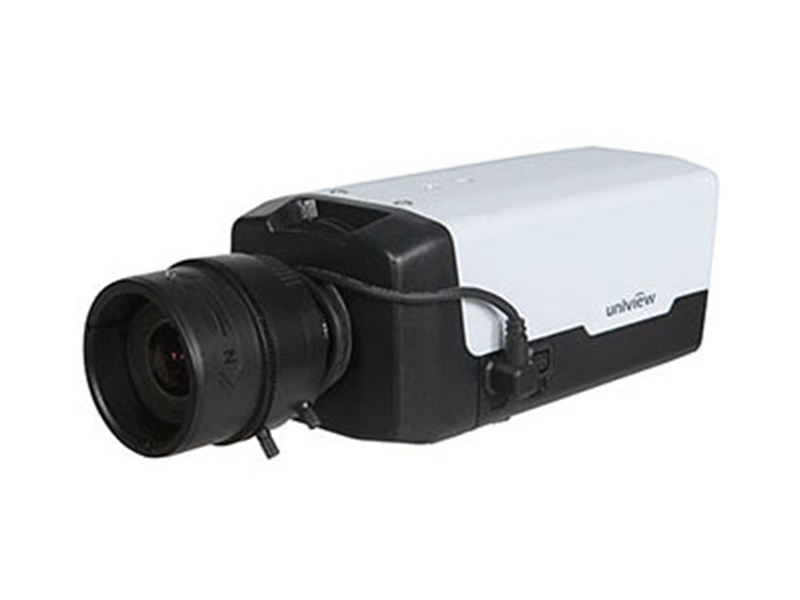

Uniview IPC541E DLC IP Box Kamera
Özellikler
Optics
- Day/night functionality
- Lowlight surveillance
- 3D DNR(Digital Noise Reduction)
- Up to 120dB WDR(Wide Dynamic Range)
Network
- ONVIF Conformance
Teknik Özellikler
| IPC541E-DLC | |
| Camera | |
| Sensor | 1/3", 1.3 megapixel, progressive scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Min. Illumination | Colour: 0.02 Lux (F1.2, 50IRE) 0 Lux with IR |
| Lens Mount | C/CS |
| DC-Iris | DC 4V (4 Pins) |
| Motor Zoom/focus | DC 5V (4 Pins) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >50dB |
| WDR | 120 dB |
| Video | |
| Max. Resolution | 1280 × 960 |
| Video Compression | H.264, MPEG |
| Frame Rate | 960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Defog | Digital |
| HLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Network | |
| Protocols | L2TP, IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | Audio cable |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2.1 |
| Serial Port | 1 RS485 (support Pelco-D/P) |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC, 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: 4.8 W (6.8W with ICR on) | |
| Dimensions (L × W × H) | 151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) |
| Weight | 0.48 kg (1.1 lb) |
| Working Environment | –20°C ~ +60°C (-4°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
Teknik Kısa
Çözünürlük : 1.3MP
Depolama : Var
