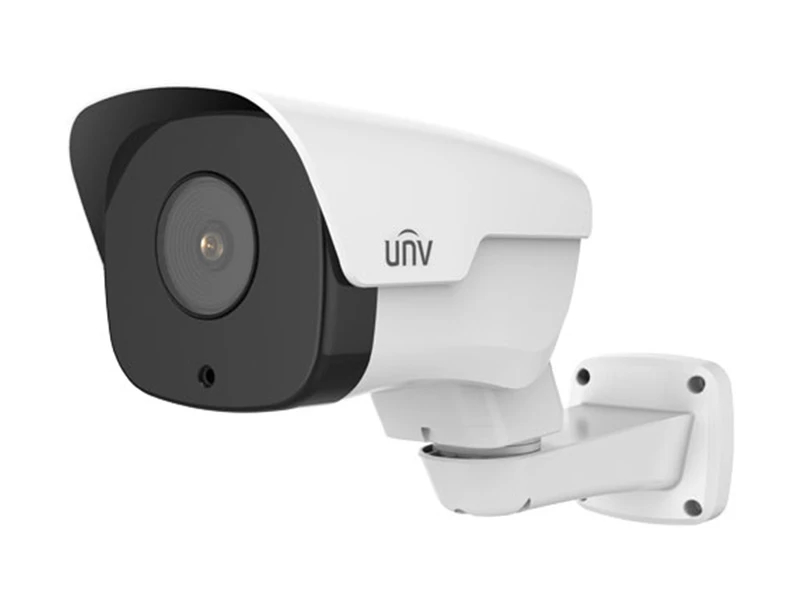

Uniview IPC744SR5 PF40 32G IP HD Bullet Kamera
Özellikler
- Precision motor with accuracy deviation less than 0.1 degree.
- Pan range 250°, tilt range -50° to 50°
- Pan speed up to 30°/s, tilt speed up to 10°/s
- Smart IR, up to 50m (164 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- Day/night functionality
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- Customized OSD
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -35°C to +60°C (-31°F to +140°F)
- Wide voltage range of ±25%
- IP66
Teknik Özellikler
| Camera | |
| Sensor | 1/3", 4 megapixel, progressive scan CMOS |
| Lens | 4.0mm@F1.8 |
| Shutter | Auto/Manual, 1/6s ~ 1/100000s |
| Minimum Illumination | Color: 0.02 Lu× (F1.8, AGC ON) |
| 0 Lux with IR on | |
| IR Range | 50m (164 ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >55dB |
| WDR | Digital |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 2592×1520 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps |
| 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps | |
| Video Streaming | Triple streams |
| ROI | Supported |
| HLC | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Supported |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Storage | |
| Edge Storage | Built-in 32 GB eMMC |
| Network | |
| Protocol | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatibility | ONVIF, API |
| Structure | |
| Pan Range | 250° |
| Pan Speed | 0.1°/s ~ 15°/s |
| Preset speed: 15°/s | |
| Tilt Range | -50° ~ 50° |
| Tilt Speed | 0.1°/s ~5°/s |
| Preset speed: 5°/s | |
| Number of Presets | 400 |
| Patrol | Up to 16 patrols, up to 32 presets per patrol |
| Note: The total number of patrols and patterns is 16. | |
| Interface | |
| Audio I/O | 3.5 mm connector |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2/1 |
| Network | 10M/100M adaptive Ethernet |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3at) |
| Power consumption: Max. 17.23 W | |
| Dimensions | 357 mm × 106 mm × 194 mm (14.1" × 4.2" × 7.7") |
| Weight | 1.16 kg (2.6 lb) |
| Working Environment | –35°C to +60°C (-31°F to 140°F), ≤ 95% RH |
| Ingress Protection | IP66 |
Uniview IPC744SR5 PF40 32G IP HD Bullet Kamera Pdf Dosyası486.44 KB
Teknik Kısa
Çözünürlük : 4MP
Irled : Var
