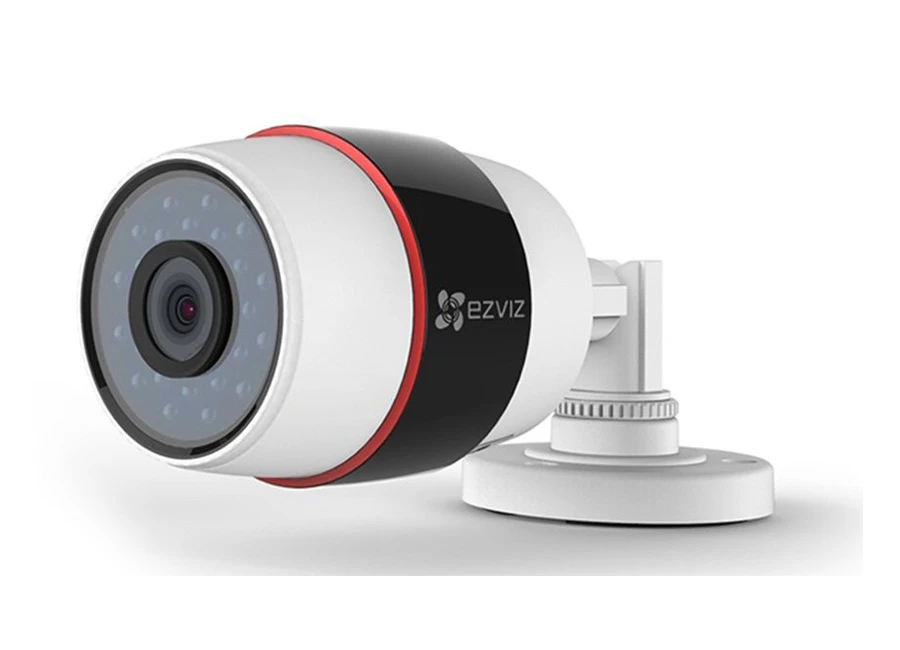

EZVIZ CS CV210 A0 52(W)(E)FR IP Bullet Kamera
Özellikler
- Full HD 1080p Video
- Supports 2.4GHzWi-Fi
- True Day/Night, Auto Switch, Infrared Night Vision (up to 30 meters)
- True Day/Night, IP66 Dust and Water Protection
- Optional Wi-Fi and PoE(Power Over Ethernet)
- Supports MicroSD Card(Up to 128G)
Teknik Özellikler
| Model | CS-CV210-A0-52(W)(E)FR(4mm) |
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Minimum Illumination | 0.02 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F2.0, Horizontal angle: 90°, Diagonal angle 107.5° |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Max 120db WDR |
| Compression | |
| Video Compression | H.264 |
| H.264 Type | Main profile |
| Video Bit Rate | HD, Balanced and Smooth. Adaptive bit rate |
| Image | |
| Max. Resolution | 1920×1080 |
| Image setting | Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio) |
| BLC | Support |
| Network | |
| Storage | Support Micro SD card (Max. 128G) |
| Smart Alarm | Motion detection |
| Wi-Fi Pairing | SmartConfig (Wi-Fi One-Key Configuration) |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| General Features | Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Minimum Network Requirements | 2M |
| Wireless Specifications (for Wi-Fi-supported devices) | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps |
| General | |
| Operating Conditions | -30°C ~ 60°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V±10% Or PoE (Power over Ethernet) (Optional) |
| Power Consumption | Max. 5W (ICR 7W) |
| IP Grade | IP66 |
| IR Range | MAX. 30 meters |
| Product Dimensions | 176.3mm × 83.5mm × 69.8mm |
| Packaging Dimensions | 252mm x 92mm x 90mm |
| Weight | 331g |
EZVIZ CS CV210 A0 52(W)(E)FR IP Bullet Kamera Pdf Dosyası3.61 MB
Teknik Kısa
Irled : Var
Çözünürlük : 2MP (1080P)
Depolama : Var
Ses : Var
