Açıklama

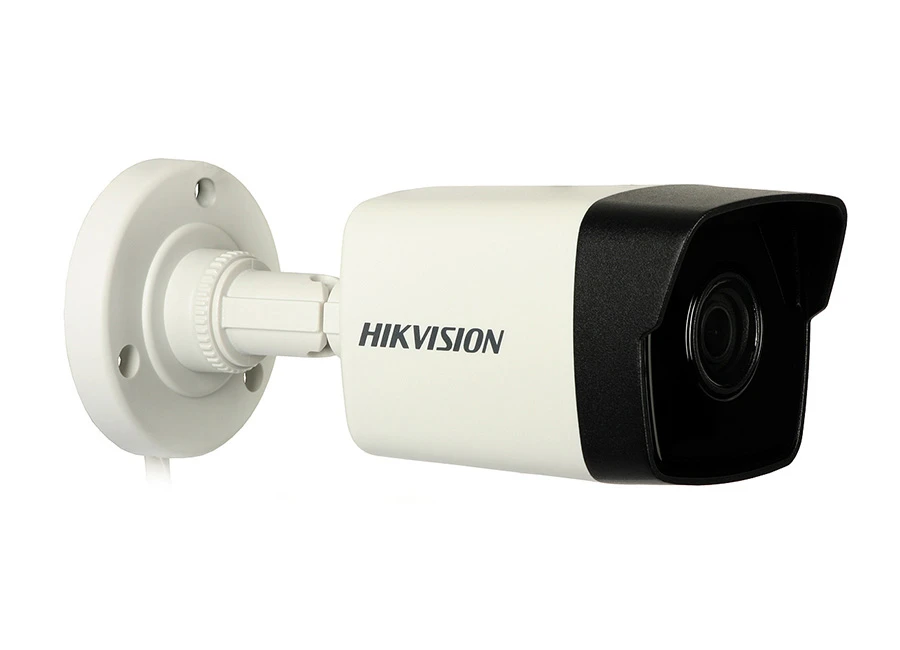

Hikvision DS 2CD1023G0E I IP Mini Bullet Kamera
Özellikler
- Resolution: 2 MP (1920 x 1080)
- 2.8 mm / 103° lens
- IR illuminator with range up to 30 m (EXIR 2.0)
- H.265+/H.265/H.264+/H.264/MJPEG video compression
- 3D-DNR, DWDR, BLC video processing functions
- Access via Hik-Connect app
- Region of interest (ROI)
- Mechanically switching IR filter
- IP67 rating
- Power: 12 VDC or PoE (802.3af)
Teknik Özellikler
| Name | HIKVISION DS-2CD1023G0-I |
| Video system | IP |
| Housing type | Compact (bullet) |
| Direction adjustment | 3-axis |
| Image sensor | 1/3" Progressive Scan CMOS |
| Sensitivity | 0.028 lx @ (F2.0, AGC ON), |
| 0 lx in IR mode | |
| Resolution | 1920 x 1080 pixels |
| Frame rate | 25 fps at at 1920 x 1080 and lower resolutions |
| Lens | 2.8 mm @ F2.0 / 103o |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Number of video streams | 2 |
| Bit rate range | 32 kbps - 8 Mbps |
| IR range | up to 30 m |
| Video processing | 3D-DNR, DWDR, BLC |
| Mechanically switching IR filter | Yes |
| Gain | Automatic/Preset |
| Alarm events | Motion detection, video tampering |
| Intelligent image analysis | Not implemented |
| Corridor mode | No |
| ROI | 1 region |
| ANR | No |
| Recording | NAS (NFS/SMB/CIFS), FTP (screenshots) |
| Network interface | RJ-45 10/100Base-T |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, |
| PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| Supported standards | ONVIF (S, G profiles), PSIA, CGI, ISAPI |
| Housing material | Aluminum alloy, plastics |
| IP rating | IP67 |
| Power | 12 VDC ± 25% |
| PoE IEEE 802.3af | |
| Power consumption | 5 W / 7 W (PoE) |
| Operating temperature range | -30°C ...+50°C |
| Dimensions | 69 x 66 x 172 mm |
| Weight | 0.28 kg |
Hikvision DS 2CD1023G0E I IP Mini Bullet Kamera Pdf Dosyası1019.02 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
