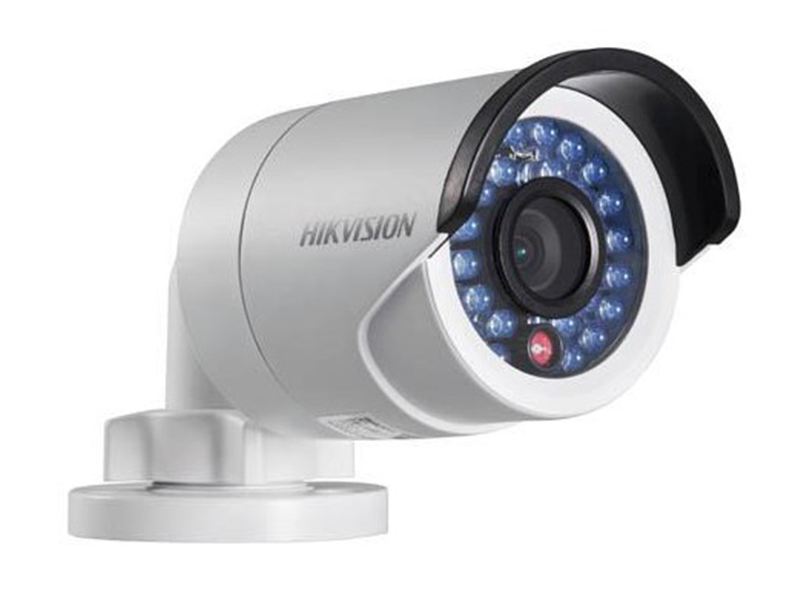

Hikvision DS 2CD2020 I IP Bullet Kamera
Teknik Özellikler
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR | |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0, Angle of view: 85° |
| (6mm optional) | |
| Lens Kurulumu | M12 |
| Auto Iris | DC drive |
| Day& Night | IR cut filter with auto switch |
| Geniş Dinamik Aralık | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Sıkıştırma | H.264/MJPEG |
| Video Bit Hızı | 32Kbps~8Mbps |
| Çift Akış | Yes |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Çerçeve Hızı | 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) |
| 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | support |
| 3D DNR | support |
| Network | |
| Ağ Depolama | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering, Anonymous access | |
| Interface | |
| İletişim Arayüzü | 1 RJ45 10M / 100M Ethernet interface |
| Reset Butonu | Yes |
| General | |
| Çalışma Sıcaklığı | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi | Max. 5.2W |
| Weather Proof | IP67 |
| IR Aralık | Up to 30m |
| Boyutlar | 70×154.2×60.5 mm (2.8” × 6.2” × 2.4”) |
| Ağırlık | 500g (1.1 lbs) |
Hikvision DS 2CD2020 I IP Bullet Kamera Pdf Dosyası468.55 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
