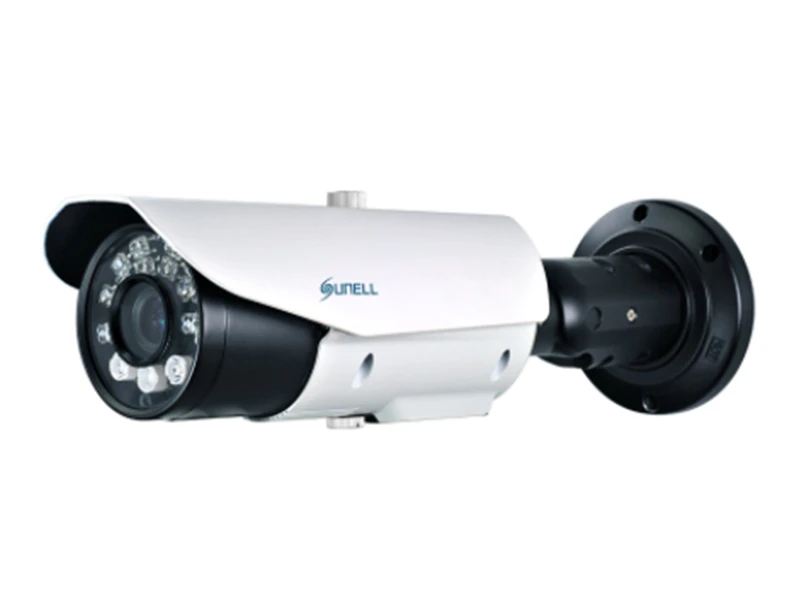

Sunell IPR56/20AKDN/T/Z IP Bullet Kamera
Özellikler
Teknik Özellikler
| CAMERA | |
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Min. illumination | Color 0.01Lux;IR ON 0 Lux |
| Day & Night | ICR |
| Shutter Speed | 1/5s-1/20000s |
| Auto Iris | Yes |
| Wide Dynamic Range | dWDR |
| Digital Noise Reduction | 2D/3D |
| Lens | 3-12mm Motorized Lens | 7-22mm Motorized Lens |
| FOV | 87.8° ~ 31.7° | 40.7° ~ 16.8° |
| IR LED | 17pcs |
| IR Range | Up to 40m | Up to 70m |
| IMAGE | |
| Video Compression | H.264 High/Main/Baseline Profile, MJPEG |
| Bit Rate (CBR/VBR) | Main stream:500kb-12000kb ;Sub stream 100kb-6000kb |
| Audio Compression | G.711 ,RAW_PCM |
| Max. Resolution | 1920x1080/30fps |
| HLC | Yes |
| 9/16 Corridor Mode | Yes |
| DIS | Auto |
| ROI | Yes |
| Defog | Yes |
| License Plate Recognition | |
| LPR Setting | Recognition area & Country Configurable， Black/White List Configuration |
| Info. Overlay | Capture time, plate info. |
| Integration | ONVIF |
| NETWORK | |
| Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
| Security | User security authentication, Reset, Hardware WatchDog |
| Web Language | English, Chinese |
| INTERFACE | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio I/O | 1ch Audio In,1ch Audio Out |
| Alarm I/O | 1ch Alarm In,1ch Alarm Out |
| RS485 | Yes |
| CVBS Output | N/A |
| Reset Button | Yes |
| Edge Storage | Micro SD/SDHC/SDXC slot ,Max 64GB |
| GENERAL | |
| Power Supply | DC12V/POE |
| Power Consumption | 5W(IR LED OFF)； 8W（ IR LED ON） |
| Operating Temperature | Starting Temperature: -30 ° C – 60 ° C (-22 ° F – 140 ° F) |
| Working Temperature:-40 ° C – 60 ° C (-40 ° F – 140 ° F) | |
| Operating Humidity | 0% - 90% RH |
| Ingress Protection | IP67,IK10 optional |
| Approvals | CE / FCC |
| Product Dimensions | φ110× 377mm |
| Product Weight | 1680g |
Sunell IPR56 20AKDN T Z IP Bullet Kamera Pdf Dosyası395.44 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
Irled : Var
