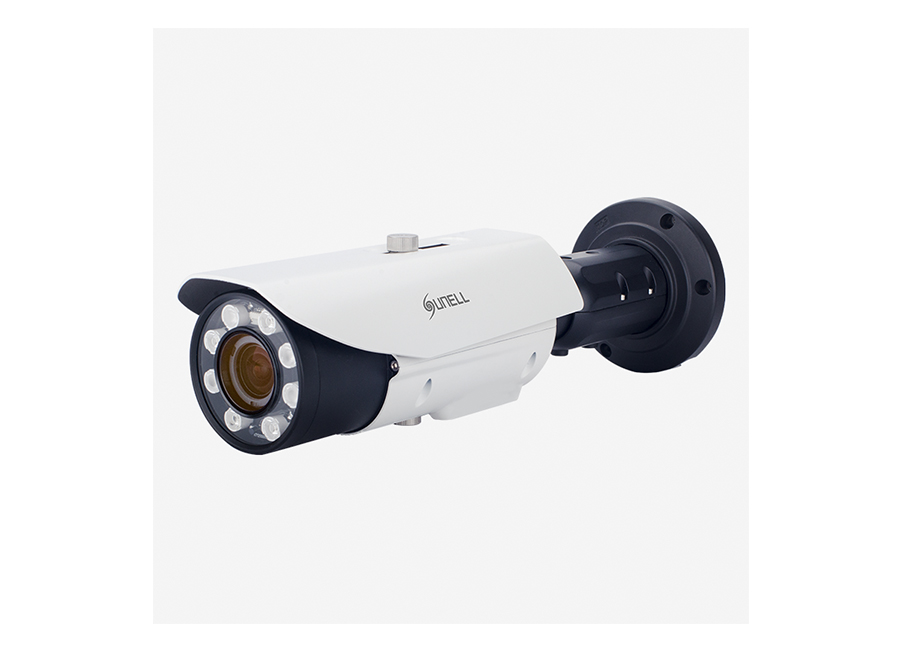

Sunell SN IPR57/20AKDN/T/Z IP Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | ||
| Image Sensor | 1/2.8” Progressive Scan CMOS | |
| Effective Pixels | 1920(H)×1080(V) | |
| Electronic Shutter | 1/5-1/20,000s | |
| Min. illumination | Color: 0.001Lux @(F1.2,AGC ON) | |
| B/W: 0Lux @(IR LED ON) | ||
| S/N Ratio | 55dB | |
| Day/Night | ICR | |
| Wide Dynamic | Ture WDR >120dB | |
| Range | ||
| IR Range | Up to 60m | |
| IR On/Off Control | Auto/ Manual | |
| IR LEDs | 8pcs | |
| Pan/Tilt/Rotation Range | Pan: 0˚~360˚, Tilt: 0˚~90˚, Rotation: 0˚~360˚ | |
| Lens | ||
| Lens Type | Motorized | |
| Iris | Auto Iris | |
| Focal Length | 2.7~12mm | 7~22mm |
| F Number | F1.3 | F1.4 |
| Angle of View | 105°~ 32° | 40.7°~ 16.8° |
| Focus Control | Motorized | |
| Video | ||
| Compression | H.265, H.264, MJPEG | |
| Max. Resolution | 1080P(1920×1080) | |
| Streaming Capability | 3 Streams | |
| Stream / | Stream1:1920×1080/1280×720 @25/30fps | |
| Frame Rate | Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps | |
| Stream3: VGA/CIF/QVGA @25/30fps | ||
| Bit Rate Control | CBR/VBR | |
| Bit Rate | Stream1: 200kbps~12000kbps | |
| Stream2: 100kbps~6000kbps | ||
| Stream3: 100kbps~6000kbps | ||
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (>120dB) | |
| White Balance | Support | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Mirror | Support | |
| Aisle Mode | Support | |
| Region of Interest | Support | |
| Motion Detection | Support | |
| Privacy Masking | Support | |
| Audio | ||
| Compression | G.711 ,RAW_PCM | |
| Bit Rate | 64kbps (G.711), 128kps (RAW_PCM) | |
| Network | ||
| Protocols: | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP | |
| Interoperability | ONVIF, SDK, CGI | |
| Streaming Method | Unicast | |
| Max. User Access | 10 Users | |
| Web Viewer | <IE11, Chrome, Firefox | |
| Management Software | SunView | |
| Smart Phone | IOS, Android | |
| Intelligence | ||
| Intelligent Video | Embed ANPR, Marx recognition speed of 50Km/h, 1000 whitelist & black list, FTP image upload. | |
| Interface | ||
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector | |
| Audio | 1ch Input, 1ch Output | |
| Alarm | 1ch Output | |
| RS485 | Support | |
| CVBS Output | N/A | |
| Reset Button | Support | |
| Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G | |
| Electrical | ||
| Power Supply | DC12V/POE (IEEE 802.3af) | |
| Power Consumption | 4W(IR LED OFF), 8W（IR LED ON） | |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F ) | |
| Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) | ||
| Operating Humidity | Less than 90% RH | |
| Ingress Protection | IP67 (IK10 optional) | |
| Certifications | CE / FCC | |
| Casing | Metal | |
| Dimensions | φ110×375.5mm | |
| Net Weight | 1680g | |
Sunell SN IPR57/20AKDN/T/Z IP Bullet Kamera Pdf Dosyası542.98 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Depolama : Var
Irled : Var
