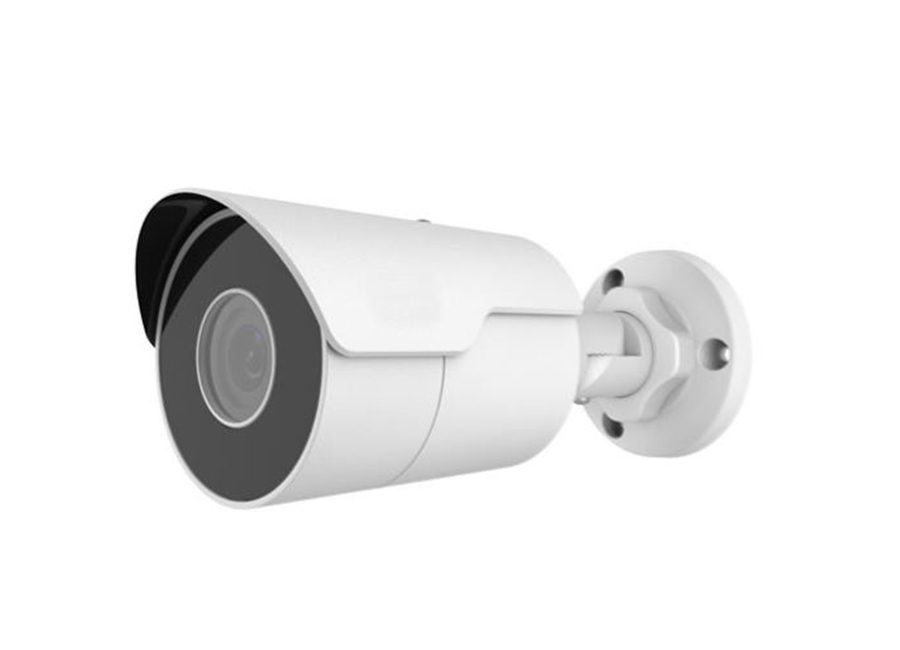

DCODE Exclusive DEC3128SR3 DPF40 IP Mini Bullet Kamera

Özellikler

Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Day/night functionality
Up to 120 dB WDR (Wide Dynamic Range
Ultra 265,H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor format
ONVIF Conformance
Wide temperature range: -30°C to 60°C (-22°F to 140°F)
Wide voltage range of ±25%
IP67
3-Axis

Teknik Özellikler

DEC3128SR3-DPF40				DEC3128SR3-DPF60
Camera
Sensor	1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens	4.0mm@ F2.0			6.0mm@ F2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	4.0mm	72		28.8	14.4		7.2
	6.0mm	108		43.2	21.6		10.8
Angle of View(H)	91.6°			54.2°
Angle of view(V)	47.2°			32.5°
Angle of view(O)	112.7°			66.7°
Adjustment Range	Pan: 0°~360°		Tilt: 0° ~ 90°			Rotation: 0° ~ 360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.001 Lux (F2.0, AGC ON)
	0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:8MP (3840*2160): Max. 15 fps，
	Sub Stream:1080P (1920*1080): Max. 30 fps;
	Third Stream:D1(720*576) : Max. 30 fps
9:16 Corridor Mode	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration	ONVIF(Profile S, Profile T), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max 8 W
Dimensions (L × W × H)	191.3×72.6×70.9mm (7.5”×2.9”×2.8”)
Weight	0.5 kg (1.1 lb)
Working Environment	-30℃ ~ 60℃ (-22°F ~ 140°F), Humidity : 10%~90% RH(non-condensing)
Ingress Protection	IP67
