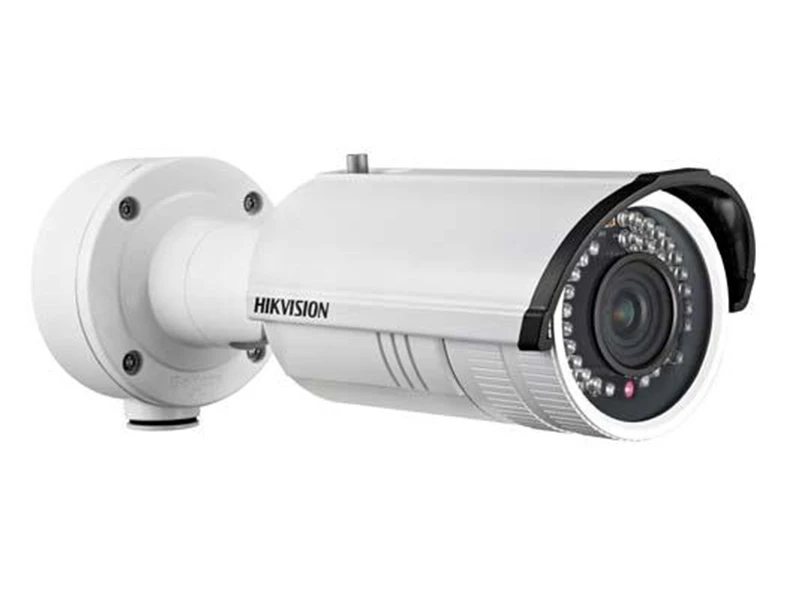

Hikvision DS 2CD4224F IZHS IP HD IR Bullet Kamera

Özellikler

1/2.8" progressive scan CMOS
Up to 1920 × 1080 resolution
3D DNR, DWDR
Smart Codec
Smart IR
Smart Focus: Motorized VF lens(-Z)
Smart VQD
Smart Face Detection
Smart Audio Detection(-S)
Intrusion Detection
Defog, EIS, BLC, HLC
built-in heater(-H)

Teknik Özellikler

Kamera
Görüntü Sensörü	1/2.8" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	0.01 Lux @ (F1.2, AGC ON), lux with IR
Minimum Aydınlatma	0.014 Lux @ (F1.4, AGC ON), lux with IR
Objektif Hızı	1 s to 1/100,000 s
Lens	No -Z: 2.8-12mm @ F1.4, angle of view: 113-33.8°
	8-20mm @ F1.6, angle of view: 40°-16.5°(optional)
	-Z: 2.8-12mm @ F1.4, angle of view: 113-33.8°
	8-32mm @ F1.4, angle of view: 31.2°-10.2°(optional)
Lens Kurulumu	φ14
Gündüz & Gece	IR cut filter with auto switch
Geniş Dinamik Aralık	Digital WDR
Dijtal Gürültü Azaltma:	3D DNR
Odak	Motorized VF lens(-Z model)
Sıkıştırma Standardı
Video Sıkıştırma	H.264/MPEG4/MJPEG
Video Bit Hızı	32Kbps~16Mbps
Ses Sıkıştırma	-S: G.711/G.722.1/G.726/MP2L2
Üçüncü Akım	Yes
Görüntü
Maksimum Çözünürlük	1920 x 1080
Çerçeve Hızı	50Hz: 25fps (1920 × 1080) 25fps (1280 × 960), 25fps (1280 × 720)
Çerçeve Hızı	60Hz: 30fps (1920 × 1080) 30fps (1280 × 960), 30fps (1280 × 720)
Üçüncül Akış	Independent with Main Stream and Sub Stream, up to
	50Hz: 25fps(1920 × 1080)
	60Hz: 30fps (1920 × 1080)
Görüntü Ayarlama	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC	Yes, zone configurable
HLC	Support
Akıllı Buğu Giderme	Support
EIS	Support
EIS
ROI	Support
Resim Yerleşimi	128 × 128, BMP 24bit, zone configurable
Ağ
Ağ Depolama	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Line crossing detection, Intrusion detection, Defocus detection, Scene change detection Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protokoller	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
Protokoller	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Güvenlik	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
Sistem Uyumluluğu	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Arayüzü
İletişim Arayüzü	1 RJ45 10M / 100M Ethernet interface
Dahili Depolama	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Reset Butonu	Yes
Genel
Çalışma Sıcaklığı	-30 °C – 60 °C (-22 °F – 140 °F)
	Humidity 95% or less (non-condensing)
	-H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on
Güç Kaynağı	12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi	Max. 11 W
GÜç Tüketimi	-Z/-H: Max. 12W
Weather Proof:	IP66
IR Aralık	2.8-12mm: Approx. 20 to 30 meters;
IR Aralık	8-20mm/8-32mm: Approx. 50 to 80 meters
Boyutlar	98 × 105 × 328.8 mm (3.86” × 4.13” × 12.94”)
Ağırlık	2000 g (4.41 lbs)
NOT	* "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
